Century Spring

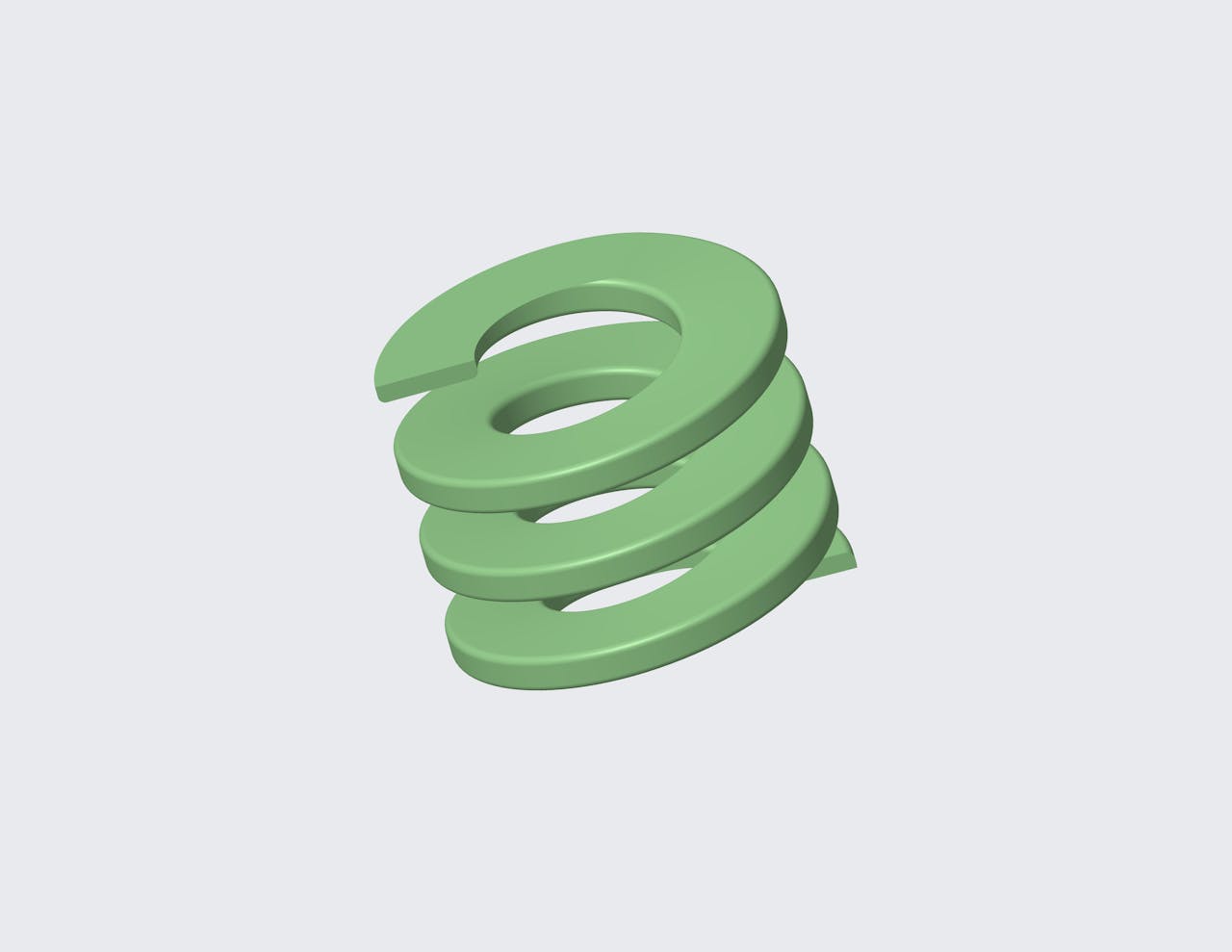

D-302504CS - 25 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 25 Millimeter long and has a 53.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.2953 in
Deflection 2 0.3937 in
Deflection 3 0.4921 in
Display Name D-302504
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 0.9843 in
Hole Size 0.9843 in
Load 1 90.8273 lbf
Load 2 121.1781 lbf
Load 3 151.5288 lbf
Load At Max Deflection 175.8094 lbf
Material Chrome Silicon
Max Deflection 0.5709 in
Measurement Units Metric
Rate 307.8241 lbs/in
Rod Size 0.4921 in
SKU D-302504CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 7.5 mm
Deflection 2 10 mm
Deflection 3 12.5 mm
Display Name D-302504
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 25 mm
Hole Size 25 mm
Load 1 404 N
Load 2 539 N
Load 3 674 N
Load At Max Deflection 782 N
Material Chrome Silicon
Max Deflection 14.5 mm
Measurement Units Metric
Rate 53.9 N/mm
Rod Size 12.5 mm
SKU D-302504CS
