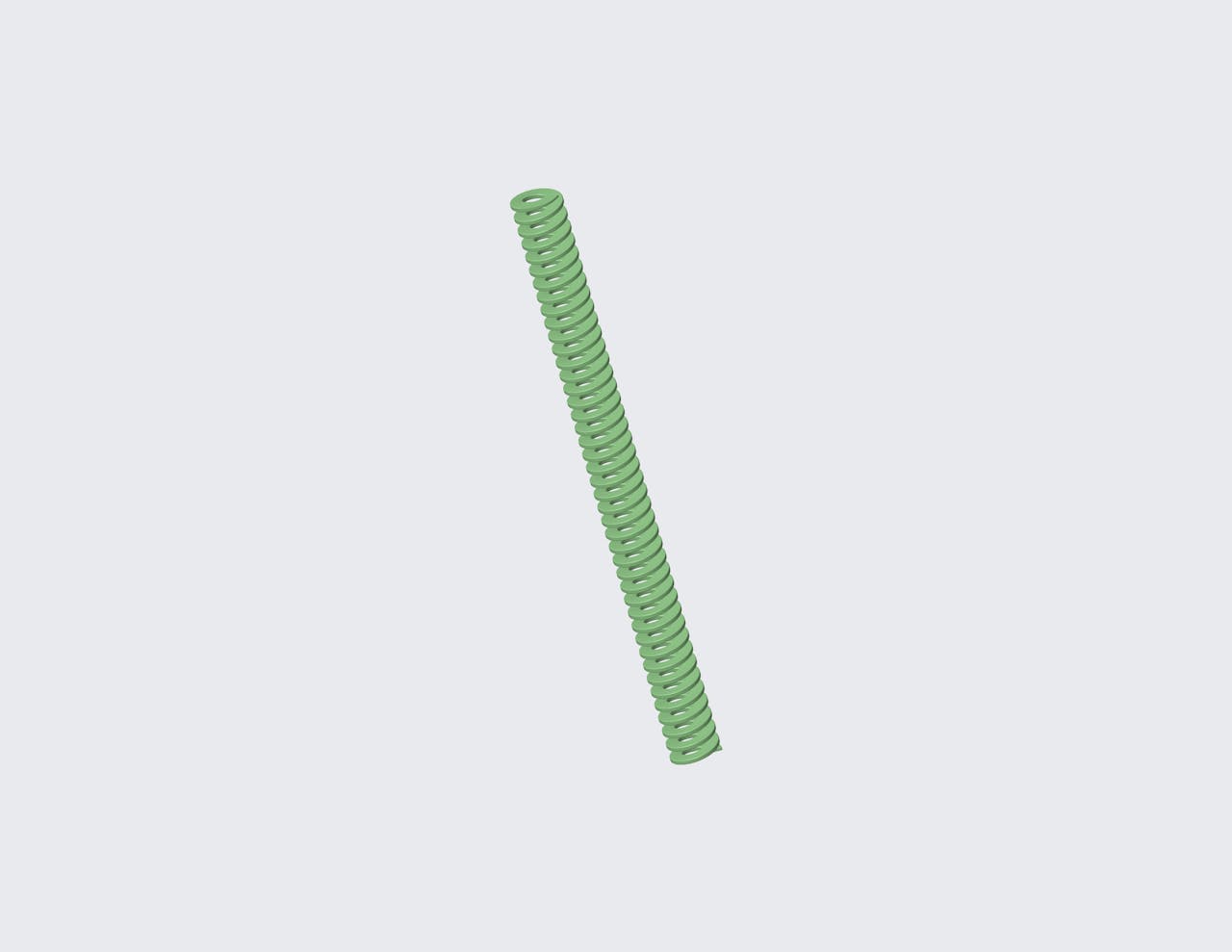

D-302448CS - 305 Millimeter Ultra Light Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 305 Millimeter long and has a 2.5 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 3.6024 in
Deflection 2 4.8031 in
Deflection 3 6.0079 in
Display Name D-302448
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 12.0079 in
Hole Size 0.7874 in
Load 1 51.4838 lbf
Load 2 68.5701 lbf
Load 3 85.6565 lbf
Load At Max Deflection 125 lbf
Material Chrome Silicon
Max Deflection 8.7598 in
Measurement Units Metric
Rate 14.2776 lbs/in
Rod Size 0.3937 in
SKU D-302448CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 91.5 mm
Deflection 2 122 mm
Deflection 3 152.6 mm
Display Name D-302448
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 305 mm
Hole Size 20 mm
Load 1 229 N
Load 2 305 N
Load 3 381 N
Load At Max Deflection 556 N
Material Chrome Silicon
Max Deflection 222.5 mm
Measurement Units Metric
Rate 2.5 N/mm
Rod Size 10 mm
SKU D-302448CS
