Century Spring

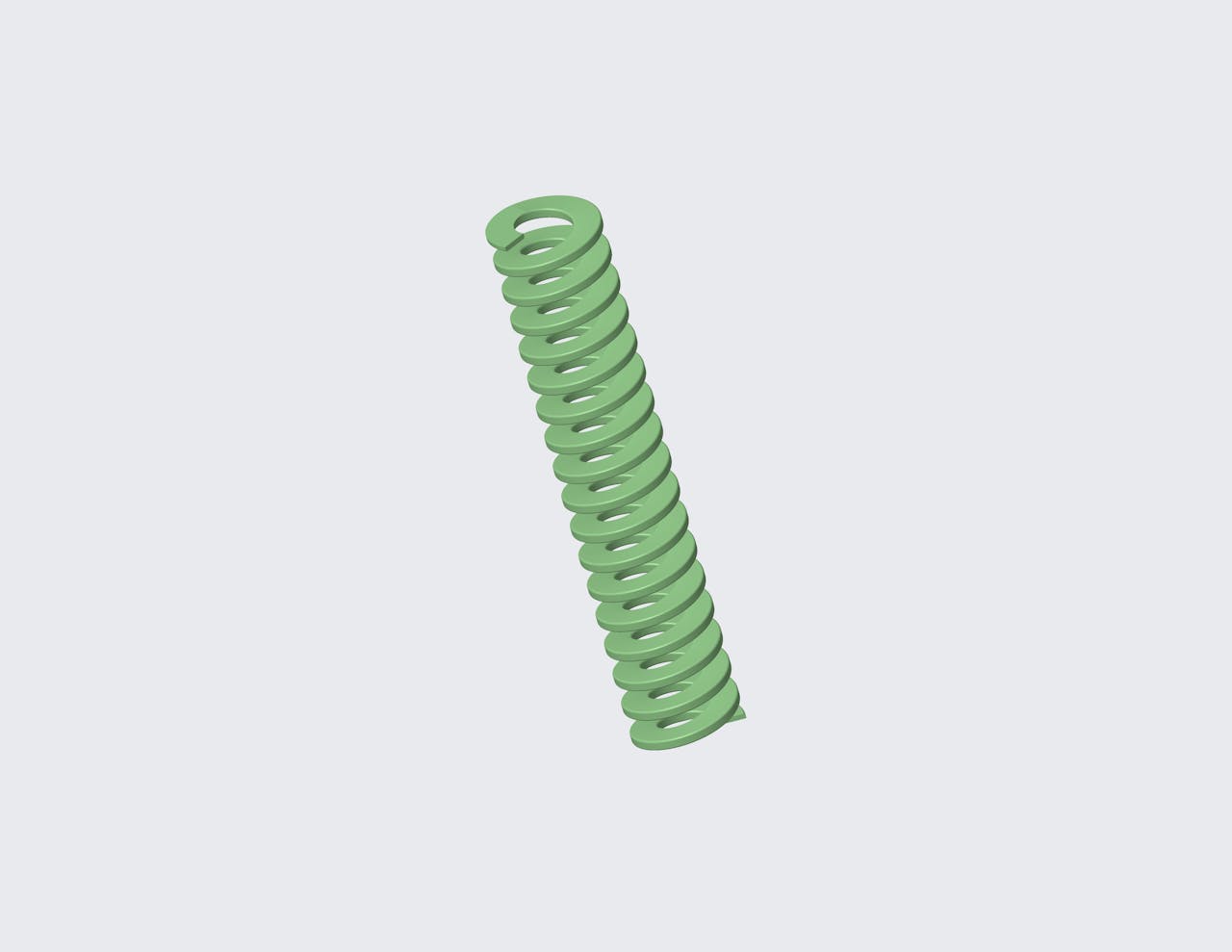

D-302420CS - 127 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 127 Millimeter long and has a 5.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.5 in
Deflection 2 2 in
Deflection 3 2.5 in
Display Name D-302420
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 5 in
Hole Size 0.7874 in
Load 1 50.5845 lbf
Load 2 67.446 lbf
Load 3 84.3076 lbf
Load At Max Deflection 121.8525 lbf
Material Chrome Silicon
Max Deflection 3.6181 in
Measurement Units Metric
Rate 33.695 lbs/in
Rod Size 0.3937 in
SKU D-302420CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 38.1 mm
Deflection 2 50.8 mm
Deflection 3 63.5 mm
Display Name D-302420
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 127 mm
Hole Size 20 mm
Load 1 225 N
Load 2 300 N
Load 3 375 N
Load At Max Deflection 542 N
Material Chrome Silicon
Max Deflection 91.9 mm
Measurement Units Metric
Rate 5.9 N/mm
Rod Size 10 mm
SKU D-302420CS
