Century Spring

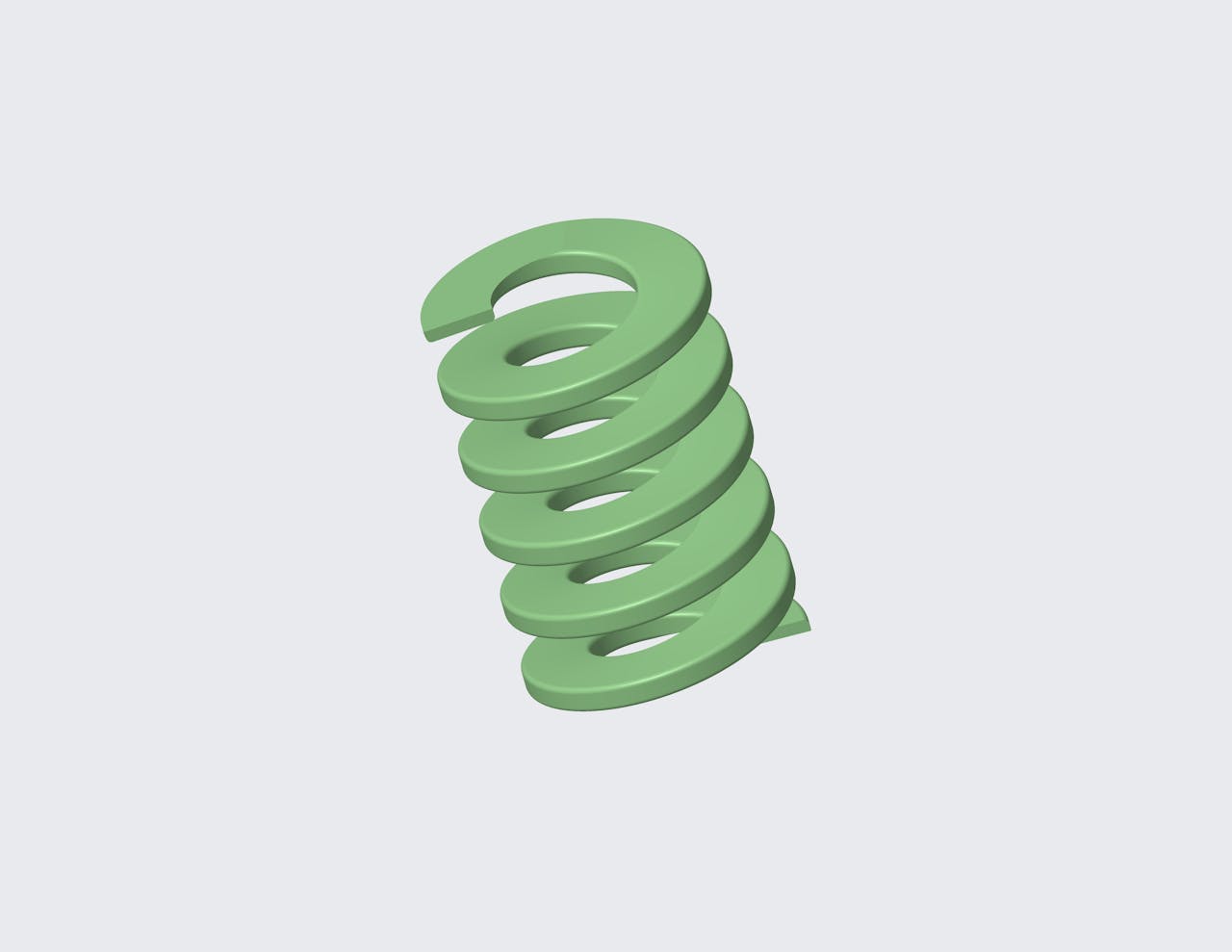

D-302406CS - 38 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 38 Millimeter long and has a 18.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.4488 in
Deflection 2 0.5984 in
Deflection 3 0.748 in
Display Name D-302406
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 1.4961 in
Hole Size 0.7874 in
Load 1 47.6619 lbf
Load 2 63.6241 lbf
Load 3 79.3615 lbf
Load At Max Deflection 107.0144 lbf
Material Chrome Silicon
Max Deflection 1.0079 in
Measurement Units Metric
Rate 106.225 lbs/in
Rod Size 0.3937 in
SKU D-302406CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 11.4 mm
Deflection 2 15.2 mm
Deflection 3 19 mm
Display Name D-302406
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 38 mm
Hole Size 20 mm
Load 1 212 N
Load 2 283 N
Load 3 353 N
Load At Max Deflection 476 N
Material Chrome Silicon
Max Deflection 25.6 mm
Measurement Units Metric
Rate 18.6 N/mm
Rod Size 10 mm
SKU D-302406CS
