Century Spring

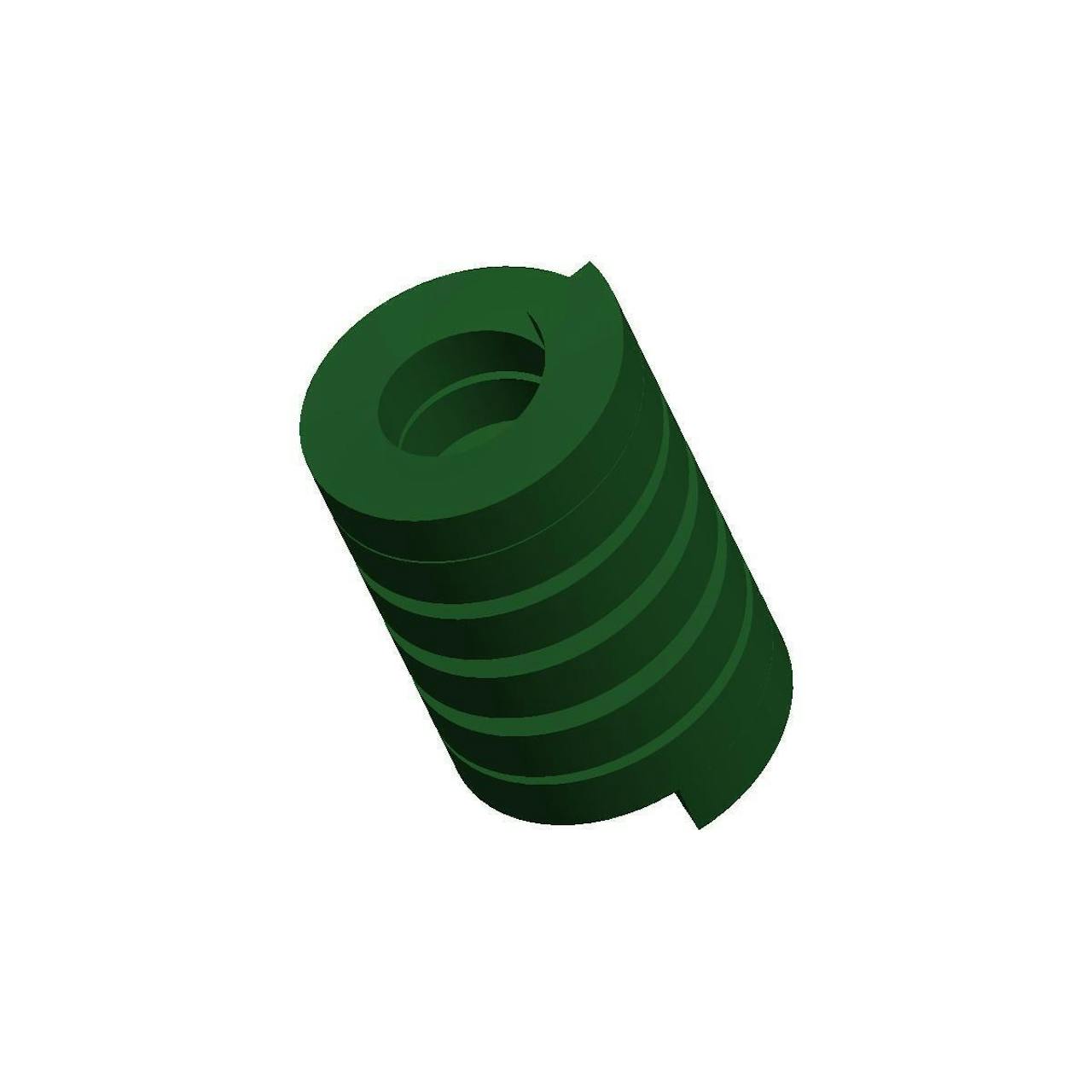

D-1476CS - 3.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 1336 lb
Brand Century Spring
Deflection For Average Life 0.53 in
Deflection For Long Life 0.7 in
Display Name D-1476
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 3.5 in
Hole Size 2 in
Long Life Deflection Force 1781 lb
Material Chrome Alloy
Maximum Deflection 0.88 in
Maximum Deflection Force 2226 lb
Measurement Units Standard
Rate 2544 lbs/in
Rod Size 1 in
SKU D-1476CS
Wire Diameter 0.46 in x 0.365 in
Specs (in metric)
Label Value
Average Life Deflection Force 605.9 kg
Brand Century Spring
Deflection For Average Life 13.46 mm
Deflection For Long Life 17.78 mm
Display Name D-1476
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 88.9 mm
Hole Size 50.8 mm
Long Life Deflection Force 807.71 kg
Material Chrome Alloy
Maximum Deflection 22.35 mm
Maximum Deflection Force 1009.52 kg
Measurement Units Standard
Rate 445.45 N/mm
Rod Size 25.4 mm
SKU D-1476CS
Wire Diameter 11.68 mm x 9.27 mm
