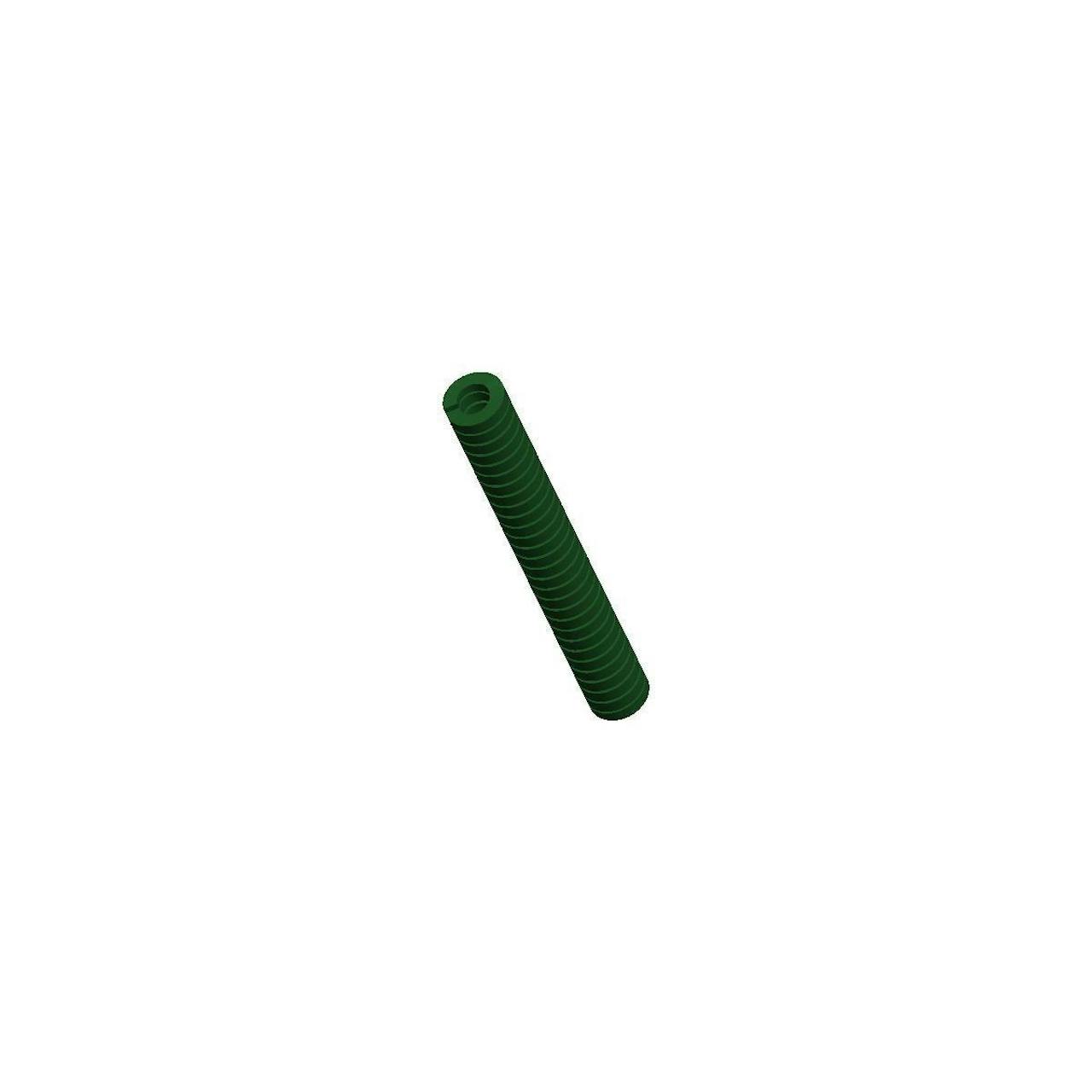

D-1473CS - 12 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

12 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 979 lb
Brand Century Spring
Deflection For Average Life 1.8 in
Deflection For Long Life 2.4 in
Display Name D-1473
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 12 in
Hole Size 1.5 in
Long Life Deflection Force 1306 lb
Material Chrome Alloy
Maximum Deflection 3 in
Maximum Deflection Force 1632 lb
Measurement Units Standard
Rate 544 lbs/in
Rod Size 0.75 in
SKU D-1473CS
Wire Diameter 0.35 in x 0.3 in
Specs (in metric)
Label Value
Average Life Deflection Force 443.99 kg
Brand Century Spring
Deflection For Average Life 45.72 mm
Deflection For Long Life 60.96 mm
Display Name D-1473
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 304.8 mm
Hole Size 38.1 mm
Long Life Deflection Force 592.29 kg
Material Chrome Alloy
Maximum Deflection 76.2 mm
Maximum Deflection Force 740.14 kg
Measurement Units Standard
Rate 95.25 N/mm
Rod Size 19.05 mm
SKU D-1473CS
Wire Diameter 8.89 mm x 7.62 mm
