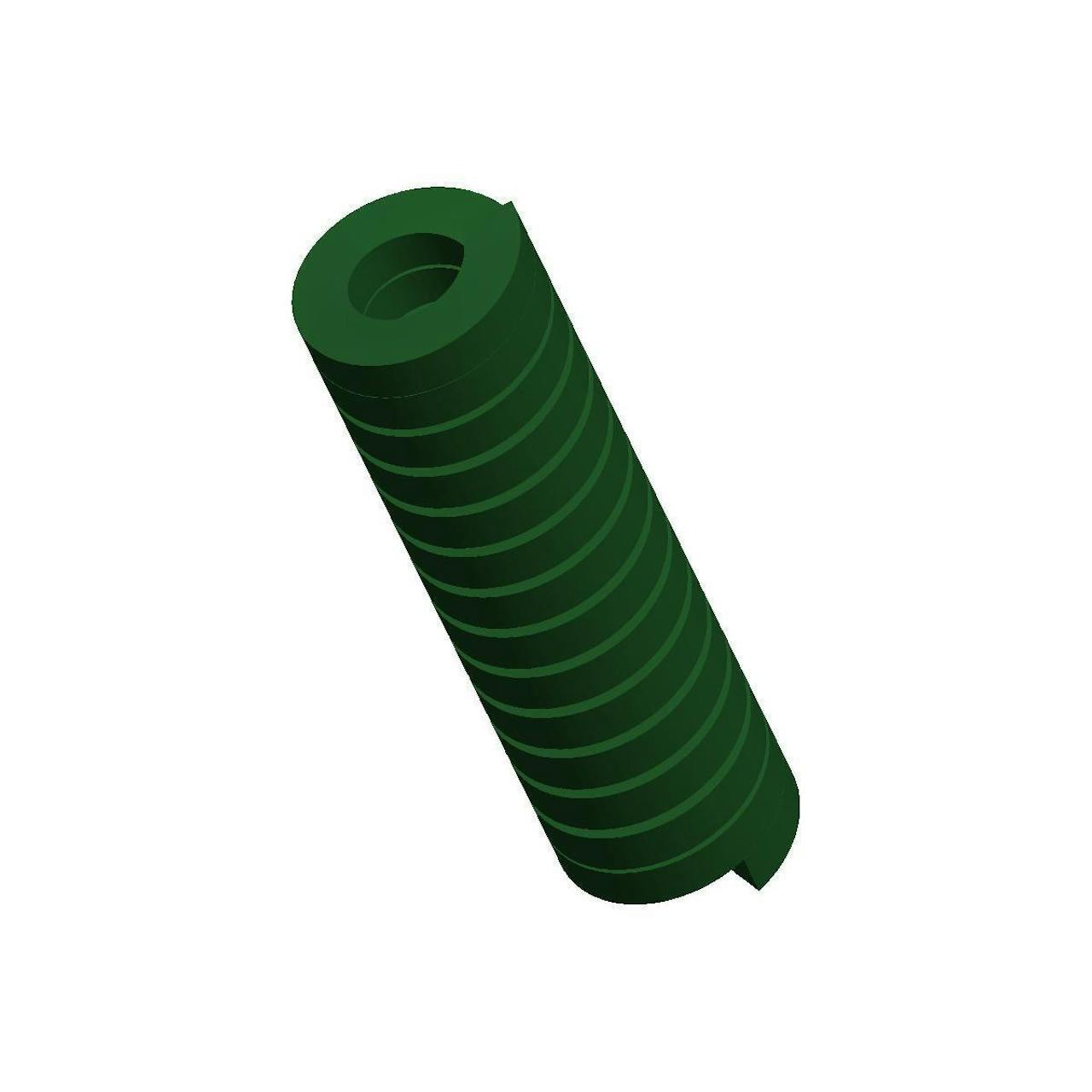

D-1470CS - 6 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

6 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 994 lb
Brand Century Spring
Deflection For Average Life 0.9 in
Deflection For Long Life 1.2 in
Display Name D-1470
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 6 in
Hole Size 1.5 in
Long Life Deflection Force 1325 lb
Material Chrome Alloy
Maximum Deflection 1.5 in
Maximum Deflection Force 1656 lb
Measurement Units Standard
Rate 1104 lbs/in
Rod Size 0.75 in
SKU D-1470CS
Wire Diameter 0.35 in x 0.3 in
Specs (in metric)
Label Value
Average Life Deflection Force 450.79 kg
Brand Century Spring
Deflection For Average Life 22.86 mm
Deflection For Long Life 30.48 mm
Display Name D-1470
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 152.4 mm
Hole Size 38.1 mm
Long Life Deflection Force 600.91 kg
Material Chrome Alloy
Maximum Deflection 38.1 mm
Maximum Deflection Force 751.02 kg
Measurement Units Standard
Rate 193.31 N/mm
Rod Size 19.05 mm
SKU D-1470CS
Wire Diameter 8.89 mm x 7.62 mm
