Century Spring

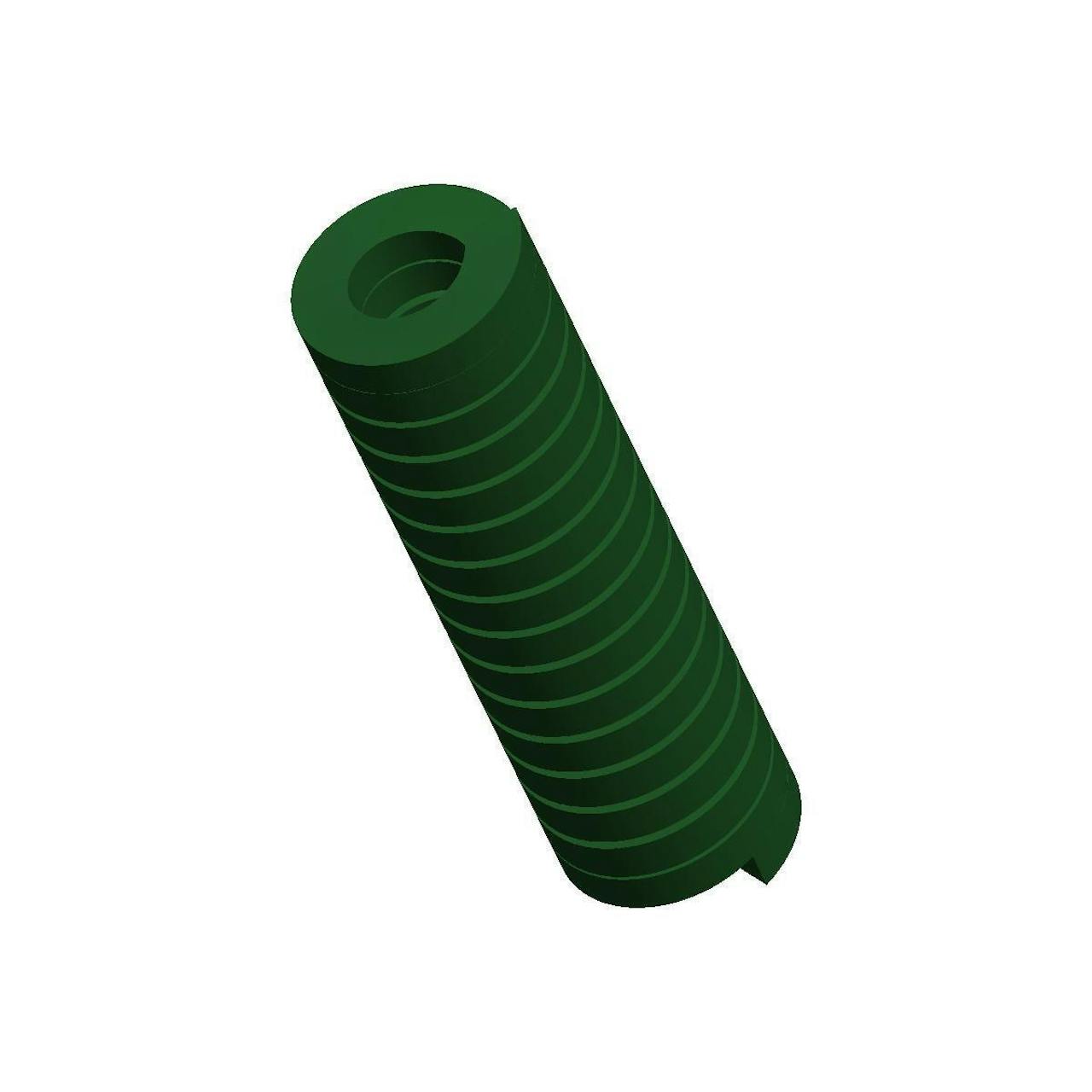

D-1458CS - 5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 510 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Deflection For Long Life 1 in
Display Name D-1458
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 5 in
Hole Size 1.25 in
Long Life Deflection Force 680 lb
Material Chrome Alloy
Maximum Deflection 1.25 in
Maximum Deflection Force 850 lb
Measurement Units Standard
Rate 680 lbs/in
Rod Size 0.625 in
SKU D-1458CS
Wire Diameter 0.295 in x 0.225 in
Specs (in metric)
Label Value
Average Life Deflection Force 231.29 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Deflection For Long Life 25.4 mm
Display Name D-1458
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 127 mm
Hole Size 31.75 mm
Long Life Deflection Force 308.39 kg
Material Chrome Alloy
Maximum Deflection 31.75 mm
Maximum Deflection Force 385.49 kg
Measurement Units Standard
Rate 119.07 N/mm
Rod Size 15.88 mm
SKU D-1458CS
Wire Diameter 7.49 mm x 5.72 mm
