Century Spring

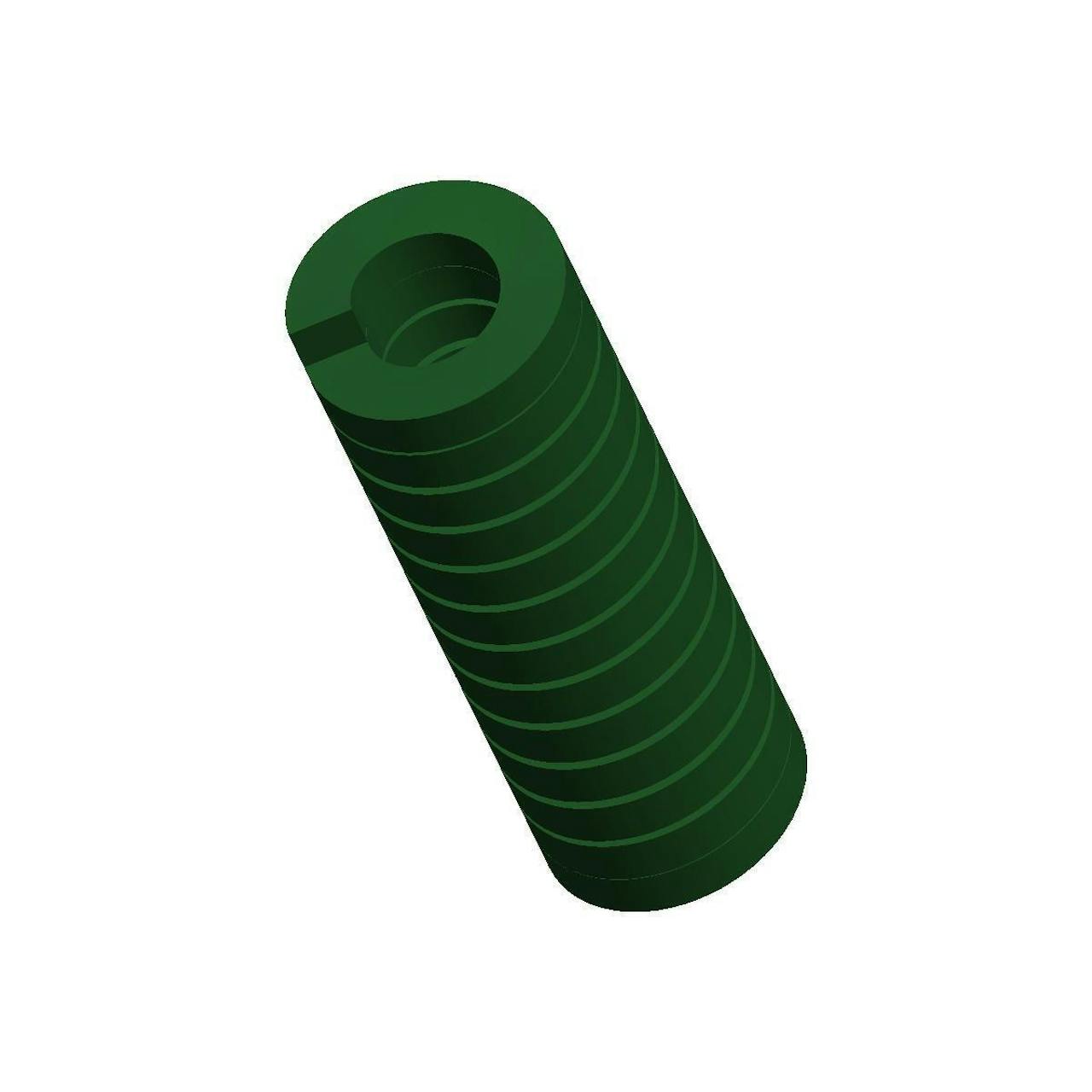

D-1456CS - 4 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

4 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 504 lb
Brand Century Spring
Deflection For Average Life 0.6 in
Deflection For Long Life 0.8 in
Display Name D-1456
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 4 in
Hole Size 1.25 in
Long Life Deflection Force 672 lb
Material Chrome Alloy
Maximum Deflection 1 in
Maximum Deflection Force 840 lb
Measurement Units Standard
Rate 840 lbs/in
Rod Size 0.625 in
SKU D-1456CS
Wire Diameter 0.295 in x 0.225 in
Specs (in metric)
Label Value
Average Life Deflection Force 228.57 kg
Brand Century Spring
Deflection For Average Life 15.24 mm
Deflection For Long Life 20.32 mm
Display Name D-1456
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 101.6 mm
Hole Size 31.75 mm
Long Life Deflection Force 304.76 kg
Material Chrome Alloy
Maximum Deflection 25.4 mm
Maximum Deflection Force 380.95 kg
Measurement Units Standard
Rate 147.08 N/mm
Rod Size 15.88 mm
SKU D-1456CS
Wire Diameter 7.49 mm x 5.72 mm
