Century Spring

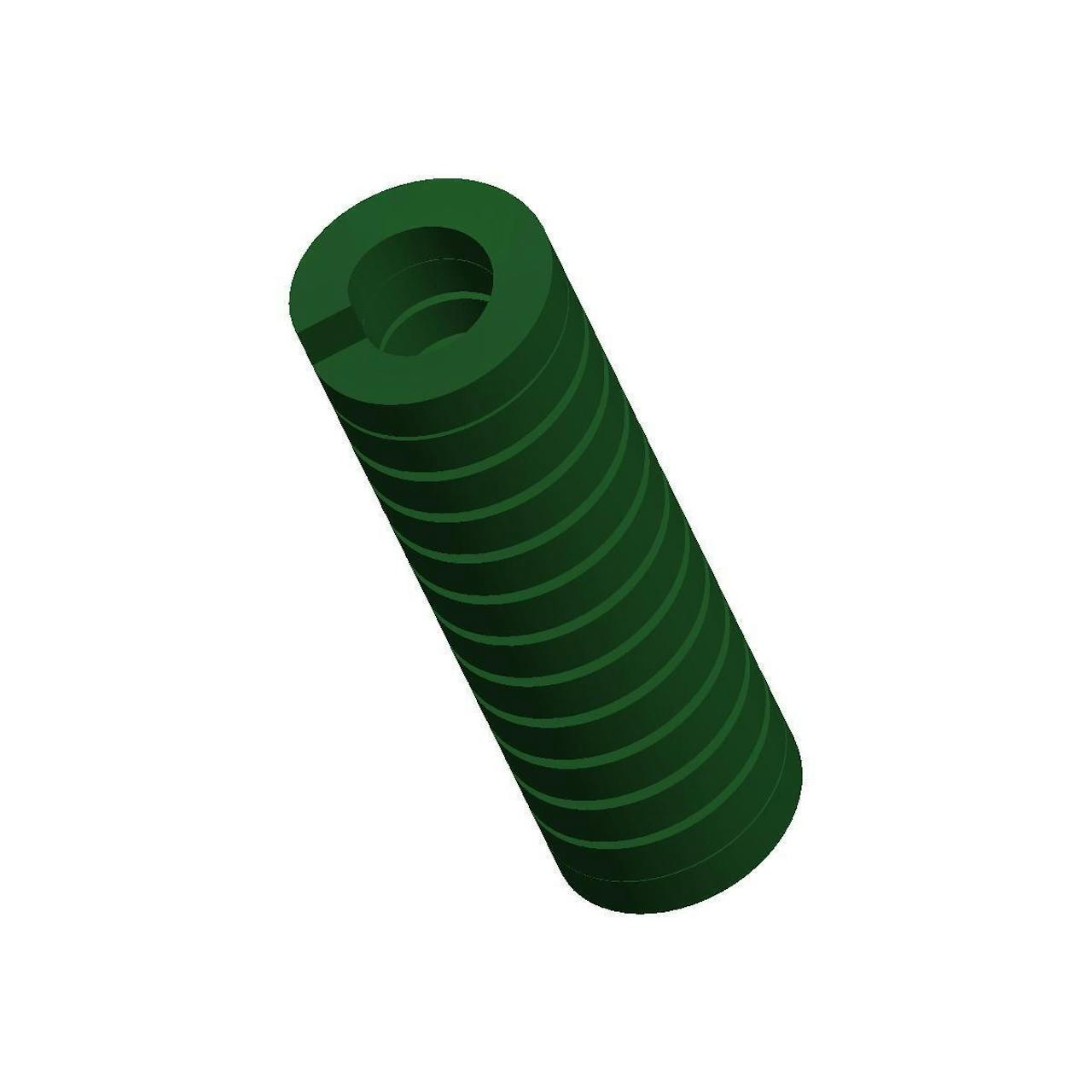

D-1446CS - 3.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 328 lb
Brand Century Spring
Deflection For Average Life 0.53 in
Deflection For Long Life 0.7 in
Display Name D-1446
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 3.5 in
Hole Size 1 in
Long Life Deflection Force 437 lb
Material Chrome Alloy
Maximum Deflection 0.88 in
Maximum Deflection Force 546 lb
Measurement Units Standard
Rate 624 lbs/in
Rod Size 0.5 in
SKU D-1446CS
Wire Diameter 0.225 in x 0.188 in
Specs (in metric)
Label Value
Average Life Deflection Force 148.75 kg
Brand Century Spring
Deflection For Average Life 13.46 mm
Deflection For Long Life 17.78 mm
Display Name D-1446
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 88.9 mm
Hole Size 25.4 mm
Long Life Deflection Force 198.19 kg
Material Chrome Alloy
Maximum Deflection 22.35 mm
Maximum Deflection Force 247.62 kg
Measurement Units Standard
Rate 109.26 N/mm
Rod Size 12.7 mm
SKU D-1446CS
Wire Diameter 5.72 mm x 4.78 mm
