Century Spring

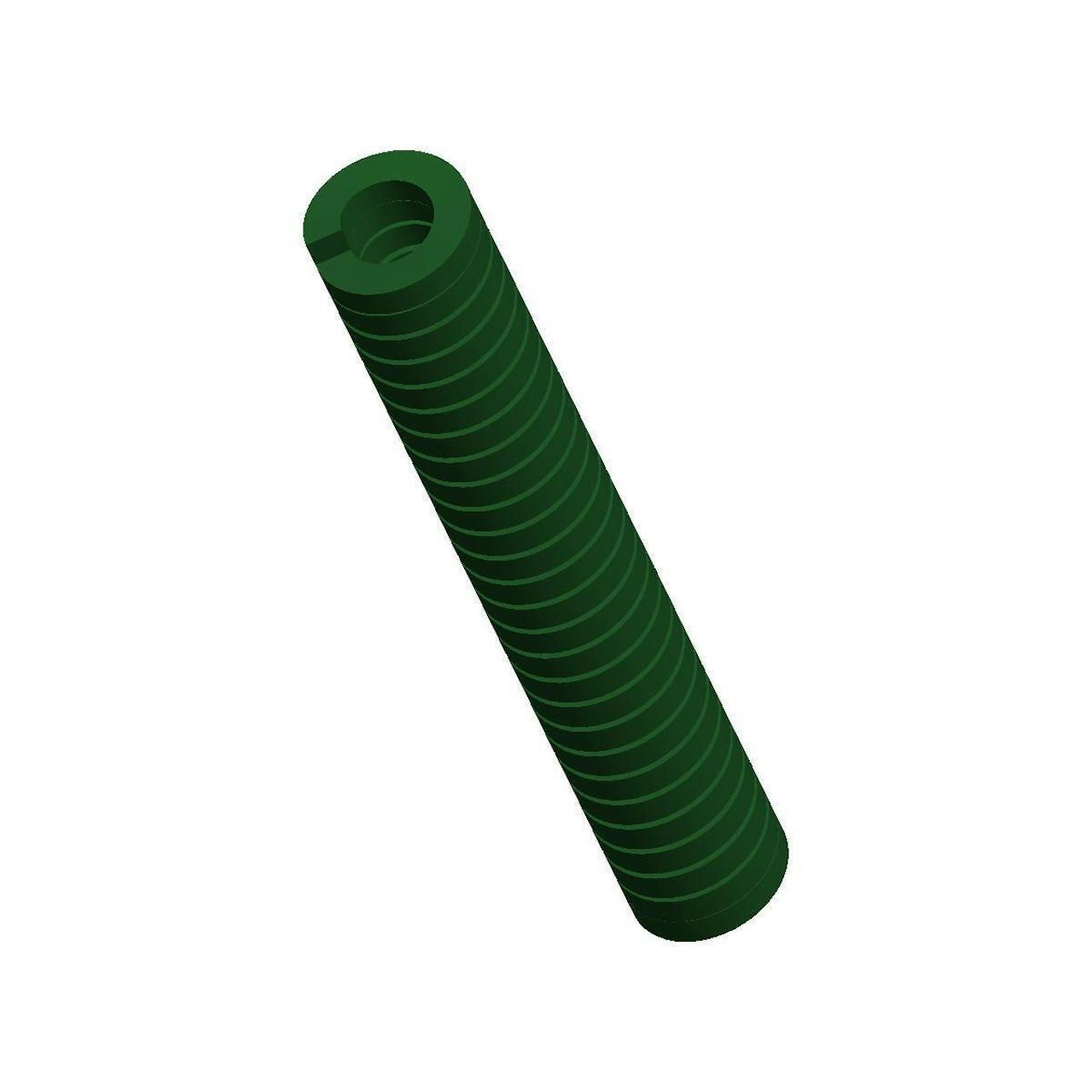

D-1438CS - 5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 176 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Deflection For Long Life 1 in
Display Name D-1438
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 5 in
Hole Size 0.75 in
Long Life Deflection Force 235 lb
Material Chrome Alloy
Maximum Deflection 1.25 in
Maximum Deflection Force 294 lb
Measurement Units Standard
Rate 235 lbs/in
Rod Size 0.375 in
SKU D-1438CS
Wire Diameter 0.165 in x 0.135 in
Specs (in metric)
Label Value
Average Life Deflection Force 79.82 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Deflection For Long Life 25.4 mm
Display Name D-1438
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 127 mm
Hole Size 19.05 mm
Long Life Deflection Force 106.58 kg
Material Chrome Alloy
Maximum Deflection 31.75 mm
Maximum Deflection Force 133.33 kg
Measurement Units Standard
Rate 41.15 N/mm
Rod Size 9.53 mm
SKU D-1438CS
Wire Diameter 4.19 mm x 3.43 mm
