Century Spring

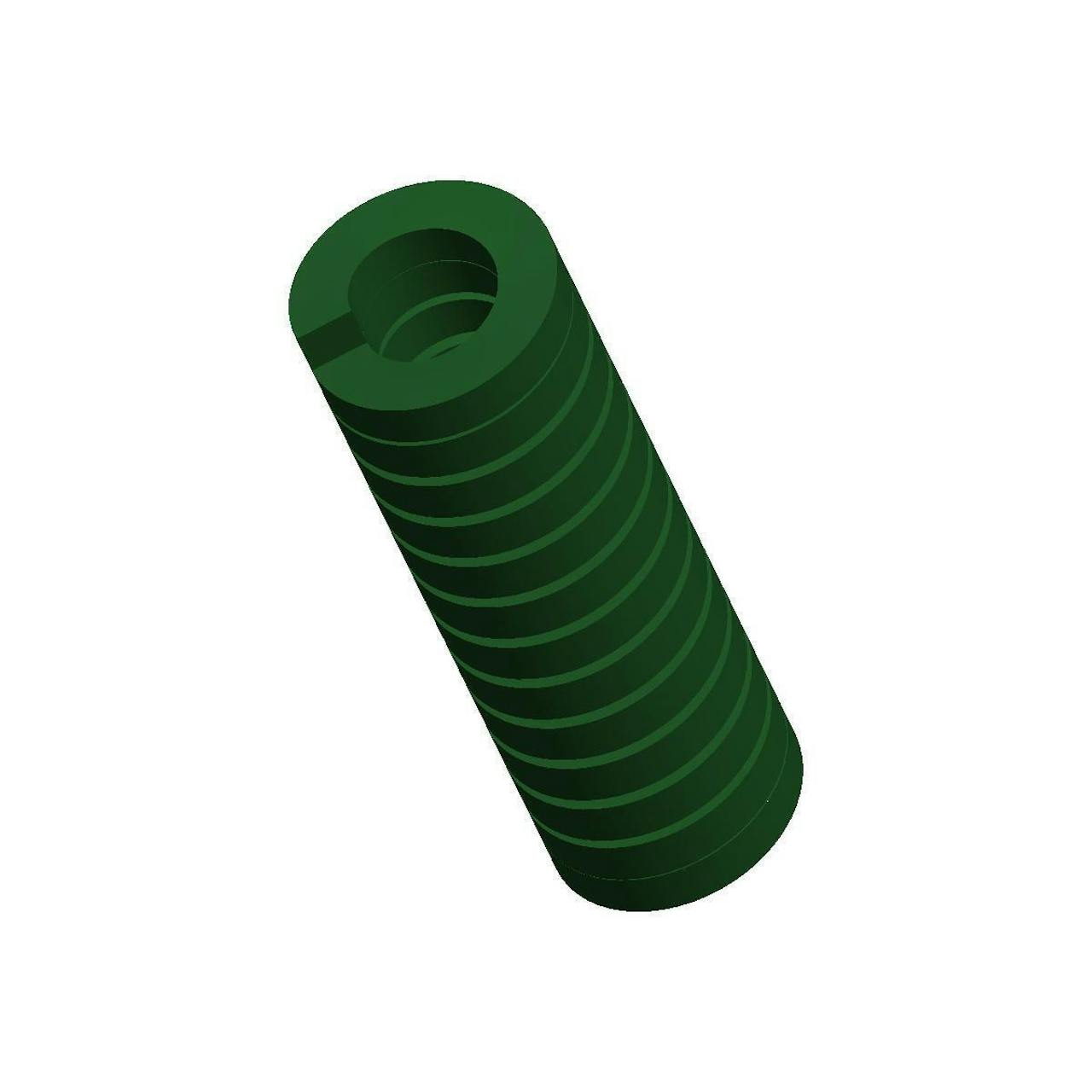

D-1433CS - 2.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

2.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 188 lb
Brand Century Spring
Deflection For Average Life 0.38 in
Deflection For Long Life 0.5 in
Display Name D-1433
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 2.5 in
Hole Size 0.75 in
Long Life Deflection Force 250 lb
Material Chrome Alloy
Maximum Deflection 0.63 in
Maximum Deflection Force 313 lb
Measurement Units Standard
Rate 500 lbs/in
Rod Size 0.375 in
SKU D-1433CS
Wire Diameter 0.165 in x 0.135 in
Specs (in metric)
Label Value
Average Life Deflection Force 85.26 kg
Brand Century Spring
Deflection For Average Life 9.65 mm
Deflection For Long Life 12.7 mm
Display Name D-1433
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 63.5 mm
Hole Size 19.05 mm
Long Life Deflection Force 113.38 kg
Material Chrome Alloy
Maximum Deflection 16 mm
Maximum Deflection Force 141.95 kg
Measurement Units Standard
Rate 87.55 N/mm
Rod Size 9.53 mm
SKU D-1433CS
Wire Diameter 4.19 mm x 3.43 mm
