Century Spring

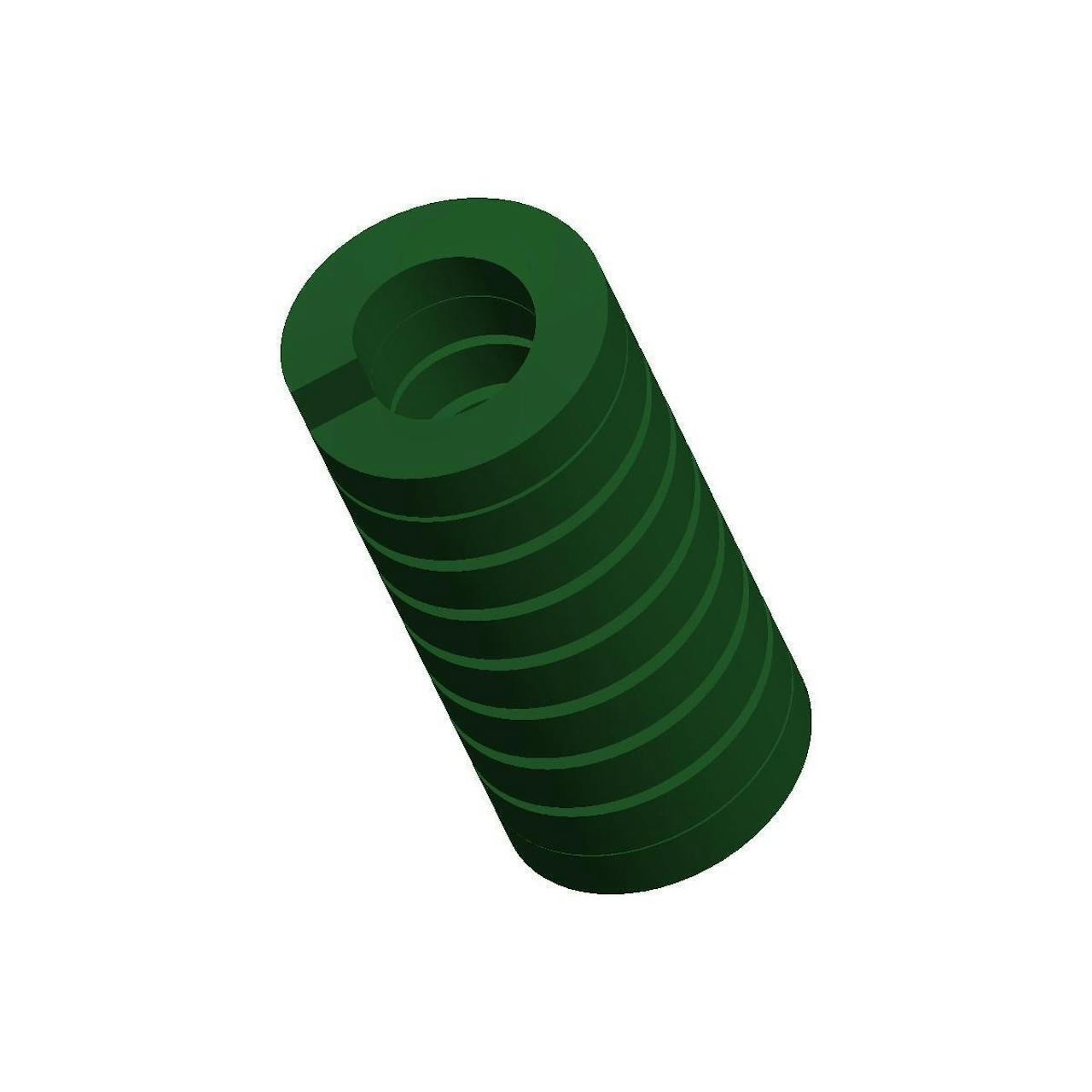

D-1431CS - 1.75 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.75 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 197 lb
Brand Century Spring
Deflection For Average Life 0.26 in
Deflection For Long Life 0.35 in
Display Name D-1431
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 1.75 in
Hole Size 0.75 in
Long Life Deflection Force 263 lb
Material Chrome Alloy
Maximum Deflection 0.44 in
Maximum Deflection Force 329 lb
Measurement Units Standard
Rate 750 lbs/in
Rod Size 0.375 in
SKU D-1431CS
Wire Diameter 0.165 in x 0.135 in
Specs (in metric)
Label Value
Average Life Deflection Force 89.34 kg
Brand Century Spring
Deflection For Average Life 6.6 mm
Deflection For Long Life 8.89 mm
Display Name D-1431
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 44.45 mm
Hole Size 19.05 mm
Long Life Deflection Force 119.27 kg
Material Chrome Alloy
Maximum Deflection 11.18 mm
Maximum Deflection Force 149.21 kg
Measurement Units Standard
Rate 131.33 N/mm
Rod Size 9.53 mm
SKU D-1431CS
Wire Diameter 4.19 mm x 3.43 mm
