Century Spring

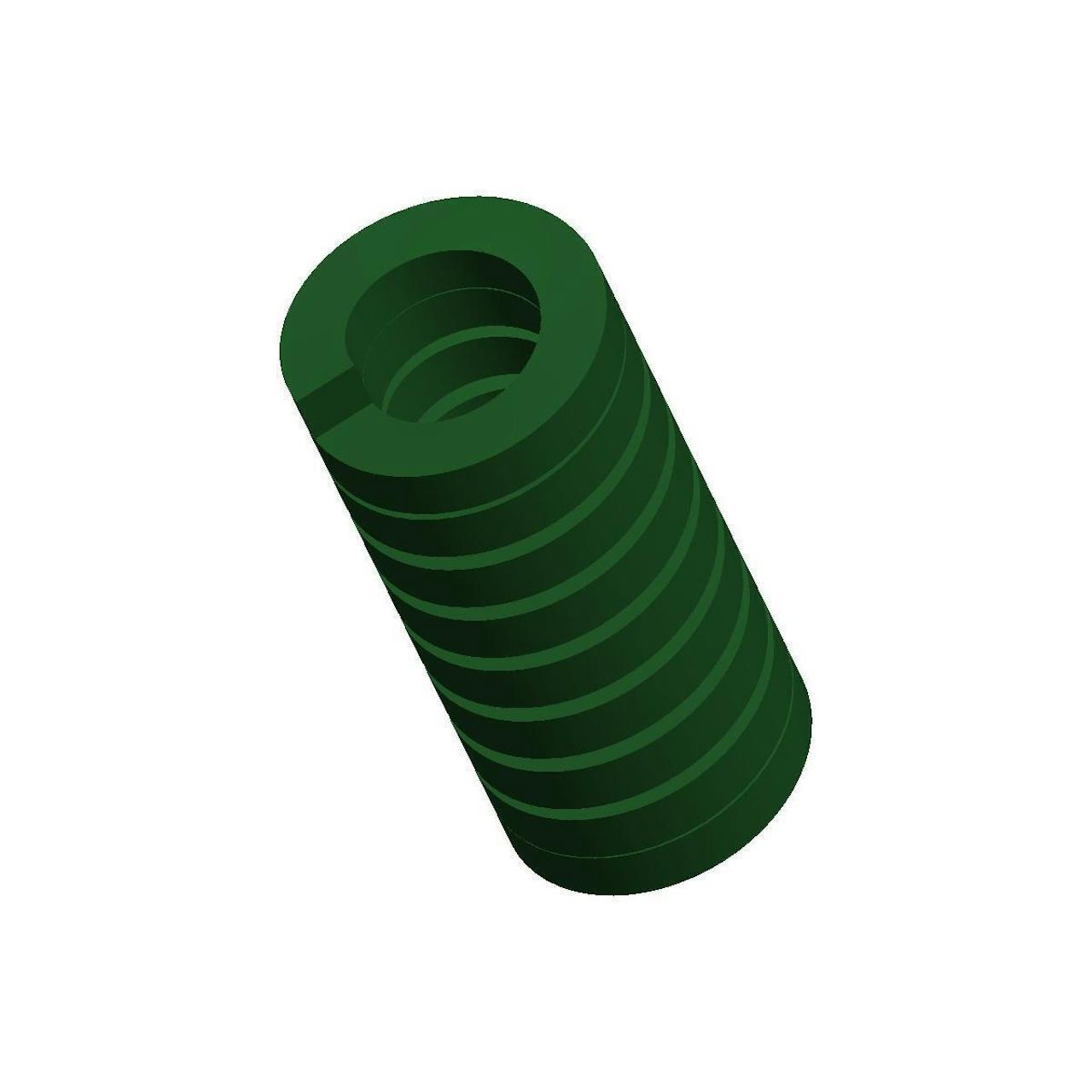

D-1420CS - 1.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 86 lb
Brand Century Spring
Deflection For Average Life 0.23 in
Deflection For Long Life 0.3 in
Display Name D-1420
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 1.5 in
Hole Size 0.625 in
Long Life Deflection Force 114 lb
Material Chrome Alloy
Maximum Deflection 0.38 in
Maximum Deflection Force 143 lb
Measurement Units Standard
Rate 380 lbs/in
Rod Size 0.3428 in
SKU D-1420CS
Wire Diameter 0.126 in x 0.11 in
Specs (in metric)
Label Value
Average Life Deflection Force 39 kg
Brand Century Spring
Deflection For Average Life 5.84 mm
Deflection For Long Life 7.62 mm
Display Name D-1420
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 38.1 mm
Hole Size 15.88 mm
Long Life Deflection Force 51.7 kg
Material Chrome Alloy
Maximum Deflection 9.65 mm
Maximum Deflection Force 64.85 kg
Measurement Units Standard
Rate 66.54 N/mm
Rod Size 8.71 mm
SKU D-1420CS
Wire Diameter 3.2 mm x 2.79 mm
