Century Spring

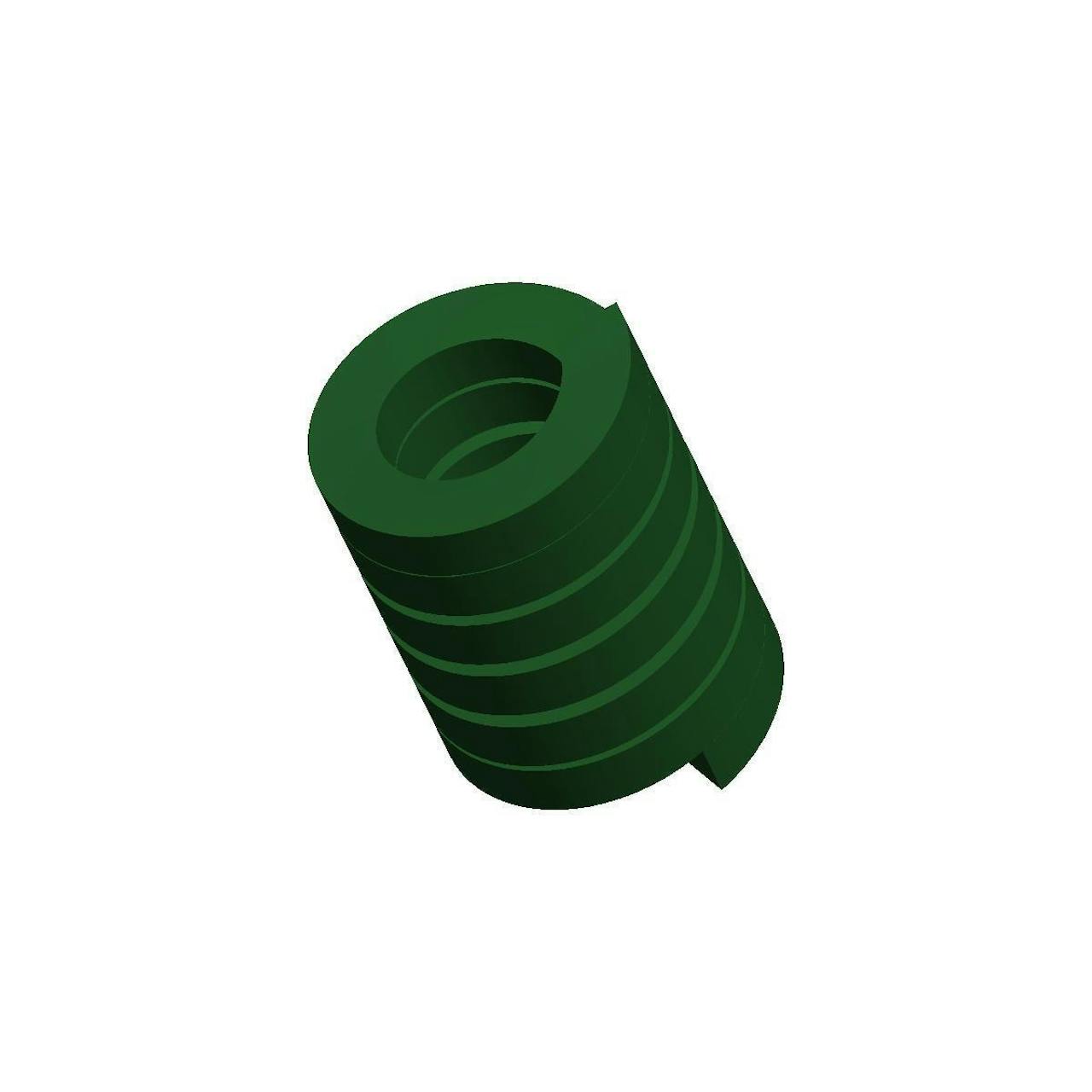

D-1418CS - 1 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 95 lb
Brand Century Spring
Deflection For Average Life 0.15 in
Deflection For Long Life 0.2 in
Display Name D-1418
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 1 in
Hole Size 0.625 in
Long Life Deflection Force 126 lb
Material Chrome Alloy
Maximum Deflection 0.25 in
Maximum Deflection Force 158 lb
Measurement Units Standard
Rate 630 lbs/in
Rod Size 0.3428 in
SKU D-1418CS
Wire Diameter 0.126 in x 0.11 in
Specs (in metric)
Label Value
Average Life Deflection Force 43.08 kg
Brand Century Spring
Deflection For Average Life 3.81 mm
Deflection For Long Life 5.08 mm
Display Name D-1418
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 25.4 mm
Hole Size 15.88 mm
Long Life Deflection Force 57.14 kg
Material Chrome Alloy
Maximum Deflection 6.35 mm
Maximum Deflection Force 71.66 kg
Measurement Units Standard
Rate 110.31 N/mm
Rod Size 8.71 mm
SKU D-1418CS
Wire Diameter 3.2 mm x 2.79 mm
