Century Spring

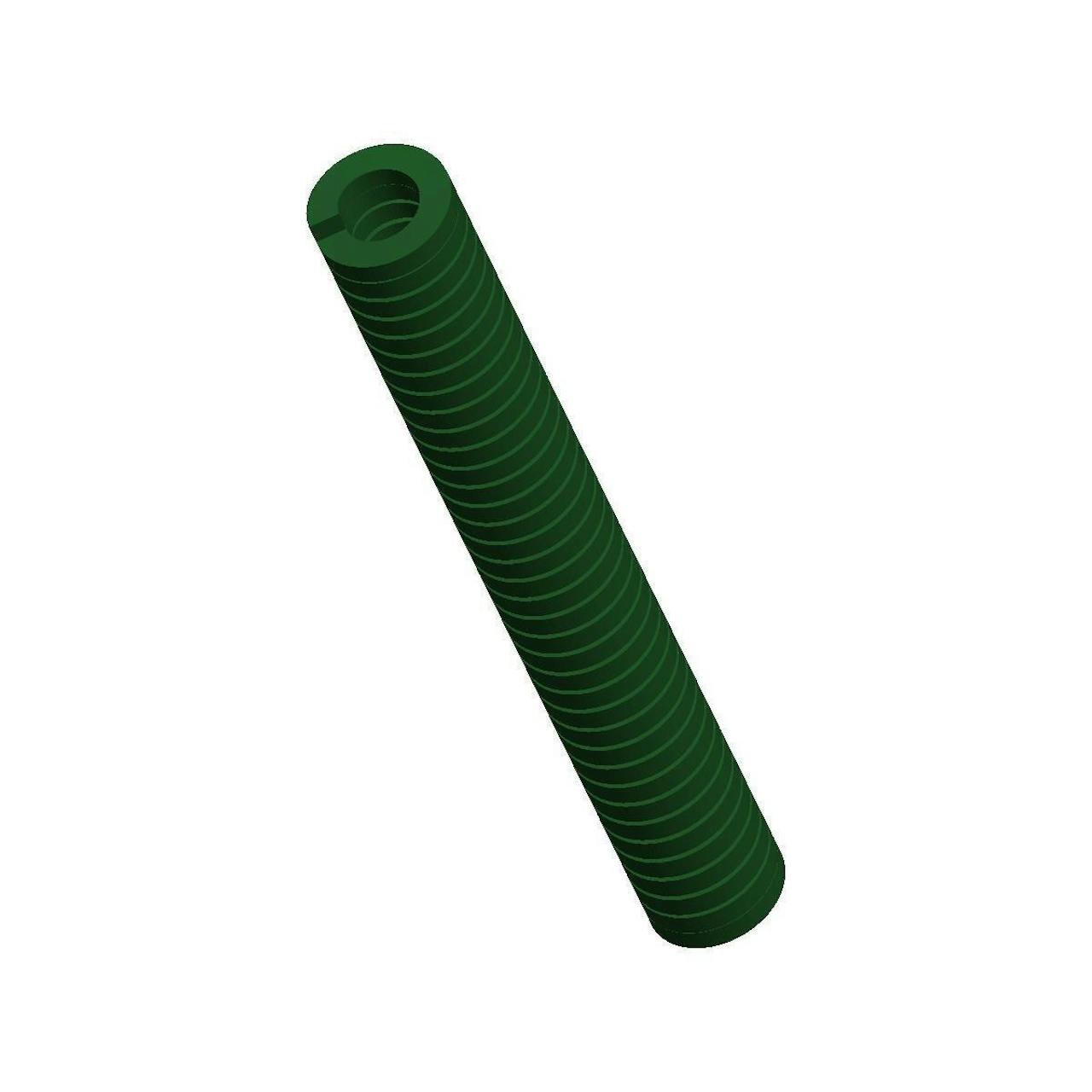

D-1407CS - 3 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 29 lb
Brand Century Spring
Deflection For Average Life 0.45 in
Deflection For Long Life 0.6 in
Display Name D-1407
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 3 in
Hole Size 0.375 in
Long Life Deflection Force 39 lb
Material Chrome Alloy
Maximum Deflection 0.75 in
Maximum Deflection Force 49 lb
Measurement Units Standard
Rate 65 lbs/in
Rod Size 0.1875 in
SKU D-1407CS
Wire Diameter 0.08 in x 0.059 in
Specs (in metric)
Label Value
Average Life Deflection Force 13.15 kg
Brand Century Spring
Deflection For Average Life 11.43 mm
Deflection For Long Life 15.24 mm
Display Name D-1407
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 76.2 mm
Hole Size 9.53 mm
Long Life Deflection Force 17.69 kg
Material Chrome Alloy
Maximum Deflection 19.05 mm
Maximum Deflection Force 22.22 kg
Measurement Units Standard
Rate 11.38 N/mm
Rod Size 4.76 mm
SKU D-1407CS
Wire Diameter 2.03 mm x 1.5 mm
