Century Spring

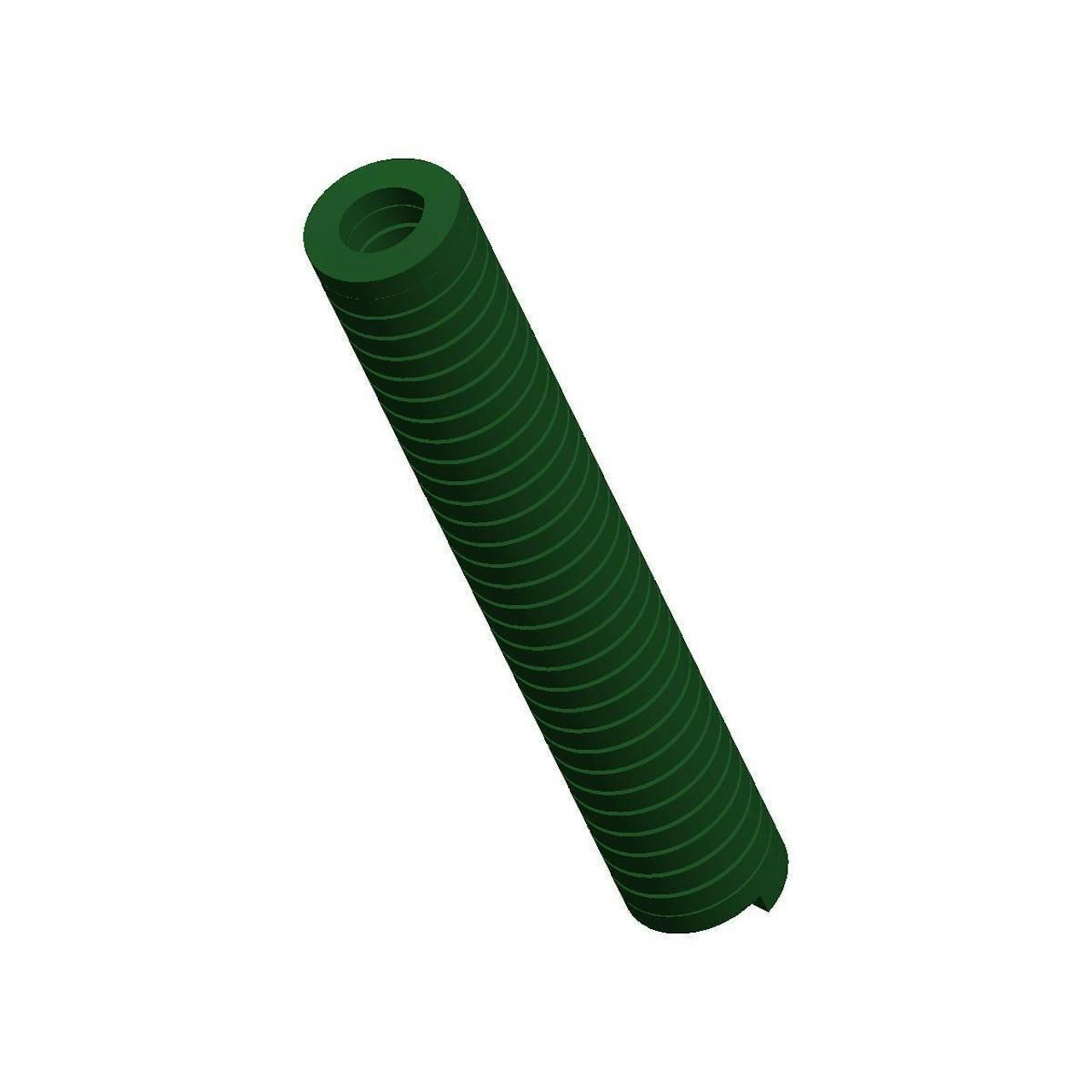

D-1406CS - 2.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

2.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 30 lb
Brand Century Spring
Deflection For Average Life 0.38 in
Deflection For Long Life 0.5 in
Display Name D-1406
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 2.5 in
Hole Size 0.375 in
Long Life Deflection Force 40 lb
Material Chrome Alloy
Maximum Deflection 0.63 in
Maximum Deflection Force 50 lb
Measurement Units Standard
Rate 80 lbs/in
Rod Size 0.1875 in
SKU D-1406CS
Wire Diameter 0.08 in x 0.059 in
Specs (in metric)
Label Value
Average Life Deflection Force 13.61 kg
Brand Century Spring
Deflection For Average Life 9.65 mm
Deflection For Long Life 12.7 mm
Display Name D-1406
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 63.5 mm
Hole Size 9.53 mm
Long Life Deflection Force 18.14 kg
Material Chrome Alloy
Maximum Deflection 16 mm
Maximum Deflection Force 22.68 kg
Measurement Units Standard
Rate 14.01 N/mm
Rod Size 4.76 mm
SKU D-1406CS
Wire Diameter 2.03 mm x 1.5 mm
