Century Spring

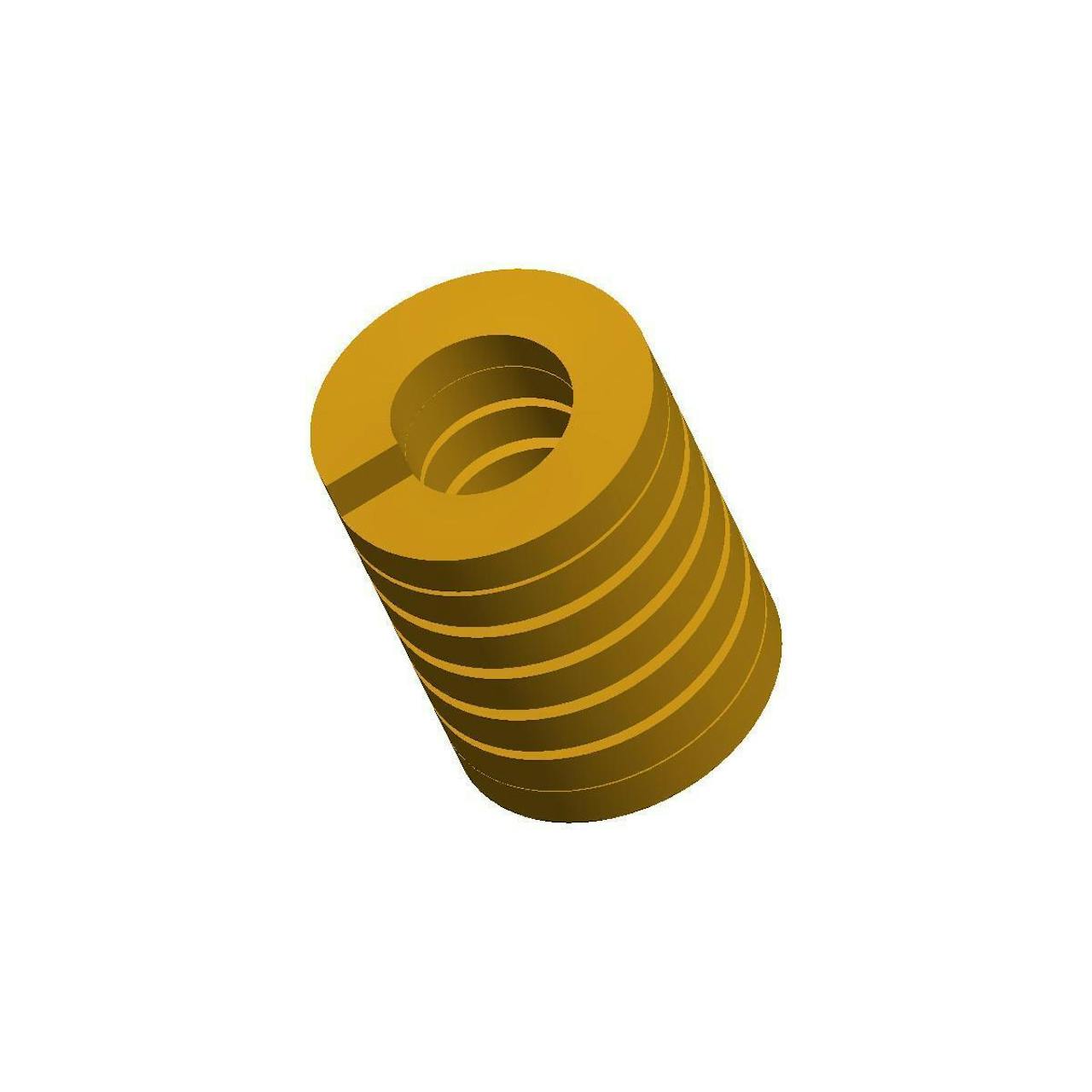

D-1372CS - 3 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 835 lb
Brand Century Spring
Deflection For Average Life 0.45 in
Deflection For Long Life 0.6 in
Display Name D-1372
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 3 in
Hole Size 2 in
Long Life Deflection Force 1114 lb
Material Chrome Alloy
Maximum Deflection 0.9 in
Maximum Deflection Force 1670 lb
Measurement Units Standard
Rate 1856 lbs/in
Rod Size 1 in
SKU D-1372CS
Wire Diameter 0.47 in x 0.28 in
Specs (in metric)
Label Value
Average Life Deflection Force 378.68 kg
Brand Century Spring
Deflection For Average Life 11.43 mm
Deflection For Long Life 15.24 mm
Display Name D-1372
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 76.2 mm
Hole Size 50.8 mm
Long Life Deflection Force 505.22 kg
Material Chrome Alloy
Maximum Deflection 22.86 mm
Maximum Deflection Force 757.37 kg
Measurement Units Standard
Rate 324.99 N/mm
Rod Size 25.4 mm
SKU D-1372CS
Wire Diameter 11.94 mm x 7.11 mm
