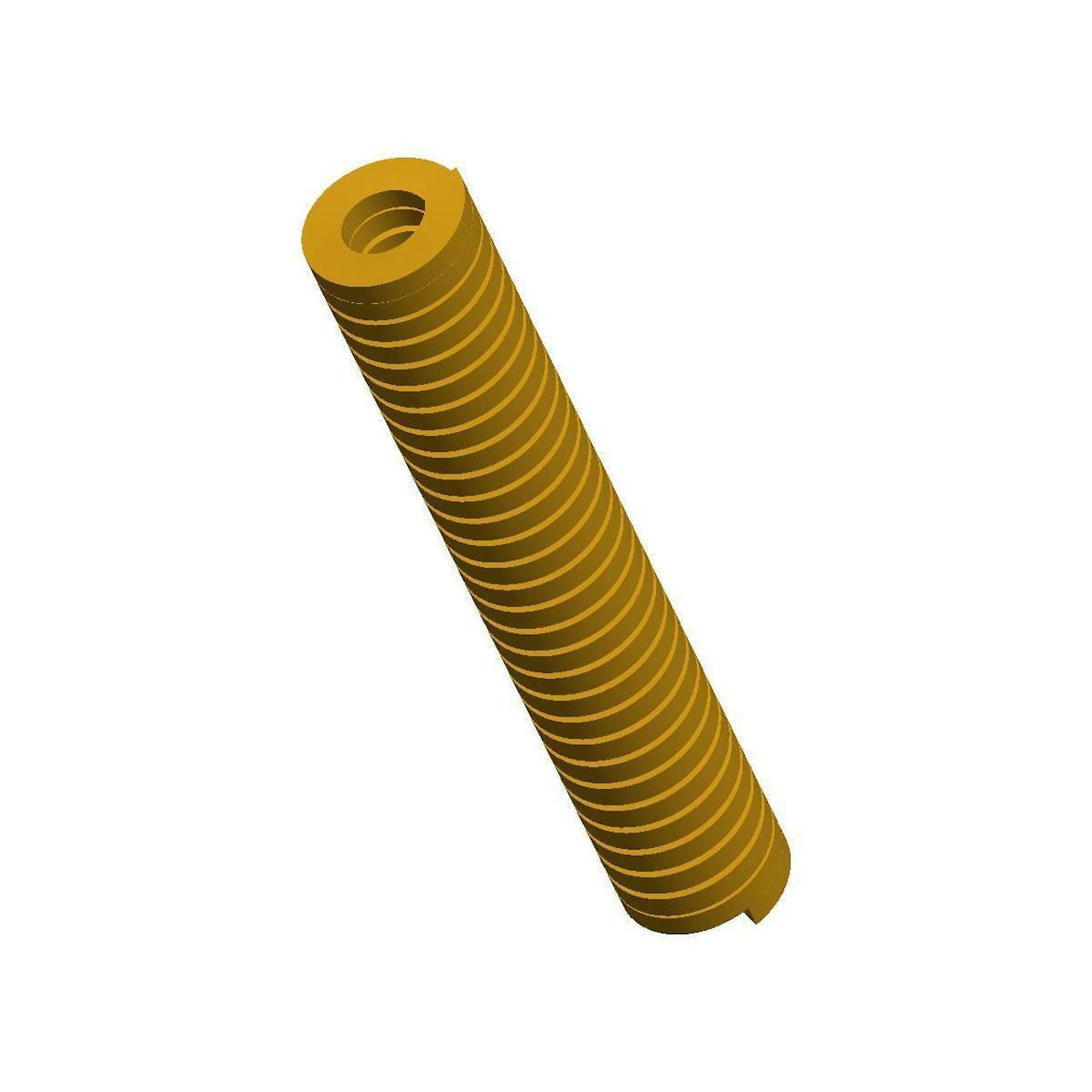

D-1370CS - 10 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

10 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 516 lb
Brand Century Spring
Deflection For Average Life 1.5 in
Deflection For Long Life 2 in
Display Name D-1370
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 10 in
Hole Size 1.5 in
Long Life Deflection Force 688 lb
Material Chrome Alloy
Maximum Deflection 3 in
Maximum Deflection Force 1032 lb
Measurement Units Standard
Rate 344 lbs/in
Rod Size 0.75 in
SKU D-1370CS
Wire Diameter 0.35 in x 0.225 in
Specs (in metric)
Label Value
Average Life Deflection Force 234.01 kg
Brand Century Spring
Deflection For Average Life 38.1 mm
Deflection For Long Life 50.8 mm
Display Name D-1370
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 254 mm
Hole Size 38.1 mm
Long Life Deflection Force 312.02 kg
Material Chrome Alloy
Maximum Deflection 76.2 mm
Maximum Deflection Force 468.03 kg
Measurement Units Standard
Rate 60.23 N/mm
Rod Size 19.05 mm
SKU D-1370CS
Wire Diameter 8.89 mm x 5.72 mm
