Century Spring

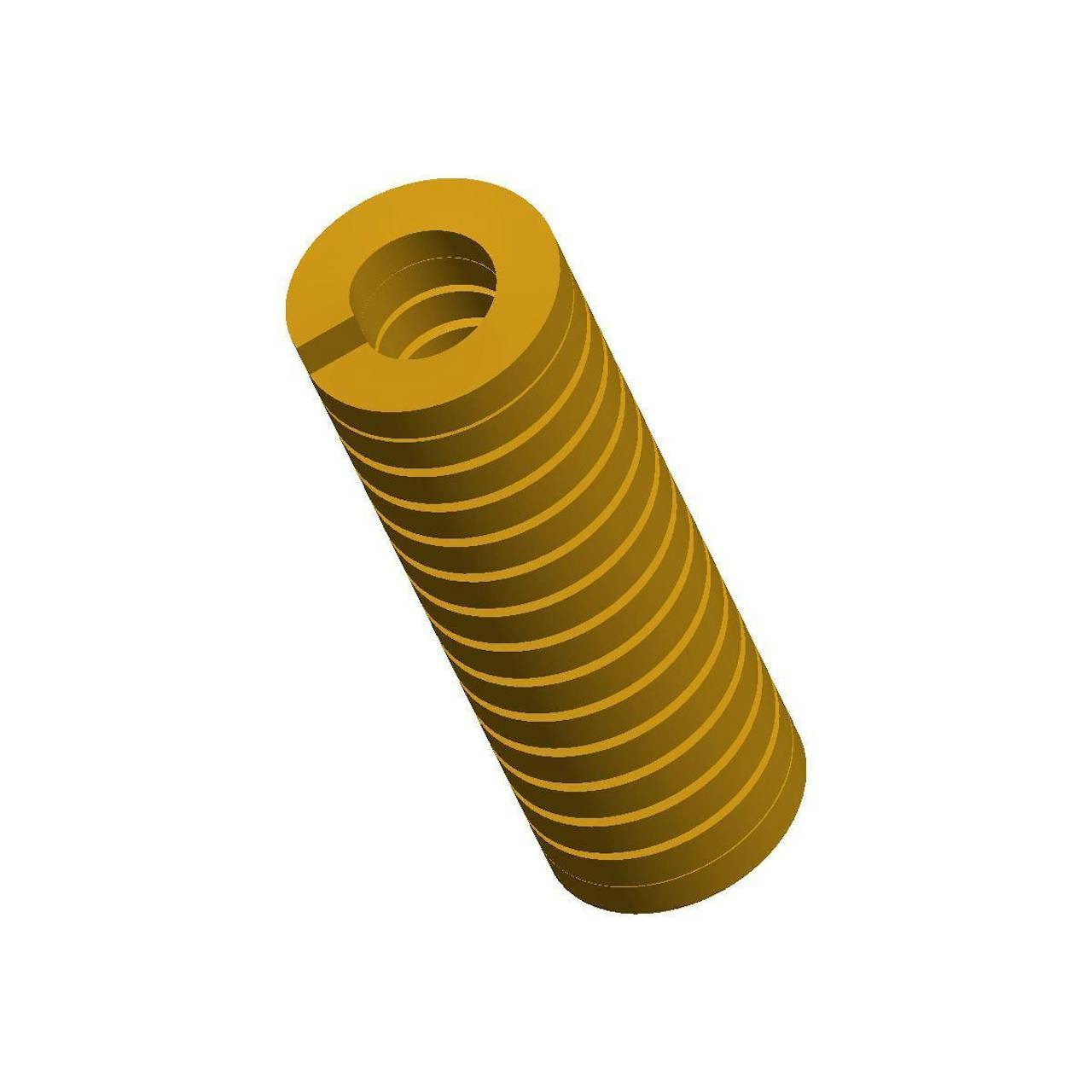

D-1365CS - 5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 534 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Deflection For Long Life 1 in
Display Name D-1365
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 5 in
Hole Size 1.5 in
Long Life Deflection Force 712 lb
Material Chrome Alloy
Maximum Deflection 1.5 in
Maximum Deflection Force 1068 lb
Measurement Units Standard
Rate 712 lbs/in
Rod Size 0.75 in
SKU D-1365CS
Wire Diameter 0.35 in x 0.225 in
Specs (in metric)
Label Value
Average Life Deflection Force 242.18 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Deflection For Long Life 25.4 mm
Display Name D-1365
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 127 mm
Hole Size 38.1 mm
Long Life Deflection Force 322.9 kg
Material Chrome Alloy
Maximum Deflection 38.1 mm
Maximum Deflection Force 484.35 kg
Measurement Units Standard
Rate 124.67 N/mm
Rod Size 19.05 mm
SKU D-1365CS
Wire Diameter 8.89 mm x 5.72 mm
