Century Spring

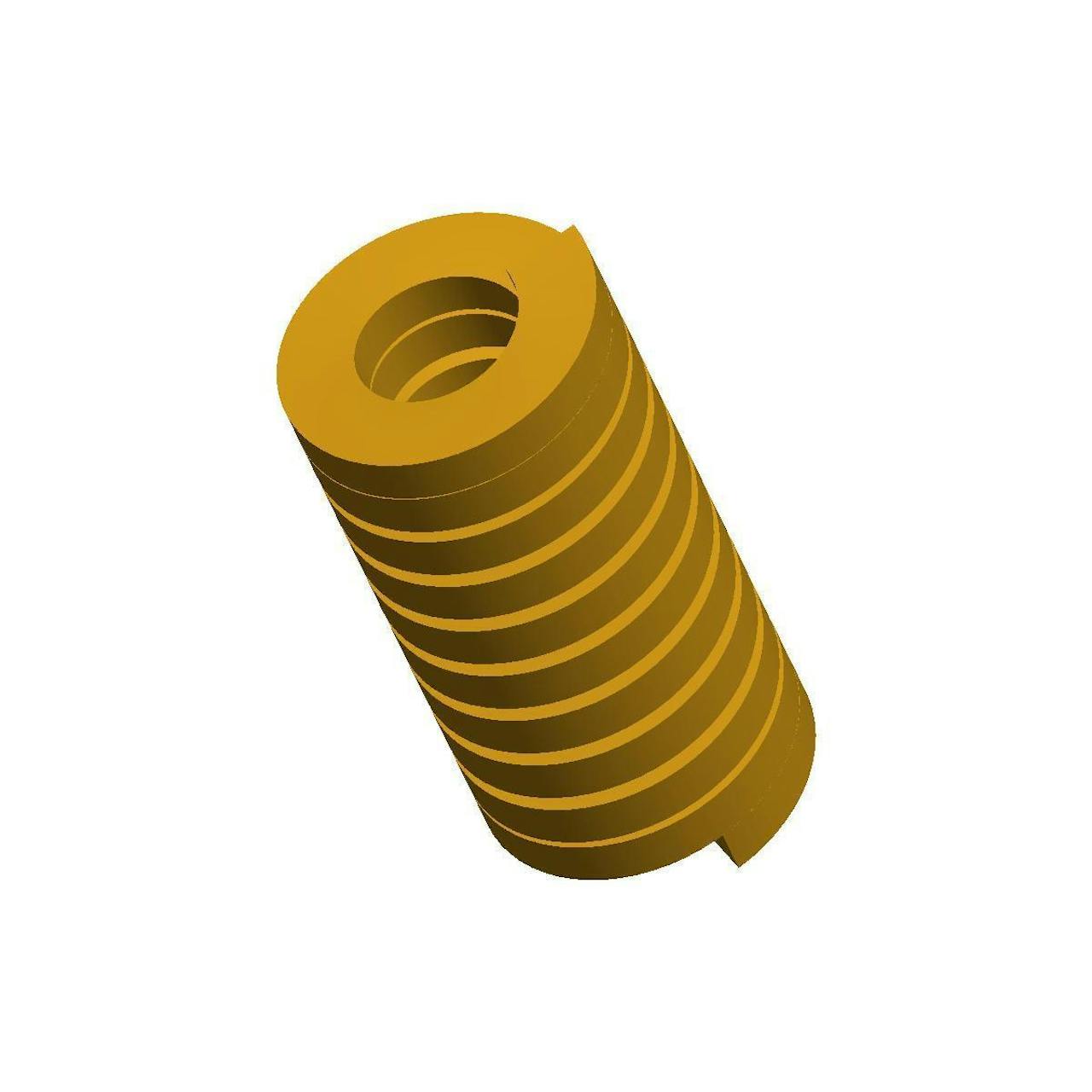

D-1362CS - 3.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 559 lb
Brand Century Spring
Deflection For Average Life 0.53 in
Deflection For Long Life 0.7 in
Display Name D-1362
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 3.5 in
Hole Size 1.5 in
Long Life Deflection Force 745 lb
Material Chrome Alloy
Maximum Deflection 1.05 in
Maximum Deflection Force 1117 lb
Measurement Units Standard
Rate 1064 lbs/in
Rod Size 0.75 in
SKU D-1362CS
Wire Diameter 0.35 in x 0.225 in
Specs (in metric)
Label Value
Average Life Deflection Force 253.51 kg
Brand Century Spring
Deflection For Average Life 13.46 mm
Deflection For Long Life 17.78 mm
Display Name D-1362
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 88.9 mm
Hole Size 38.1 mm
Long Life Deflection Force 337.87 kg
Material Chrome Alloy
Maximum Deflection 26.67 mm
Maximum Deflection Force 506.58 kg
Measurement Units Standard
Rate 186.31 N/mm
Rod Size 19.05 mm
SKU D-1362CS
Wire Diameter 8.89 mm x 5.72 mm
