Century Spring

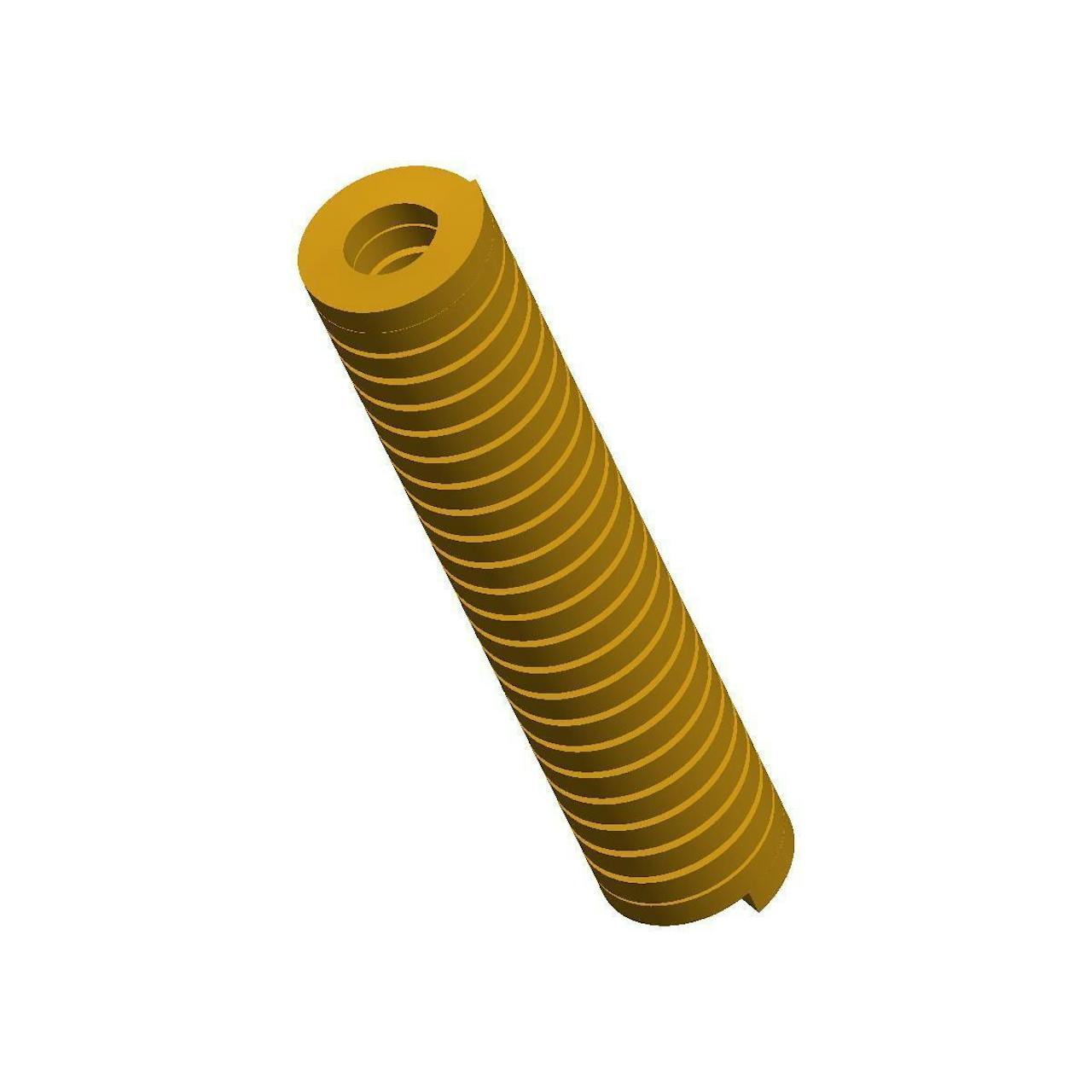

D-1356CS - 7 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

7 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 386 lb
Brand Century Spring
Deflection For Average Life 1.05 in
Deflection For Long Life 1.4 in
Display Name D-1356
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 7 in
Hole Size 1.25 in
Long Life Deflection Force 515 lb
Material Chrome Alloy
Maximum Deflection 2.1 in
Maximum Deflection Force 773 lb
Measurement Units Standard
Rate 368 lbs/in
Rod Size 0.625 in
SKU D-1356CS
Wire Diameter 0.295 in x 0.2 in
Specs (in metric)
Label Value
Average Life Deflection Force 175.06 kg
Brand Century Spring
Deflection For Average Life 26.67 mm
Deflection For Long Life 35.56 mm
Display Name D-1356
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 177.8 mm
Hole Size 31.75 mm
Long Life Deflection Force 233.56 kg
Material Chrome Alloy
Maximum Deflection 53.34 mm
Maximum Deflection Force 350.57 kg
Measurement Units Standard
Rate 64.44 N/mm
Rod Size 15.88 mm
SKU D-1356CS
Wire Diameter 7.49 mm x 5.08 mm
