Century Spring

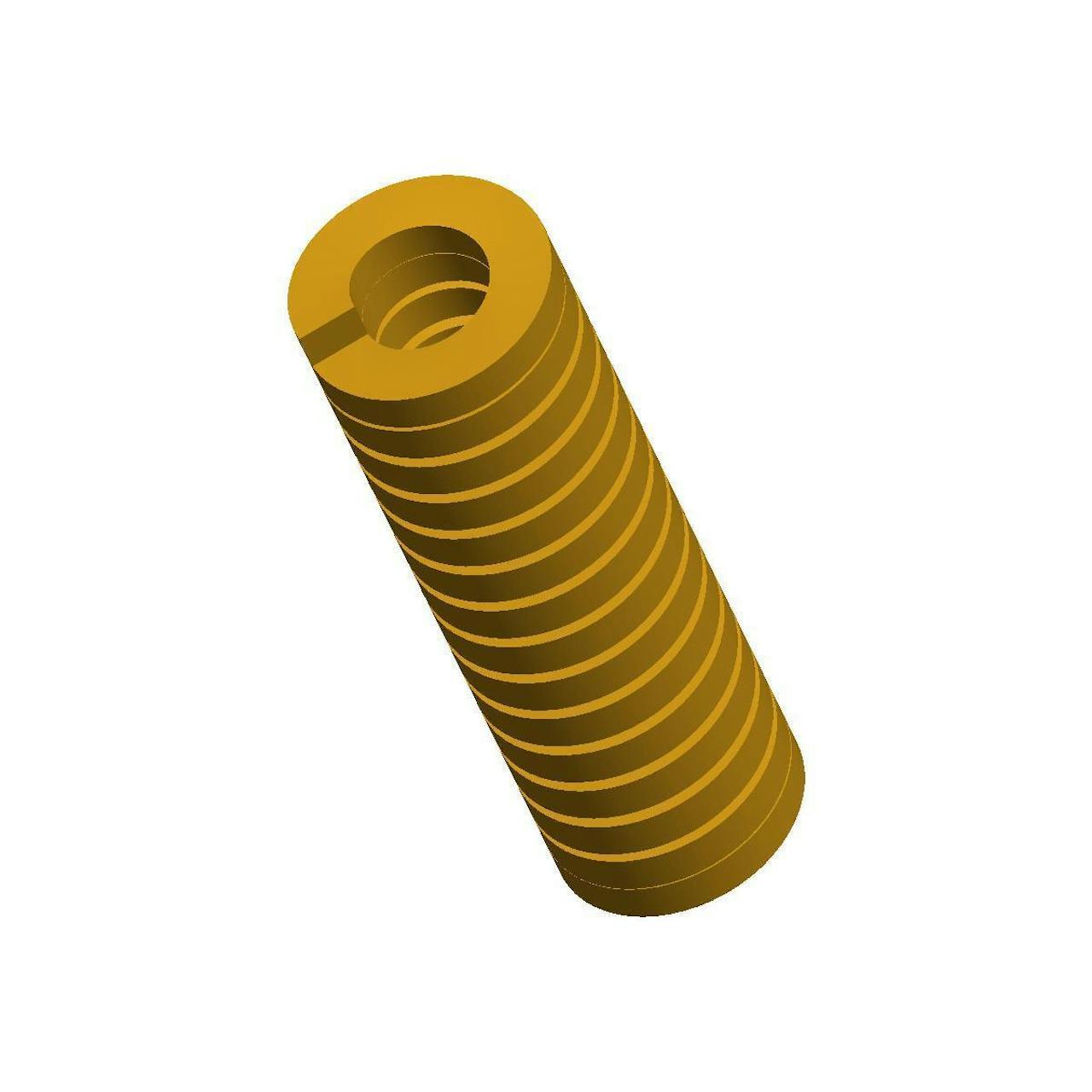

D-1352CS - 4.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

4.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 394 lb
Brand Century Spring
Deflection For Average Life 0.68 in
Deflection For Long Life 0.9 in
Display Name D-1352
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 4.5 in
Hole Size 1.25 in
Long Life Deflection Force 526 lb
Material Chrome Alloy
Maximum Deflection 1.35 in
Maximum Deflection Force 788 lb
Measurement Units Standard
Rate 584 lbs/in
Rod Size 0.625 in
SKU D-1352CS
Wire Diameter 0.295 in x 0.2 in
Specs (in metric)
Label Value
Average Life Deflection Force 178.68 kg
Brand Century Spring
Deflection For Average Life 17.27 mm
Deflection For Long Life 22.86 mm
Display Name D-1352
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 114.3 mm
Hole Size 31.75 mm
Long Life Deflection Force 238.55 kg
Material Chrome Alloy
Maximum Deflection 34.29 mm
Maximum Deflection Force 357.37 kg
Measurement Units Standard
Rate 102.26 N/mm
Rod Size 15.88 mm
SKU D-1352CS
Wire Diameter 7.49 mm x 5.08 mm
