Century Spring

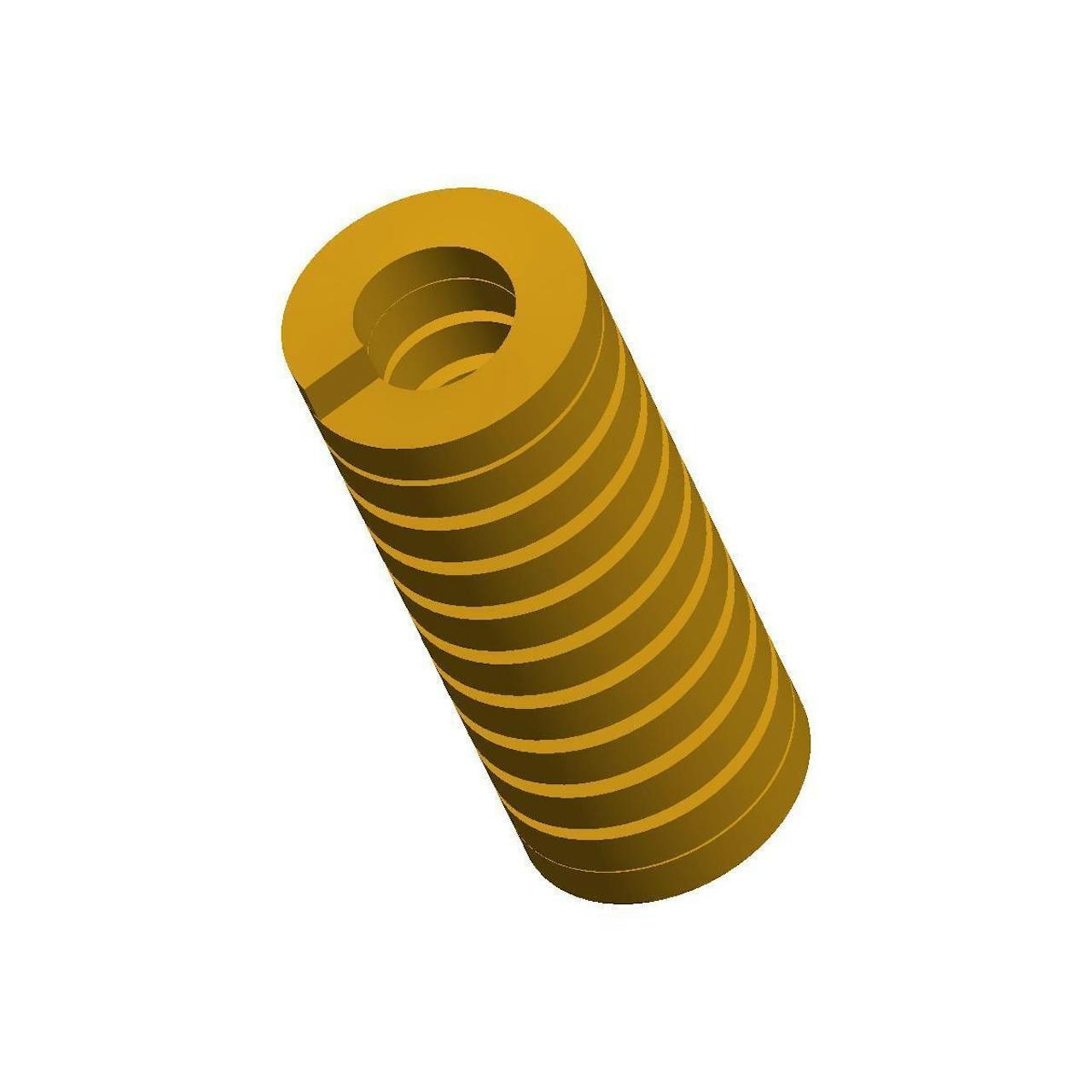

D-1350CS - 3.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 395 lb
Brand Century Spring
Deflection For Average Life 0.53 in
Deflection For Long Life 0.7 in
Display Name D-1350
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 3.5 in
Hole Size 1.25 in
Long Life Deflection Force 526 lb
Material Chrome Alloy
Maximum Deflection 1.05 in
Maximum Deflection Force 790 lb
Measurement Units Standard
Rate 752 lbs/in
Rod Size 0.625 in
SKU D-1350CS
Wire Diameter 0.295 in x 0.2 in
Specs (in metric)
Label Value
Average Life Deflection Force 179.14 kg
Brand Century Spring
Deflection For Average Life 13.46 mm
Deflection For Long Life 17.78 mm
Display Name D-1350
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 88.9 mm
Hole Size 31.75 mm
Long Life Deflection Force 238.55 kg
Material Chrome Alloy
Maximum Deflection 26.67 mm
Maximum Deflection Force 358.28 kg
Measurement Units Standard
Rate 131.68 N/mm
Rod Size 15.88 mm
SKU D-1350CS
Wire Diameter 7.49 mm x 5.08 mm
