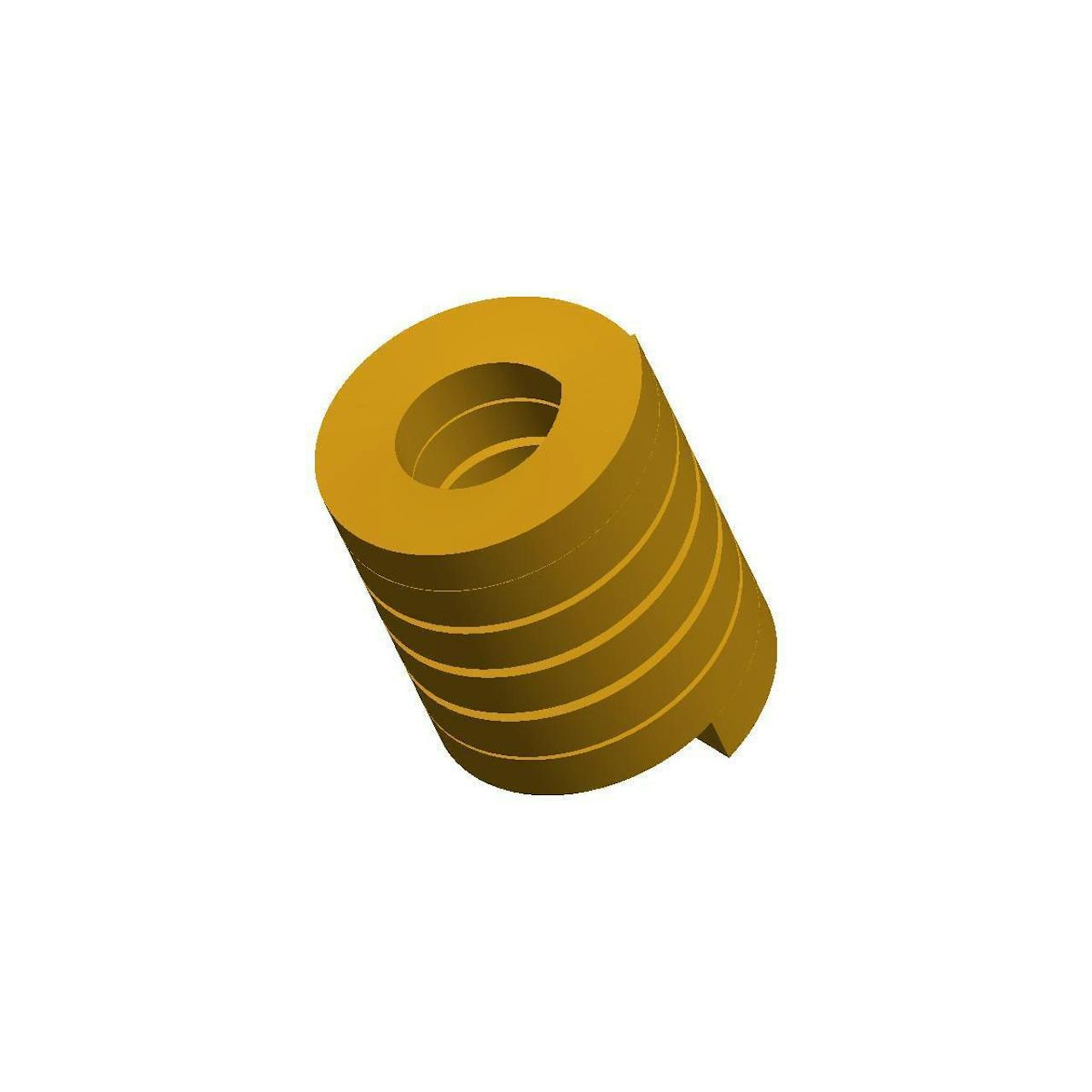

D-1346-ACS - 1.75 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

1.75 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 478 lb
Brand Century Spring
Deflection For Average Life 0.26 in
Deflection For Long Life 0.35 in
Display Name D-1346-A
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 1.75 in
Hole Size 1.25 in
Long Life Deflection Force 636 lb
Material Chrome Alloy
Maximum Deflection 0.53 in
Maximum Deflection Force 953 lb
Measurement Units Standard
Rate 1816 lbs/in
Rod Size 0.625 in
SKU D-1346-ACS
Wire Diameter 0.295 in x 0.2 in
Specs (in metric)
Label Value
Average Life Deflection Force 216.78 kg
Brand Century Spring
Deflection For Average Life 6.6 mm
Deflection For Long Life 8.89 mm
Display Name D-1346-A
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 44.45 mm
Hole Size 31.75 mm
Long Life Deflection Force 288.44 kg
Material Chrome Alloy
Maximum Deflection 13.46 mm
Maximum Deflection Force 432.2 kg
Measurement Units Standard
Rate 317.98 N/mm
Rod Size 15.88 mm
SKU D-1346-ACS
Wire Diameter 7.49 mm x 5.08 mm
