Century Spring

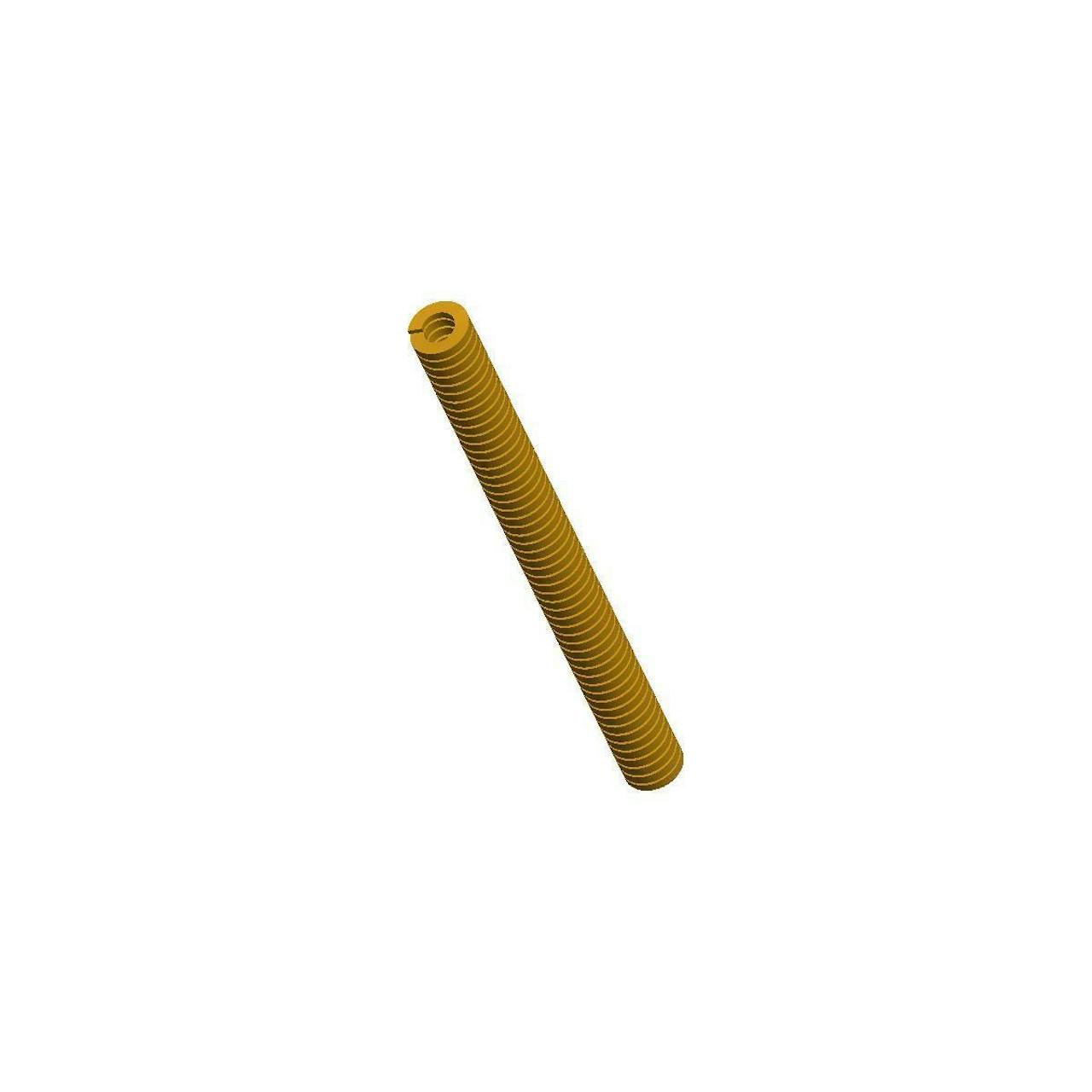

D-1345-ACS - 12 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 216 lb
Brand Century Spring
Deflection For Average Life 1.8 in
Deflection For Long Life 2.4 in
Display Name D-1345-A
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 12 in
Hole Size 1 in
Long Life Deflection Force 288 lb
Material Chrome Alloy
Maximum Deflection 3.6 in
Maximum Deflection Force 432 lb
Measurement Units Standard
Rate 120 lbs/in
Rod Size 0.5 in
SKU D-1345-ACS
Wire Diameter 0.225 in x 0.158 in
Specs (in metric)
Label Value
Average Life Deflection Force 97.96 kg
Brand Century Spring
Deflection For Average Life 45.72 mm
Deflection For Long Life 60.96 mm
Display Name D-1345-A
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 304.8 mm
Hole Size 25.4 mm
Long Life Deflection Force 130.61 kg
Material Chrome Alloy
Maximum Deflection 91.44 mm
Maximum Deflection Force 195.92 kg
Measurement Units Standard
Rate 21.01 N/mm
Rod Size 12.7 mm
SKU D-1345-ACS
Wire Diameter 5.72 mm x 4.01 mm
