Century Spring

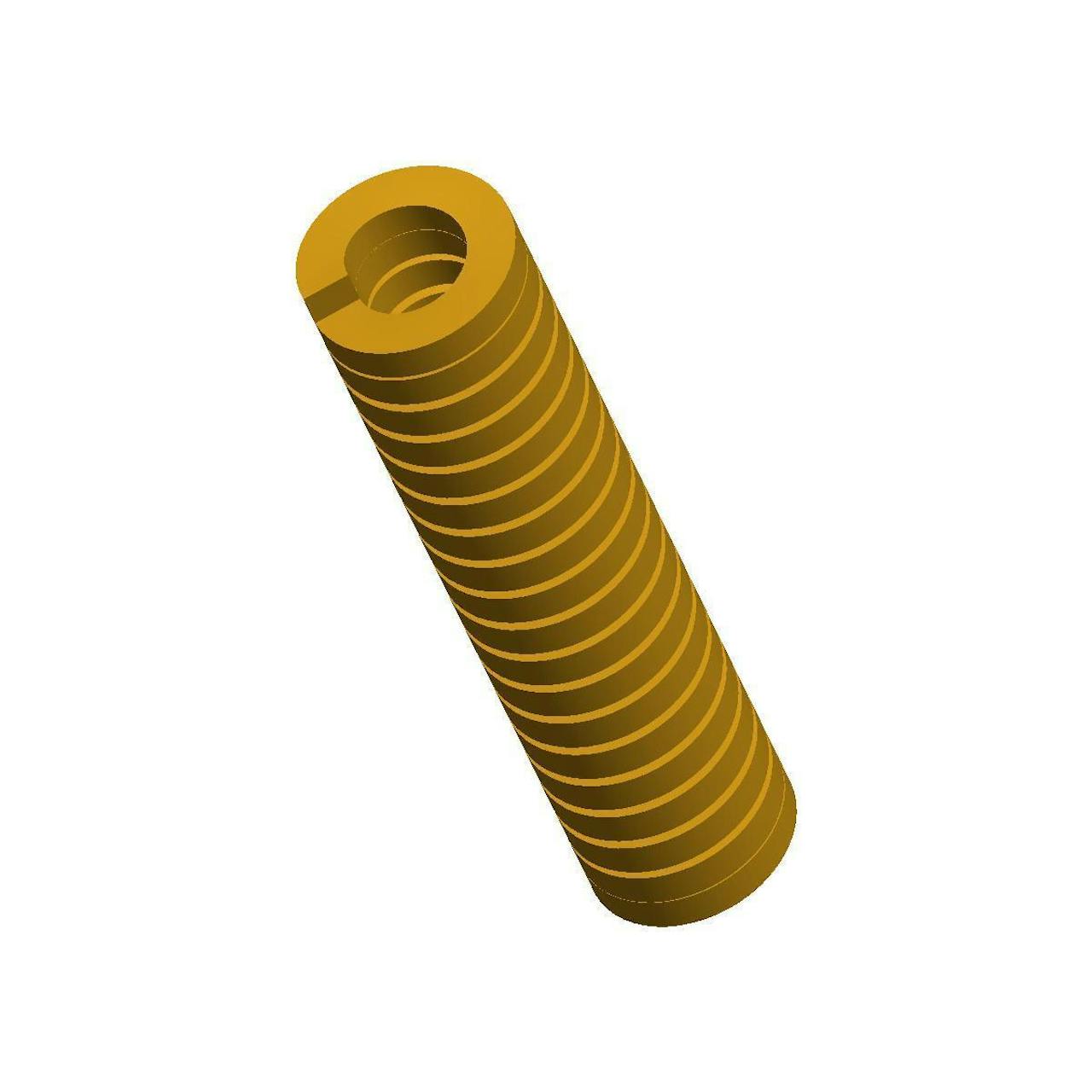

D-1327CS - 3.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 139 lb
Brand Century Spring
Deflection For Average Life 0.53 in
Deflection For Long Life 0.7 in
Display Name D-1327
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 3.5 in
Hole Size 0.75 in
Long Life Deflection Force 185 lb
Material Chrome Alloy
Maximum Deflection 1.05 in
Maximum Deflection Force 277 lb
Measurement Units Standard
Rate 264 lbs/in
Rod Size 0.375 in
SKU D-1327CS
Wire Diameter 0.165 in x 0.125 in
Specs (in metric)
Label Value
Average Life Deflection Force 63.04 kg
Brand Century Spring
Deflection For Average Life 13.46 mm
Deflection For Long Life 17.78 mm
Display Name D-1327
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 88.9 mm
Hole Size 19.05 mm
Long Life Deflection Force 83.9 kg
Material Chrome Alloy
Maximum Deflection 26.67 mm
Maximum Deflection Force 125.62 kg
Measurement Units Standard
Rate 46.23 N/mm
Rod Size 9.53 mm
SKU D-1327CS
Wire Diameter 4.19 mm x 3.18 mm
