Century Spring

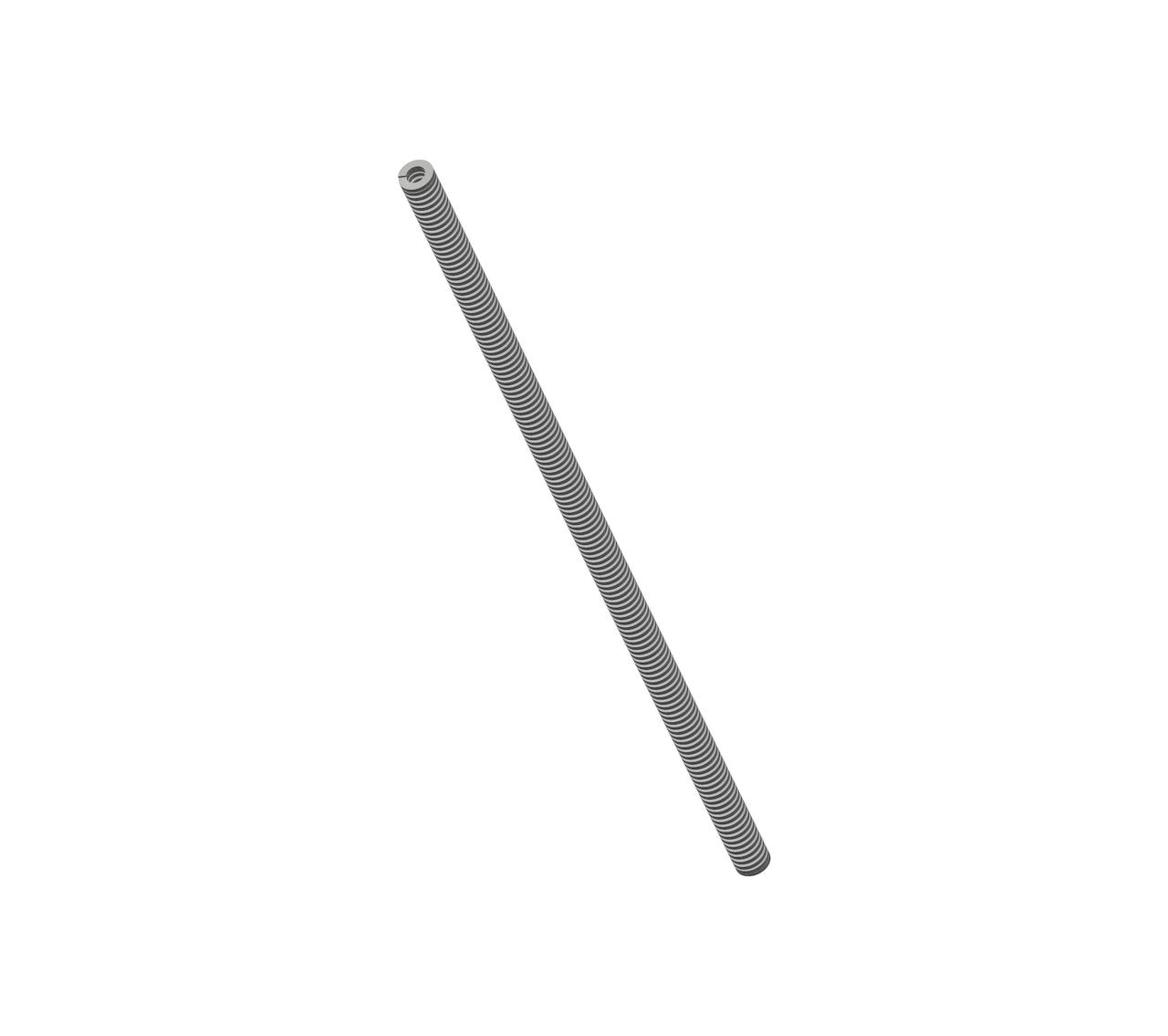

D-129CS - 36 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

36 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name D-129
Finish None
Free Length 36 in
Hole Diameter 1.25 in
Material Oil Tempered
Measurement Units Standard
Rod Diameter 0.625 in
SKU D-129CS
Solid Load 675 lb
Wire Diameter 0.281 in x 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name D-129
Finish None
Free Length 914.4 mm
Hole Diameter 31.75 mm
Material Oil Tempered
Measurement Units Standard
Rod Diameter 15.88 mm
SKU D-129CS
Solid Load 306.12 kg
Wire Diameter 7.14 mm x 3.96 mm
