Century Spring

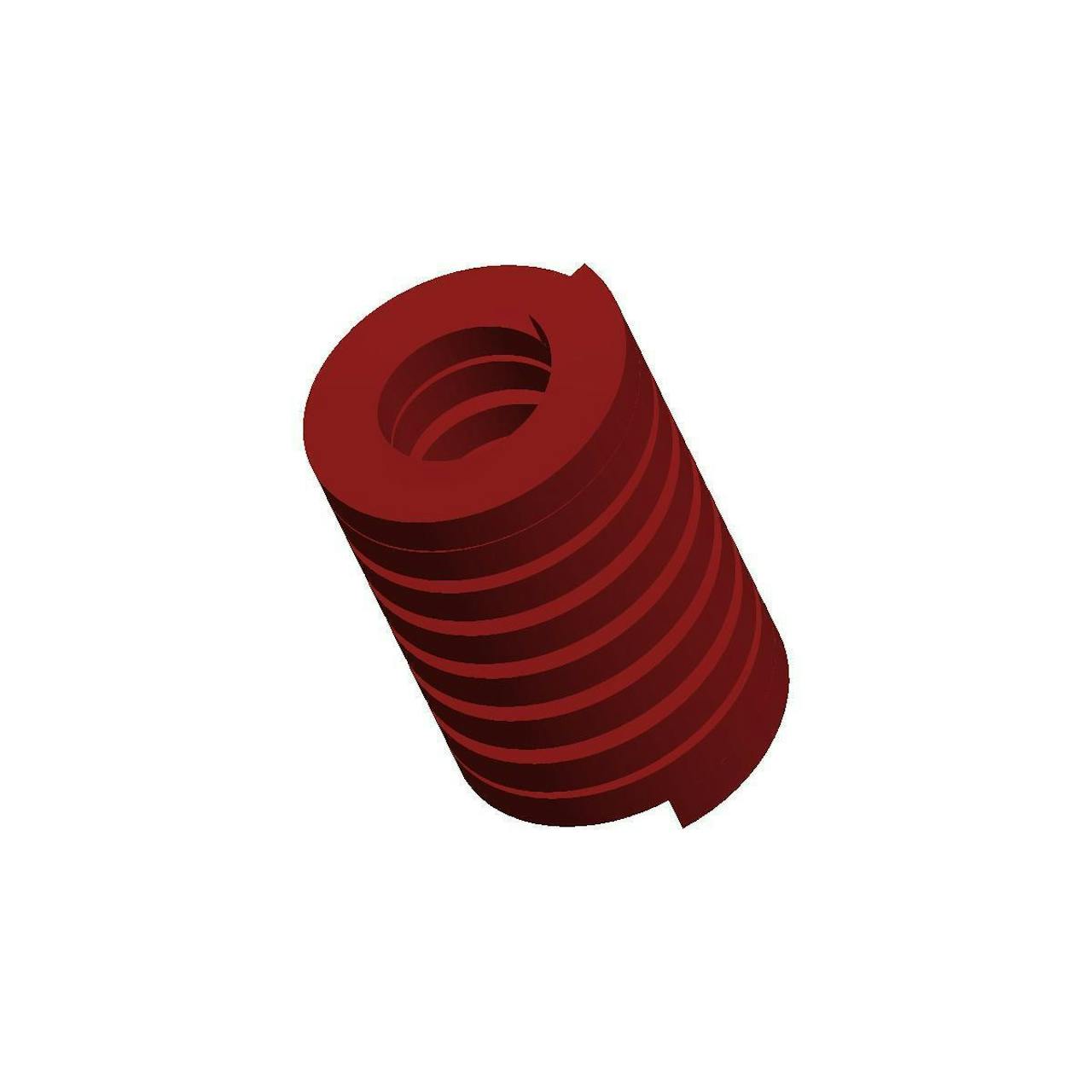

D-1273CS - 3.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 560 lb
Brand Century Spring
Deflection For Average Life 0.7 in
Deflection For Long Life 0.88 in
Display Name D-1273
Duty Load Medium
Finish None
Finish Color Red
Free Length 3.5 in
Hole Size 2 in
Long Life Deflection Force 700 lb
Material Chrome Alloy
Maximum Deflection 1.3 in
Maximum Deflection Force 1036 lb
Measurement Units Standard
Rate 800 lbs/in
Rod Size 1 in
SKU D-1273CS
Wire Diameter 0.438 in x 0.255 in
Specs (in metric)
Label Value
Average Life Deflection Force 253.97 kg
Brand Century Spring
Deflection For Average Life 17.78 mm
Deflection For Long Life 22.35 mm
Display Name D-1273
Duty Load Medium
Finish None
Finish Color Red
Free Length 88.9 mm
Hole Size 50.8 mm
Long Life Deflection Force 317.46 kg
Material Chrome Alloy
Maximum Deflection 33.02 mm
Maximum Deflection Force 469.84 kg
Measurement Units Standard
Rate 140.08 N/mm
Rod Size 25.4 mm
SKU D-1273CS
Wire Diameter 11.13 mm x 6.48 mm
