Century Spring

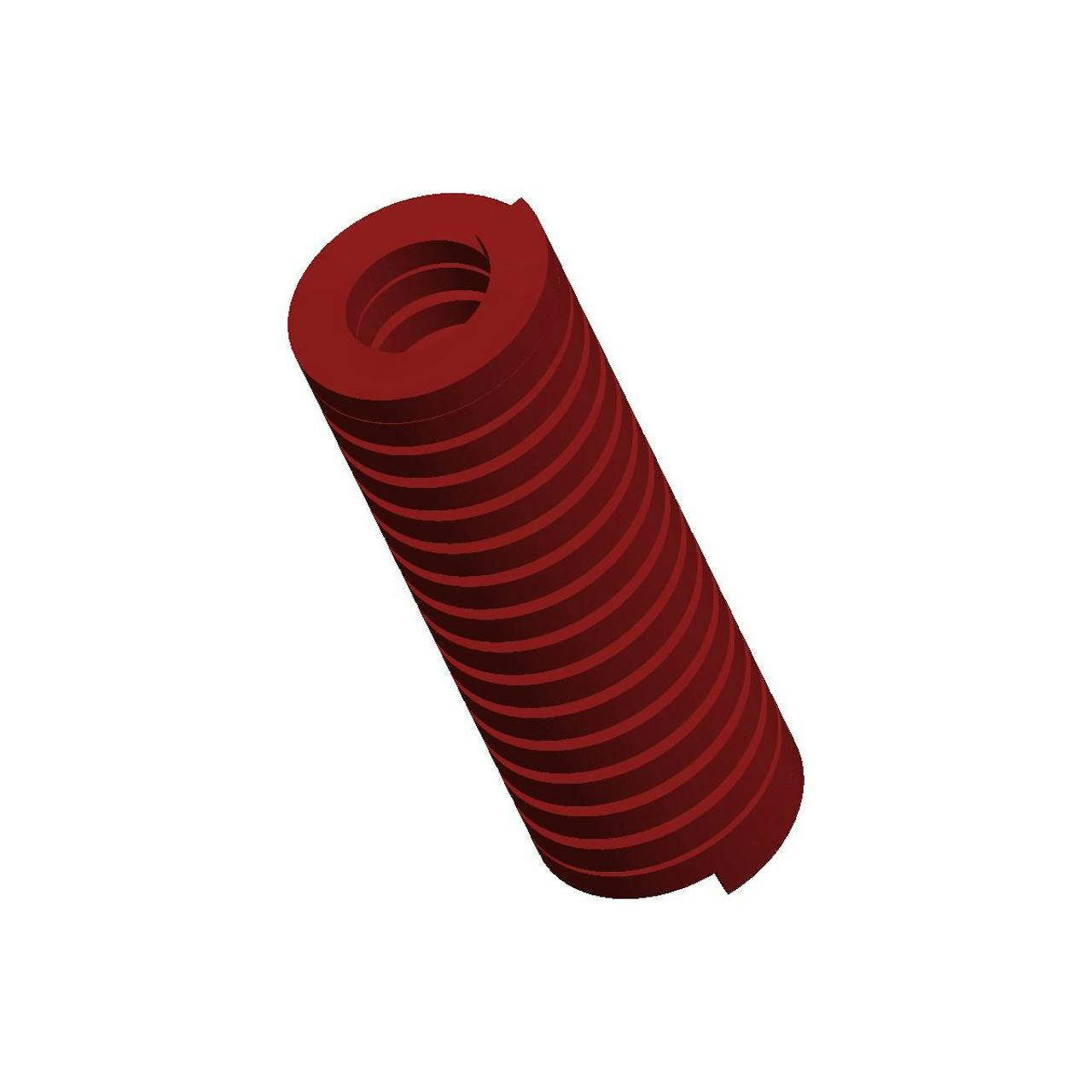

D-1265CS - 5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 368 lb
Brand Century Spring
Deflection For Average Life 1 in
Deflection For Long Life 1.25 in
Display Name D-1265
Duty Load Medium
Finish None
Finish Color Red
Free Length 5 in
Hole Size 1.5 in
Long Life Deflection Force 460 lb
Material Chrome Alloy
Maximum Deflection 1.85 in
Maximum Deflection Force 681 lb
Measurement Units Standard
Rate 368 lbs/in
Rod Size 0.75 in
SKU D-1265CS
Wire Diameter 0.312 in x 0.188 in
Specs (in metric)
Label Value
Average Life Deflection Force 166.89 kg
Brand Century Spring
Deflection For Average Life 25.4 mm
Deflection For Long Life 31.75 mm
Display Name D-1265
Duty Load Medium
Finish None
Finish Color Red
Free Length 127 mm
Hole Size 38.1 mm
Long Life Deflection Force 208.62 kg
Material Chrome Alloy
Maximum Deflection 46.99 mm
Maximum Deflection Force 308.84 kg
Measurement Units Standard
Rate 64.44 N/mm
Rod Size 19.05 mm
SKU D-1265CS
Wire Diameter 7.92 mm x 4.78 mm
