Century Spring

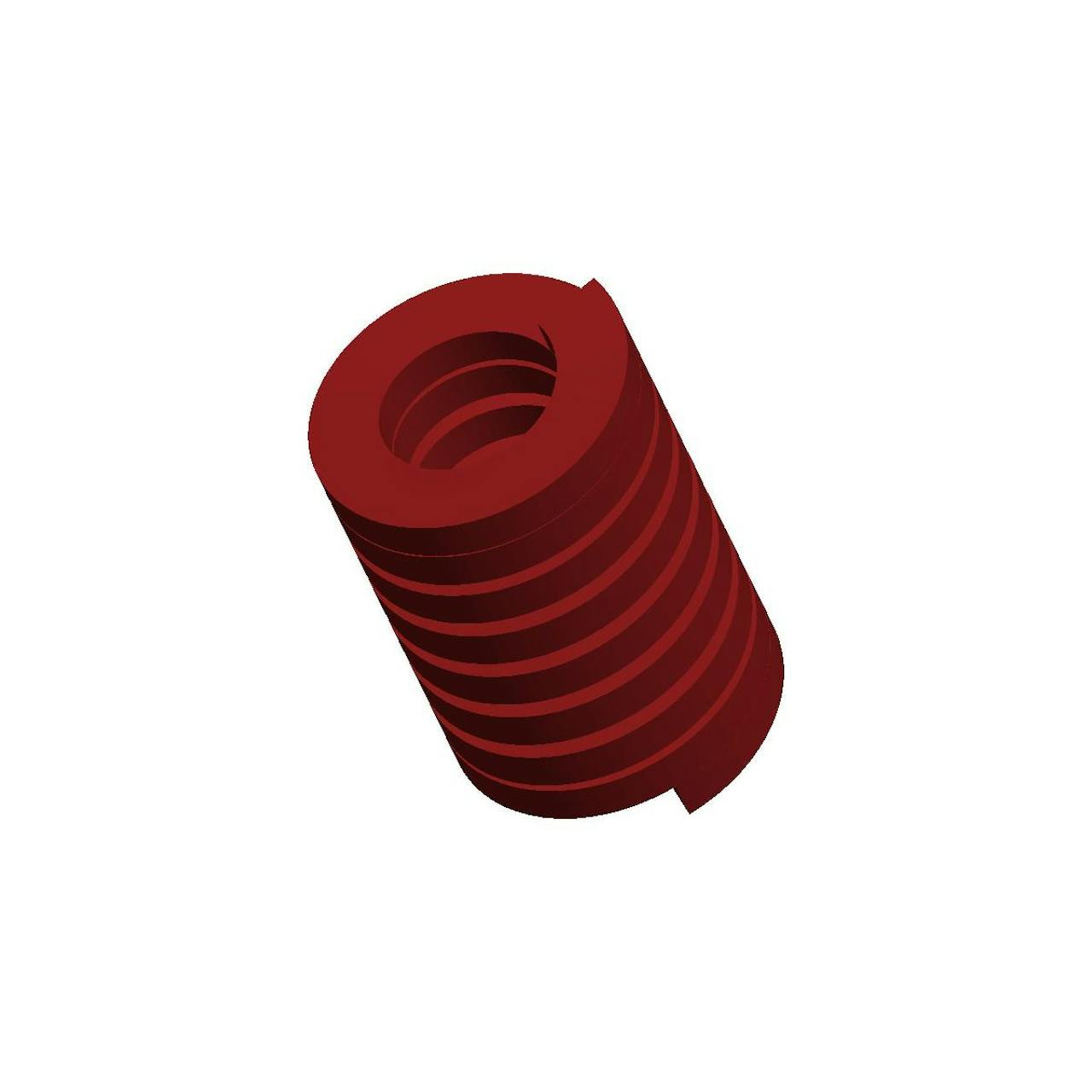

D-1260CS - 2.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

2.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 428 lb
Brand Century Spring
Deflection For Average Life 0.5 in
Deflection For Long Life 0.63 in
Display Name D-1260
Duty Load Medium
Finish None
Finish Color Red
Free Length 2.5 in
Hole Size 1.5 in
Long Life Deflection Force 535 lb
Material Chrome Alloy
Maximum Deflection 0.93 in
Maximum Deflection Force 792 lb
Measurement Units Standard
Rate 856 lbs/in
Rod Size 0.75 in
SKU D-1260CS
Wire Diameter 0.312 in x 0.188 in
Specs (in metric)
Label Value
Average Life Deflection Force 194.1 kg
Brand Century Spring
Deflection For Average Life 12.7 mm
Deflection For Long Life 16 mm
Display Name D-1260
Duty Load Medium
Finish None
Finish Color Red
Free Length 63.5 mm
Hole Size 38.1 mm
Long Life Deflection Force 242.63 kg
Material Chrome Alloy
Maximum Deflection 23.62 mm
Maximum Deflection Force 359.18 kg
Measurement Units Standard
Rate 149.89 N/mm
Rod Size 19.05 mm
SKU D-1260CS
Wire Diameter 7.92 mm x 4.78 mm
