Century Spring

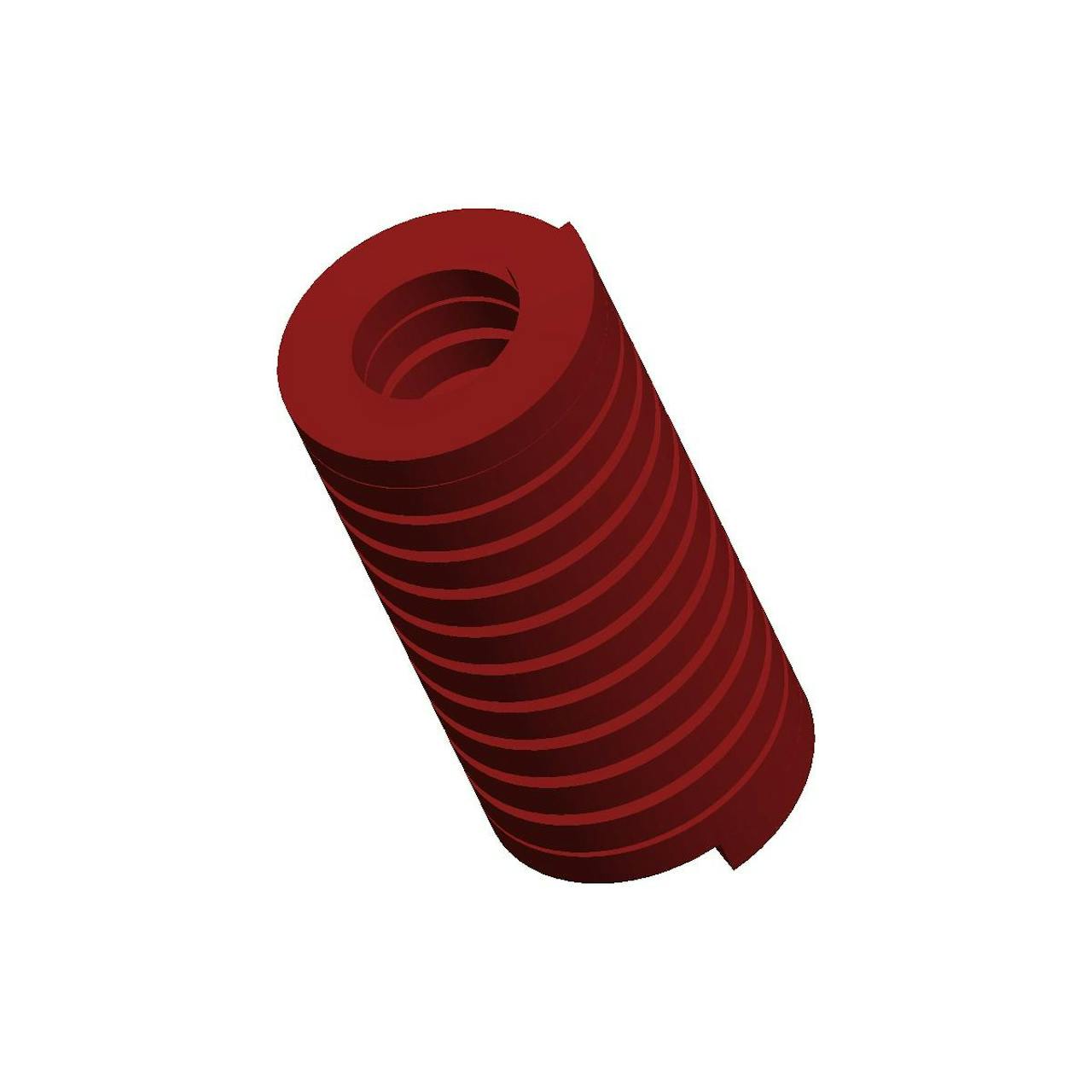

D-1249CS - 3 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 307 lb
Brand Century Spring
Deflection For Average Life 0.6 in
Deflection For Long Life 0.75 in
Display Name D-1249
Duty Load Medium
Finish None
Finish Color Red
Free Length 3 in
Hole Size 1.25 in
Long Life Deflection Force 384 lb
Material Chrome Alloy
Maximum Deflection 1.11 in
Maximum Deflection Force 568 lb
Measurement Units Standard
Rate 512 lbs/in
Rod Size 0.625 in
SKU D-1249CS
Wire Diameter 0.281 in x 0.156 in
Specs (in metric)
Label Value
Average Life Deflection Force 139.23 kg
Brand Century Spring
Deflection For Average Life 15.24 mm
Deflection For Long Life 19.05 mm
Display Name D-1249
Duty Load Medium
Finish None
Finish Color Red
Free Length 76.2 mm
Hole Size 31.75 mm
Long Life Deflection Force 174.15 kg
Material Chrome Alloy
Maximum Deflection 28.19 mm
Maximum Deflection Force 257.6 kg
Measurement Units Standard
Rate 89.65 N/mm
Rod Size 15.88 mm
SKU D-1249CS
Wire Diameter 7.14 mm x 3.96 mm
