Century Spring

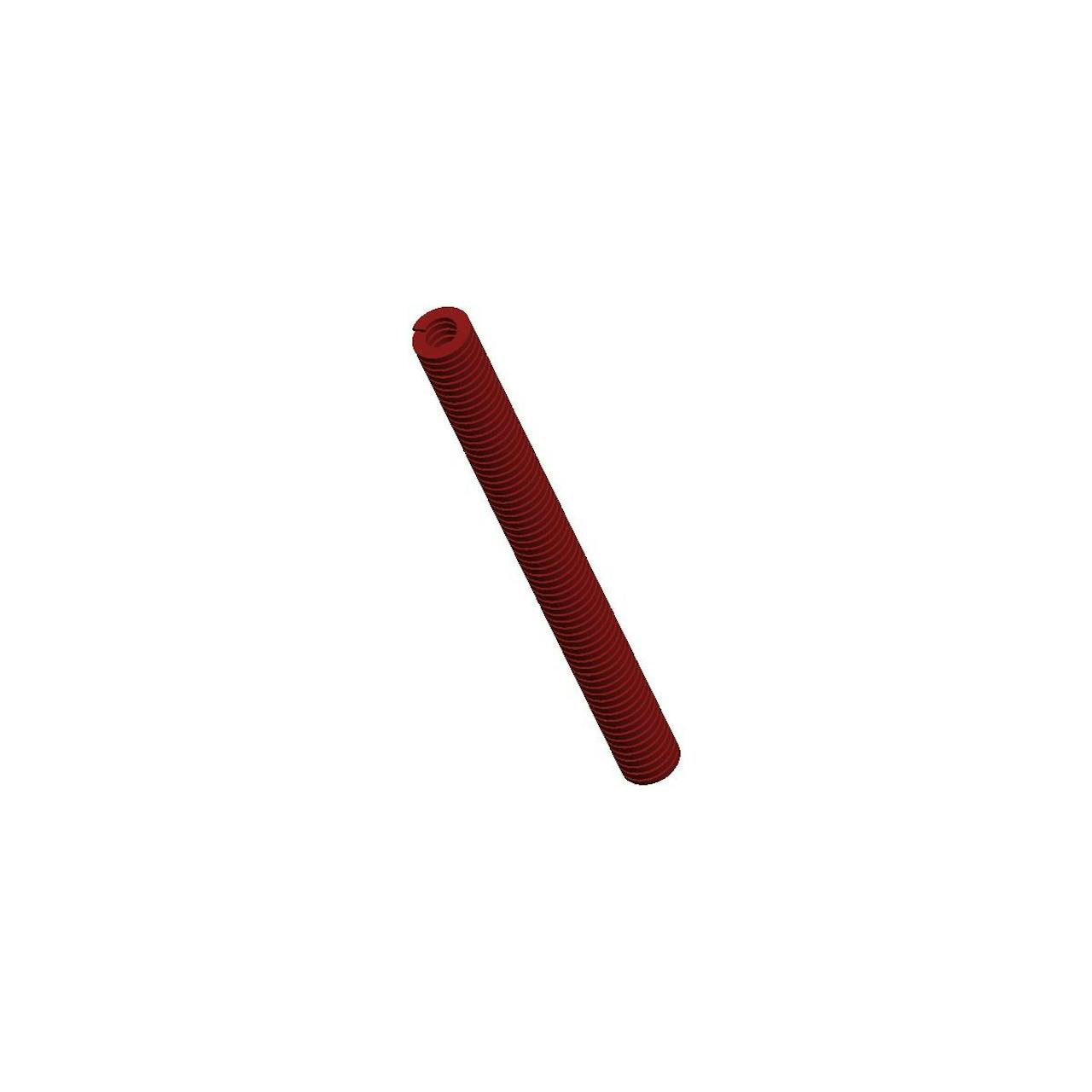

D-1245-ACS - 12 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 134 lb
Brand Century Spring
Deflection For Average Life 2.4 in
Deflection For Long Life 3 in
Display Name D-1245-A
Duty Load Medium
Finish None
Finish Color Red
Free Length 12 in
Hole Size 1 in
Long Life Deflection Force 168 lb
Material Chrome Alloy
Maximum Deflection 4.44 in
Maximum Deflection Force 249 lb
Measurement Units Standard
Rate 56 lbs/in
Rod Size 0.5 in
SKU D-1245-ACS
Wire Diameter 0.218 in x 0.115 in
Specs (in metric)
Label Value
Average Life Deflection Force 60.77 kg
Brand Century Spring
Deflection For Average Life 60.96 mm
Deflection For Long Life 76.2 mm
Display Name D-1245-A
Duty Load Medium
Finish None
Finish Color Red
Free Length 304.8 mm
Hole Size 25.4 mm
Long Life Deflection Force 76.19 kg
Material Chrome Alloy
Maximum Deflection 112.78 mm
Maximum Deflection Force 112.93 kg
Measurement Units Standard
Rate 9.81 N/mm
Rod Size 12.7 mm
SKU D-1245-ACS
Wire Diameter 5.54 mm x 2.92 mm
