Century Spring

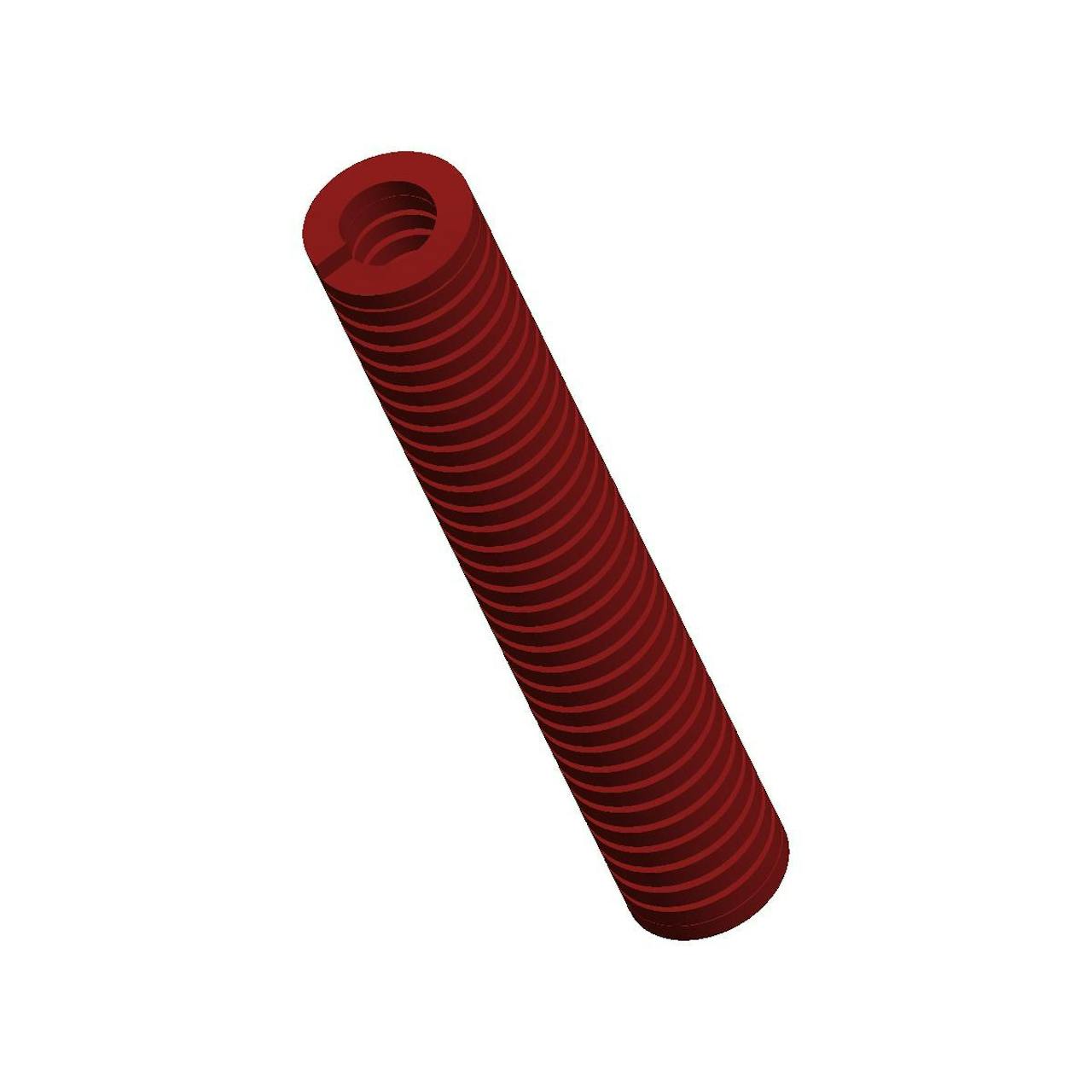

D-1230CS - 5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 104 lb
Brand Century Spring
Deflection For Average Life 1 in
Deflection For Long Life 1.25 in
Display Name D-1230
Duty Load Medium
Finish None
Finish Color Red
Free Length 5 in
Hole Size 0.75 in
Long Life Deflection Force 130 lb
Material Chrome Alloy
Maximum Deflection 1.85 in
Maximum Deflection Force 192 lb
Measurement Units Standard
Rate 104 lbs/in
Rod Size 0.375 in
SKU D-1230CS
Wire Diameter 0.156 in x 0.093 in
Specs (in metric)
Label Value
Average Life Deflection Force 47.17 kg
Brand Century Spring
Deflection For Average Life 25.4 mm
Deflection For Long Life 31.75 mm
Display Name D-1230
Duty Load Medium
Finish None
Finish Color Red
Free Length 127 mm
Hole Size 19.05 mm
Long Life Deflection Force 58.96 kg
Material Chrome Alloy
Maximum Deflection 46.99 mm
Maximum Deflection Force 87.07 kg
Measurement Units Standard
Rate 18.21 N/mm
Rod Size 9.53 mm
SKU D-1230CS
Wire Diameter 3.96 mm x 2.36 mm
