Century Spring

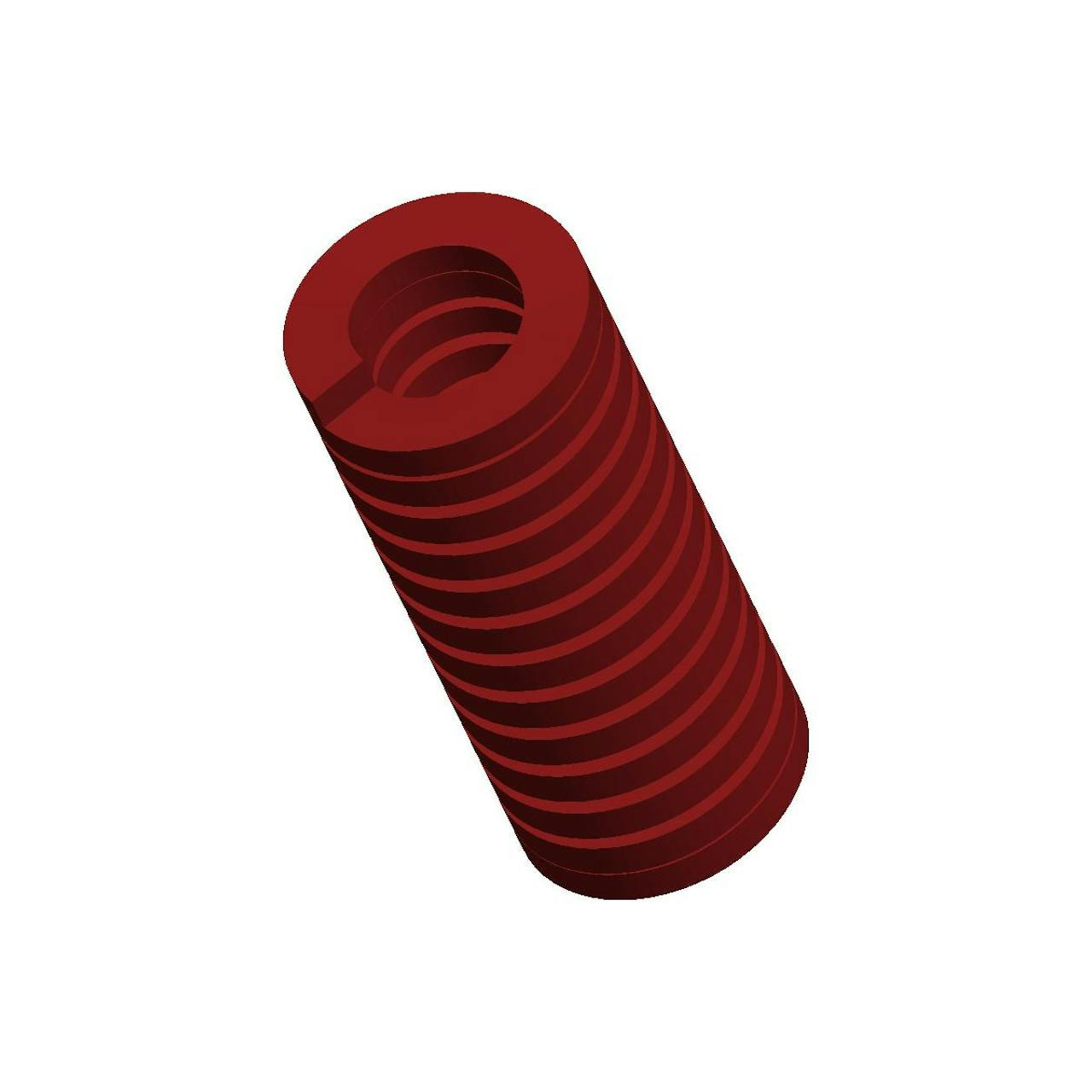

D-1224CS - 2 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

2 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 99 lb
Brand Century Spring
Deflection For Average Life 0.4 in
Deflection For Long Life 0.5 in
Display Name D-1224
Duty Load Medium
Finish None
Finish Color Red
Free Length 2 in
Hole Size 0.75 in
Long Life Deflection Force 124 lb
Material Chrome Alloy
Maximum Deflection 0.74 in
Maximum Deflection Force 184 lb
Measurement Units Standard
Rate 248 lbs/in
Rod Size 0.375 in
SKU D-1224CS
Wire Diameter 0.156 in x 0.093 in
Specs (in metric)
Label Value
Average Life Deflection Force 44.9 kg
Brand Century Spring
Deflection For Average Life 10.16 mm
Deflection For Long Life 12.7 mm
Display Name D-1224
Duty Load Medium
Finish None
Finish Color Red
Free Length 50.8 mm
Hole Size 19.05 mm
Long Life Deflection Force 56.24 kg
Material Chrome Alloy
Maximum Deflection 18.8 mm
Maximum Deflection Force 83.45 kg
Measurement Units Standard
Rate 43.42 N/mm
Rod Size 9.53 mm
SKU D-1224CS
Wire Diameter 3.96 mm x 2.36 mm
