Century Spring

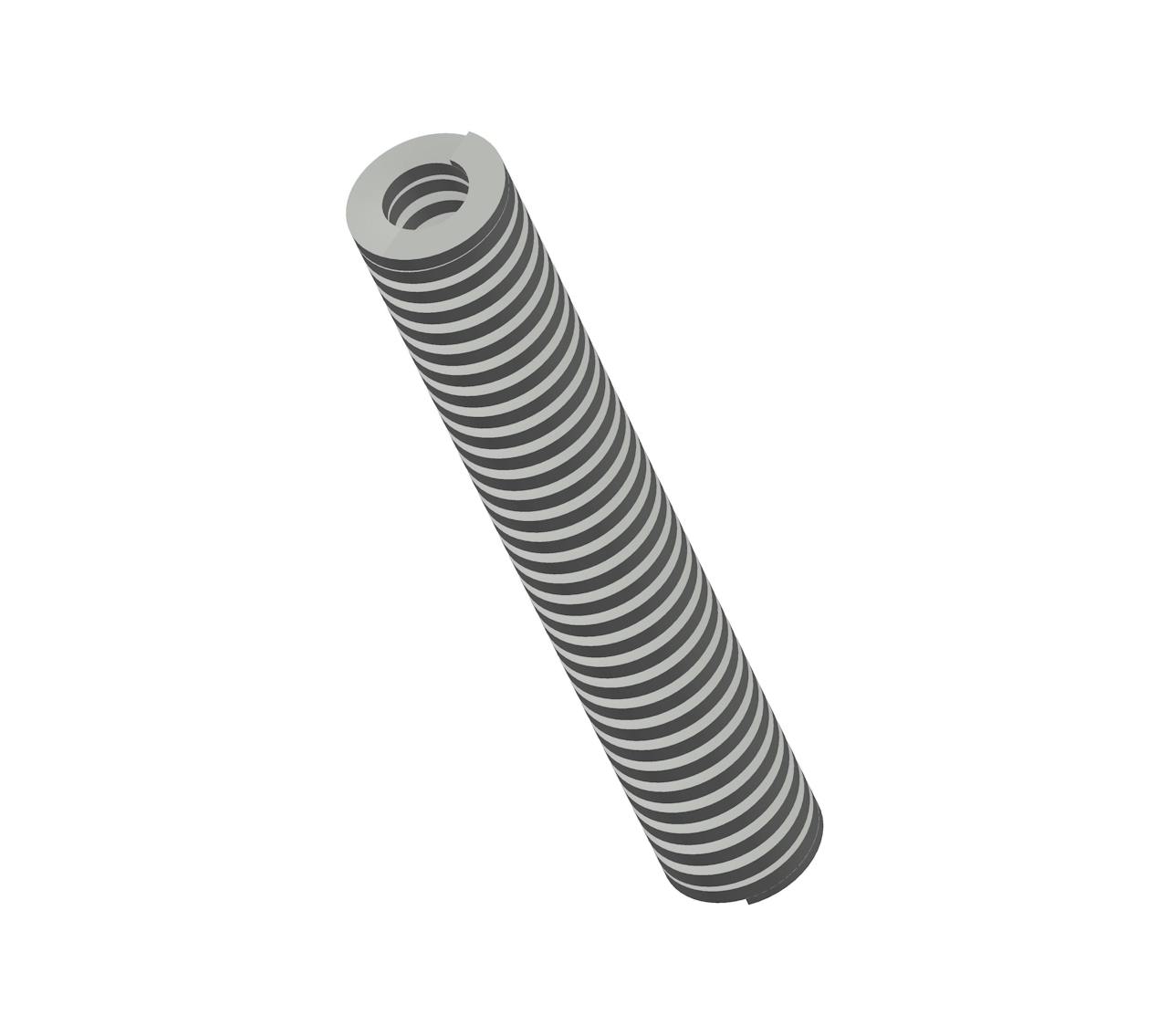

D-121CS - 12 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

12 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 816 lb
Brand Century Spring
Deflection For Average Life 3 in
Display Name D-121
Duty Load Medium
Finish None
Free Length 12 in
Hole Size 2 in
Material Oil Tempered
Maximum Deflection 4.8 in
Maximum Deflection Force 1306 lb
Measurement Units Standard
Rate 272 lbs/in
Rod Size 1 in
SKU D-121CS
Wire Diameter 0.438 in x 0.219 in
Specs (in metric)
Label Value
Average Life Deflection Force 370.07 kg
Brand Century Spring
Deflection For Average Life 76.2 mm
Display Name D-121
Duty Load Medium
Finish None
Free Length 304.8 mm
Hole Size 50.8 mm
Material Oil Tempered
Maximum Deflection 121.92 mm
Maximum Deflection Force 592.29 kg
Measurement Units Standard
Rate 47.63 N/mm
Rod Size 25.4 mm
SKU D-121CS
Wire Diameter 11.13 mm x 5.56 mm
