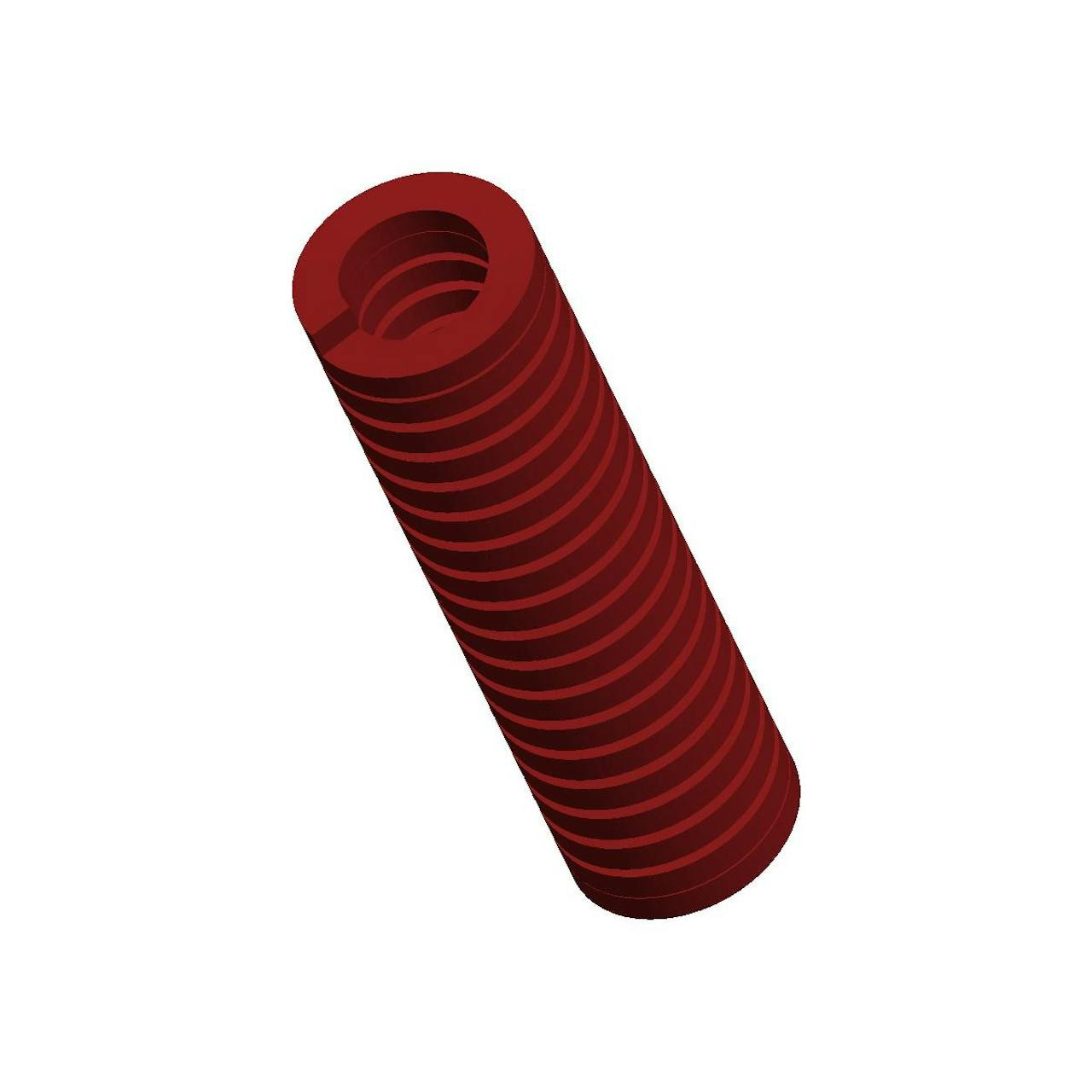

D-1218CS - 2.5 Inch Chrome Alloy Die Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
2.5 Inch Chrome Alloy die spring
| Label | Value |
|---|---|
| Average Life Deflection Force | 58 lb |
| Brand | Century Spring |
| Deflection For Average Life | 0.5 in |
| Deflection For Long Life | 0.63 in |
| Display Name | D-1218 |
| Duty Load | Medium |
| Finish | None |
| Finish Color | Red |
| Free Length | 2.5 in |
| Hole Size | 0.625 in |
| Long Life Deflection Force | 72 lb |
| Material | Chrome Alloy |
| Maximum Deflection | 0.93 in |
| Maximum Deflection Force | 106 lb |
| Measurement Units | Standard |
| Rate | 115 lbs/in |
| Rod Size | 0.3428 in |
| SKU | D-1218CS |
| Wire Diameter | 0.117 in x 0.081 in |
| Label | Value |
|---|---|
| Average Life Deflection Force | 26.3 kg |
| Brand | Century Spring |
| Deflection For Average Life | 12.7 mm |
| Deflection For Long Life | 16 mm |
| Display Name | D-1218 |
| Duty Load | Medium |
| Finish | None |
| Finish Color | Red |
| Free Length | 63.5 mm |
| Hole Size | 15.88 mm |
| Long Life Deflection Force | 32.65 kg |
| Material | Chrome Alloy |
| Maximum Deflection | 23.62 mm |
| Maximum Deflection Force | 48.07 kg |
| Measurement Units | Standard |
| Rate | 20.14 N/mm |
| Rod Size | 8.71 mm |
| SKU | D-1218CS |
| Wire Diameter | 2.97 mm x 2.06 mm |
