Century Spring

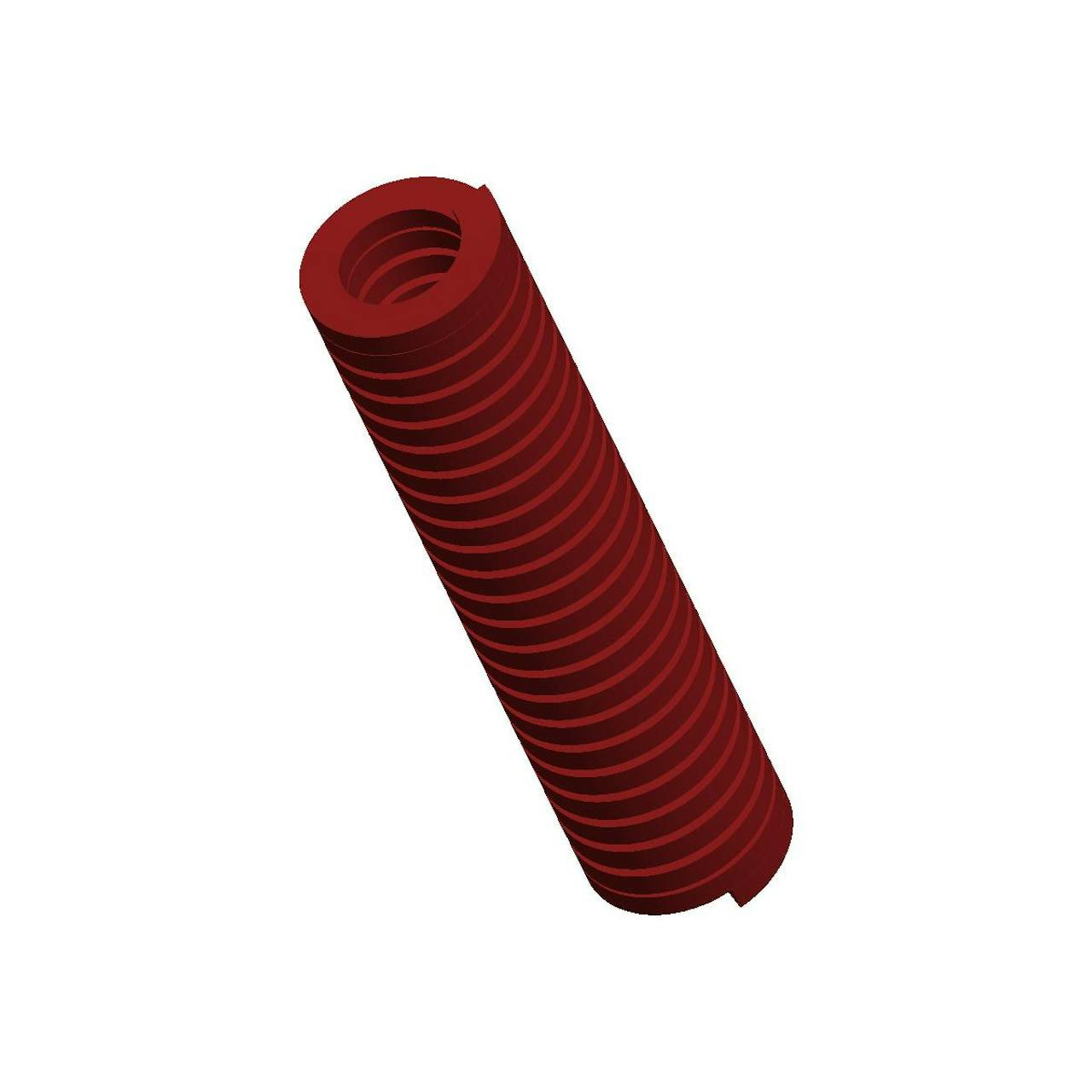

D-1203-ACS - 1.75 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.75 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 20 lb
Brand Century Spring
Deflection For Average Life 0.35 in
Deflection For Long Life 0.44 in
Display Name D-1203-A
Duty Load Medium
Finish None
Finish Color Red
Free Length 1.75 in
Hole Size 0.375 in
Long Life Deflection Force 25 lb
Material Chrome Alloy
Maximum Deflection 0.65 in
Maximum Deflection Force 38 lb
Measurement Units Standard
Rate 58 lbs/in
Rod Size 0.1875 in
SKU D-1203-ACS
Wire Diameter 0.067 in x 0.046 in
Specs (in metric)
Label Value
Average Life Deflection Force 9.07 kg
Brand Century Spring
Deflection For Average Life 8.89 mm
Deflection For Long Life 11.18 mm
Display Name D-1203-A
Duty Load Medium
Finish None
Finish Color Red
Free Length 44.45 mm
Hole Size 9.53 mm
Long Life Deflection Force 11.34 kg
Material Chrome Alloy
Maximum Deflection 16.51 mm
Maximum Deflection Force 17.23 kg
Measurement Units Standard
Rate 10.16 N/mm
Rod Size 4.76 mm
SKU D-1203-ACS
Wire Diameter 1.7 mm x 1.17 mm
