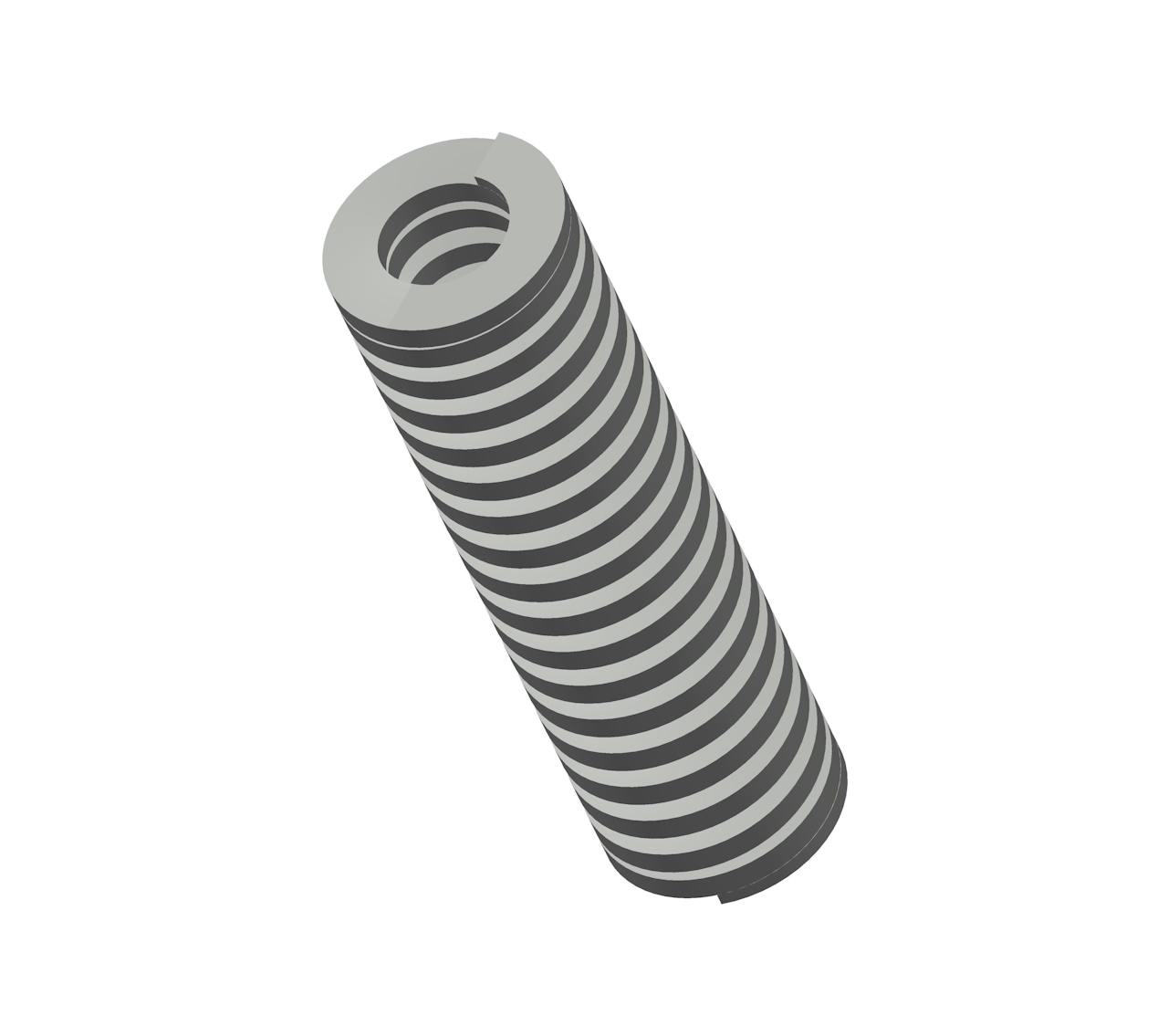

D-118CS - 7 Inch Oil Tempered Die Spring

Inventory:
Estimated Lead Time

7 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 826 lb
Brand Century Spring
Deflection For Average Life 1.75 in
Display Name D-118
Duty Load Medium
Finish None
Free Length 7 in
Hole Size 2 in
Material Oil Tempered
Maximum Deflection 2.8 in
Maximum Deflection Force 1322 lb
Measurement Units Standard
Rate 472 lbs/in
Rod Size 1 in
SKU D-118CS
Wire Diameter 0.438 in x 0.219 in
Specs (in metric)
Label Value
Average Life Deflection Force 374.6 kg
Brand Century Spring
Deflection For Average Life 44.45 mm
Display Name D-118
Duty Load Medium
Finish None
Free Length 177.8 mm
Hole Size 50.8 mm
Material Oil Tempered
Maximum Deflection 71.12 mm
Maximum Deflection Force 599.55 kg
Measurement Units Standard
Rate 82.65 N/mm
Rod Size 25.4 mm
SKU D-118CS
Wire Diameter 11.13 mm x 5.56 mm
