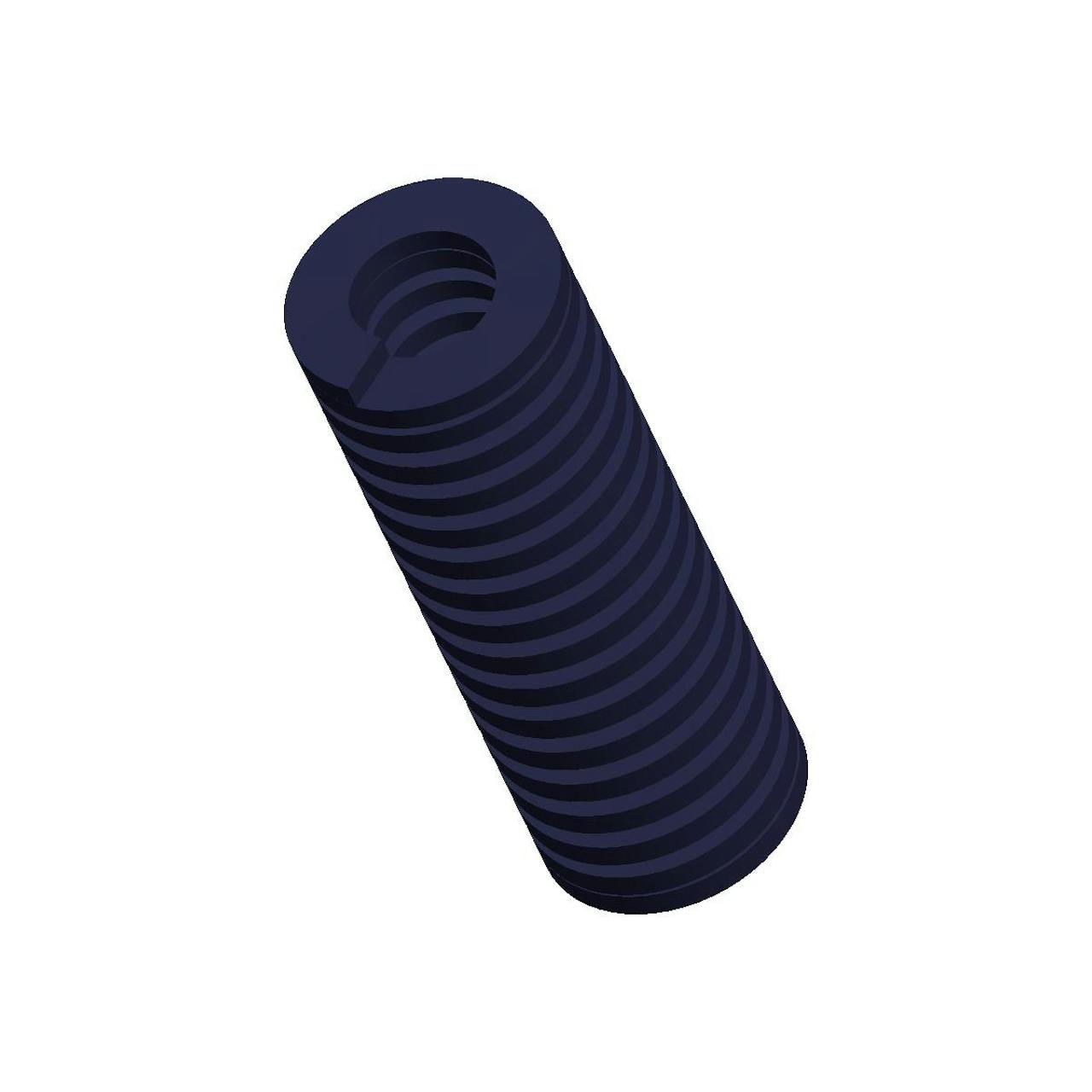

D-1179CS - 7 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

7 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 874 lb
Brand Century Spring
Deflection For Average Life 2.8 in
Deflection For Long Life 1.75 in
Display Name D-1179
Duty Load Light
Finish None
Finish Color Blue
Free Length 7 in
Hole Size 2 in
Long Life Deflection Force 546 lb
Material Chrome Alloy
Maximum Deflection 3.5 in
Maximum Deflection Force 1092 lb
Measurement Units Standard
Rate 312 lbs/in
Rod Size 1 in
SKU D-1179CS
Wire Diameter 0.468 in x 0.195 in
Specs (in metric)
Label Value
Average Life Deflection Force 396.37 kg
Brand Century Spring
Deflection For Average Life 71.12 mm
Deflection For Long Life 44.45 mm
Display Name D-1179
Duty Load Light
Finish None
Finish Color Blue
Free Length 177.8 mm
Hole Size 50.8 mm
Long Life Deflection Force 247.62 kg
Material Chrome Alloy
Maximum Deflection 88.9 mm
Maximum Deflection Force 495.24 kg
Measurement Units Standard
Rate 54.63 N/mm
Rod Size 25.4 mm
SKU D-1179CS
Wire Diameter 11.89 mm x 4.95 mm
