Century Spring

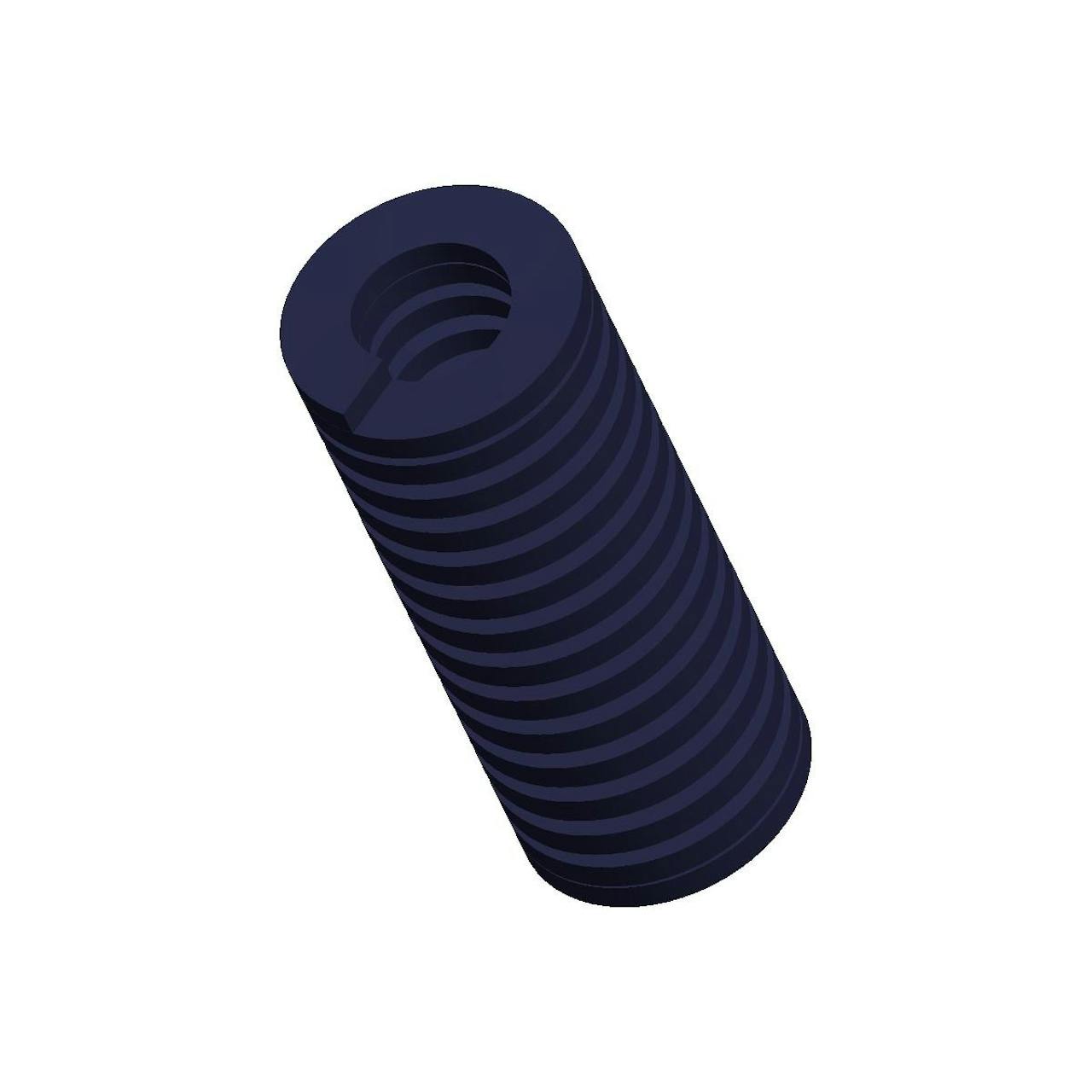

D-1178CS - 6 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

6 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 845 lb
Brand Century Spring
Deflection For Average Life 2.4 in
Deflection For Long Life 1.5 in
Display Name D-1178
Duty Load Light
Finish None
Finish Color Blue
Free Length 6 in
Hole Size 2 in
Long Life Deflection Force 528 lb
Material Chrome Alloy
Maximum Deflection 3 in
Maximum Deflection Force 1056 lb
Measurement Units Standard
Rate 352 lbs/in
Rod Size 1 in
SKU D-1178CS
Wire Diameter 0.468 in x 0.195 in
Specs (in metric)
Label Value
Average Life Deflection Force 383.22 kg
Brand Century Spring
Deflection For Average Life 60.96 mm
Deflection For Long Life 38.1 mm
Display Name D-1178
Duty Load Light
Finish None
Finish Color Blue
Free Length 152.4 mm
Hole Size 50.8 mm
Long Life Deflection Force 239.46 kg
Material Chrome Alloy
Maximum Deflection 76.2 mm
Maximum Deflection Force 478.91 kg
Measurement Units Standard
Rate 61.64 N/mm
Rod Size 25.4 mm
SKU D-1178CS
Wire Diameter 11.89 mm x 4.95 mm
