Century Spring

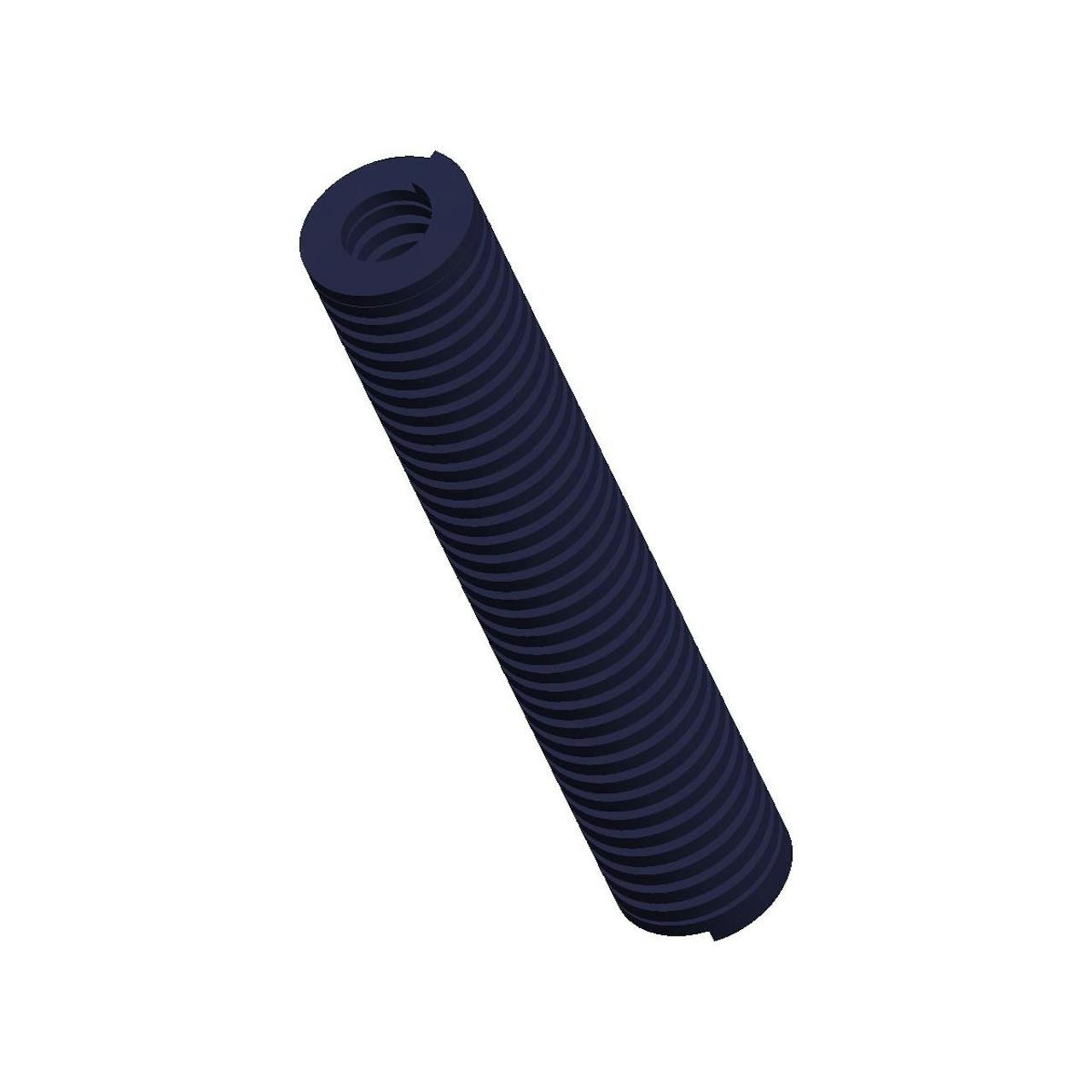

D-1170CS - 10 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

10 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 352 lb
Brand Century Spring
Deflection For Average Life 4 in
Deflection For Long Life 2.5 in
Display Name D-1170
Duty Load Light
Finish None
Finish Color Blue
Free Length 10 in
Hole Size 1.5 in
Long Life Deflection Force 220 lb
Material Chrome Alloy
Maximum Deflection 5 in
Maximum Deflection Force 440 lb
Measurement Units Standard
Rate 88 lbs/in
Rod Size 0.75 in
SKU D-1170CS
Wire Diameter 0.345 in x 0.135 in
Specs (in metric)
Label Value
Average Life Deflection Force 159.64 kg
Brand Century Spring
Deflection For Average Life 101.6 mm
Deflection For Long Life 63.5 mm
Display Name D-1170
Duty Load Light
Finish None
Finish Color Blue
Free Length 254 mm
Hole Size 38.1 mm
Long Life Deflection Force 99.77 kg
Material Chrome Alloy
Maximum Deflection 127 mm
Maximum Deflection Force 199.55 kg
Measurement Units Standard
Rate 15.41 N/mm
Rod Size 19.05 mm
SKU D-1170CS
Wire Diameter 8.76 mm x 3.43 mm
