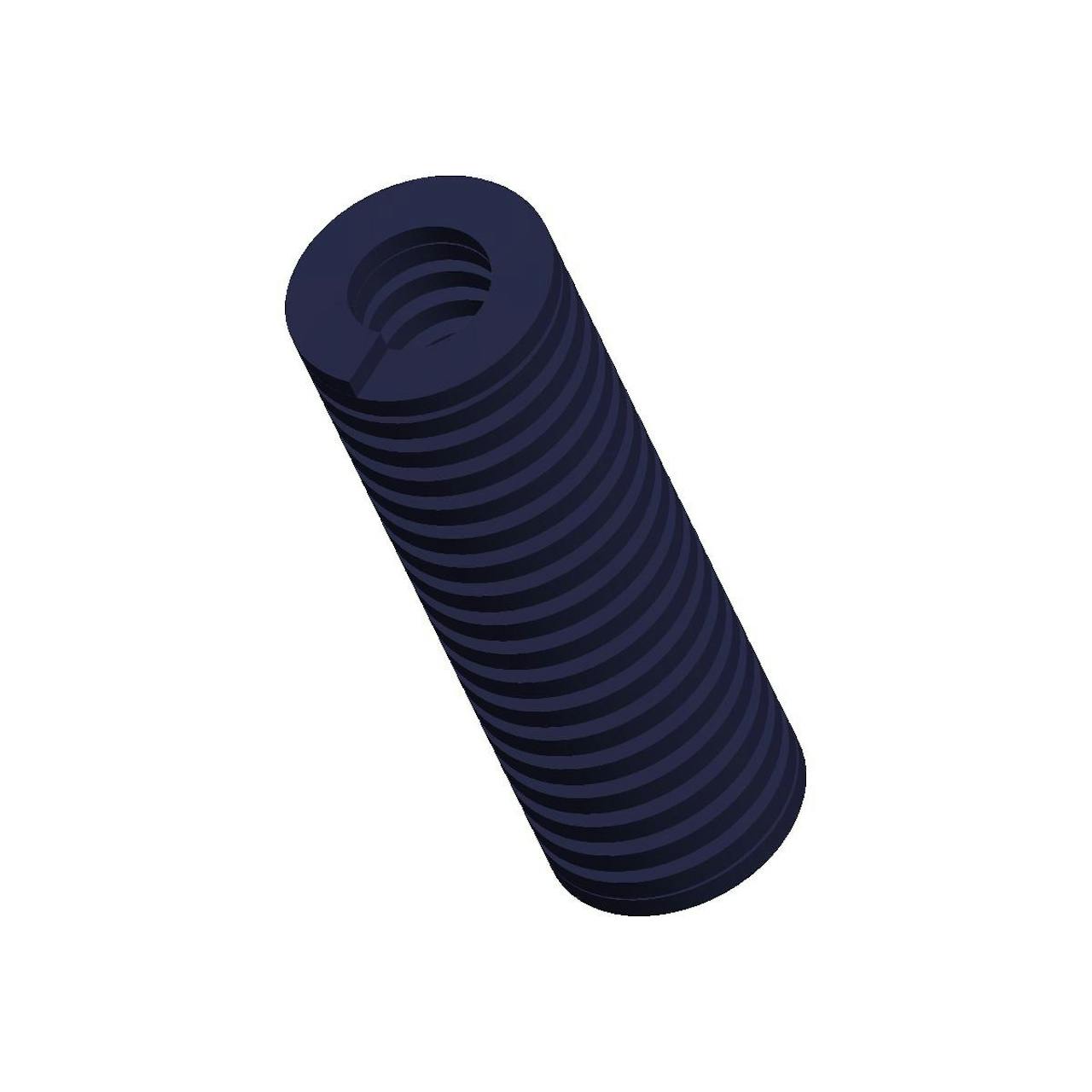

D-1166CS - 5.5 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

5.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 357.1 lb
Brand Century Spring
Deflection For Average Life 1.93 in
Deflection For Long Life 1.38 in
Display Name D-1166
Duty Load Light
Finish None
Finish Color Blue
Free Length 5.5 in
Hole Size 1.5 in
Long Life Deflection Force 255.3 lb
Material Chrome Alloy
Maximum Deflection 2.75 in
Maximum Deflection Force 462 lb
Measurement Units Standard
Rate 185 lbs/in
Rod Size 0.75 in
SKU D-1166CS
Wire Diameter 0.345 in x 0.135 in
Specs (in metric)
Label Value
Average Life Deflection Force 161.95 kg
Brand Century Spring
Deflection For Average Life 49.02 mm
Deflection For Long Life 35.05 mm
Display Name D-1166
Duty Load Light
Finish None
Finish Color Blue
Free Length 139.7 mm
Hole Size 38.1 mm
Long Life Deflection Force 115.78 kg
Material Chrome Alloy
Maximum Deflection 69.85 mm
Maximum Deflection Force 209.52 kg
Measurement Units Standard
Rate 32.39 N/mm
Rod Size 19.05 mm
SKU D-1166CS
Wire Diameter 8.76 mm x 3.43 mm
