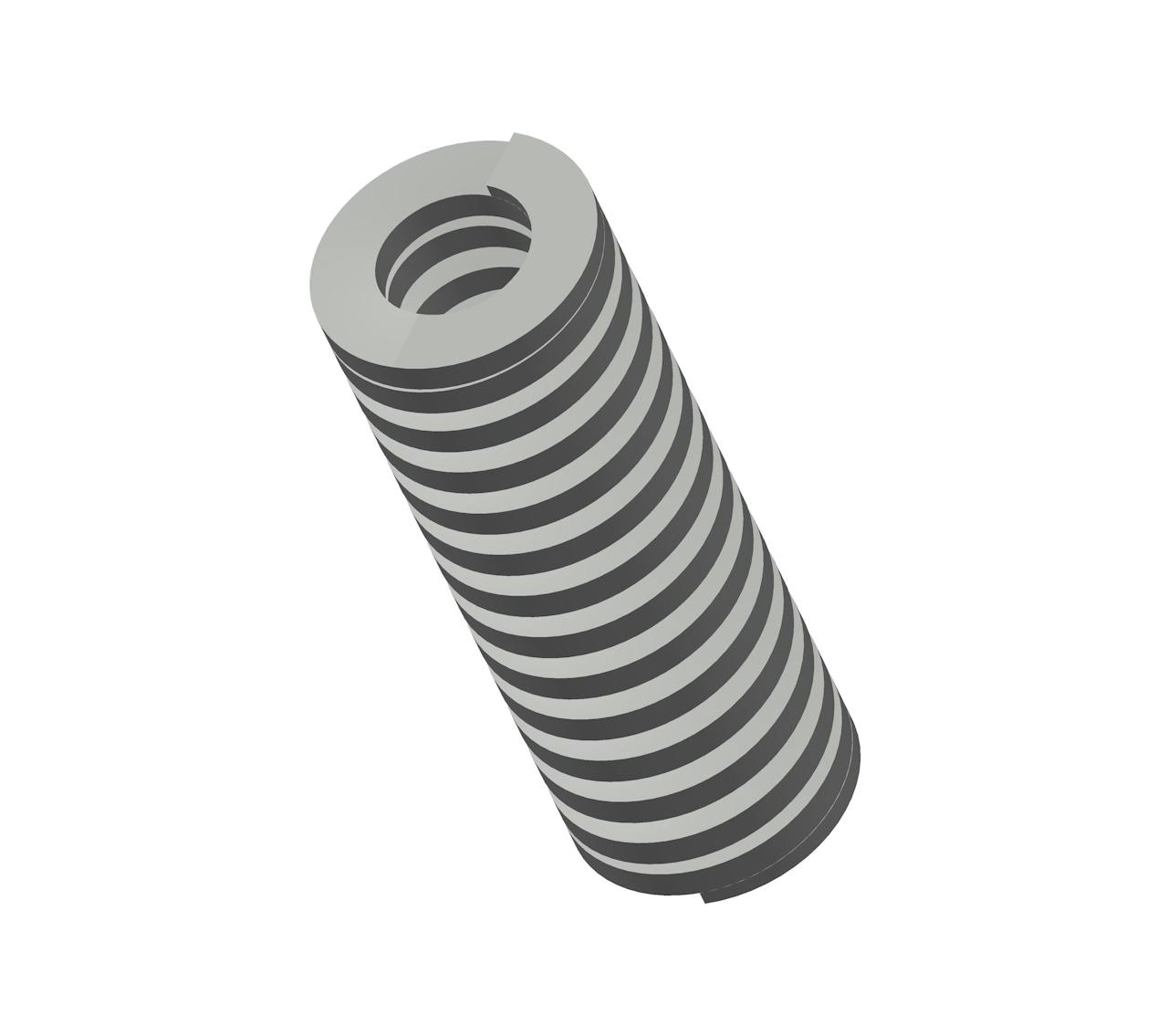

D-115CS - 5.5 Inch Oil Tempered Die Spring

Inventory:
Estimated Lead Time

5.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 880 lb
Brand Century Spring
Deflection For Average Life 1.38 in
Display Name D-115
Duty Load Medium
Finish None
Free Length 5.5 in
Hole Size 2 in
Material Oil Tempered
Maximum Deflection 2.2 in
Maximum Deflection Force 1408 lb
Measurement Units Standard
Rate 640 lbs/in
Rod Size 1 in
SKU D-115CS
Wire Diameter 0.438 in x 0.219 in
Specs (in metric)
Label Value
Average Life Deflection Force 399.09 kg
Brand Century Spring
Deflection For Average Life 35.05 mm
Display Name D-115
Duty Load Medium
Finish None
Free Length 139.7 mm
Hole Size 50.8 mm
Material Oil Tempered
Maximum Deflection 55.88 mm
Maximum Deflection Force 638.55 kg
Measurement Units Standard
Rate 112.06 N/mm
Rod Size 25.4 mm
SKU D-115CS
Wire Diameter 11.13 mm x 5.56 mm
