Century Spring

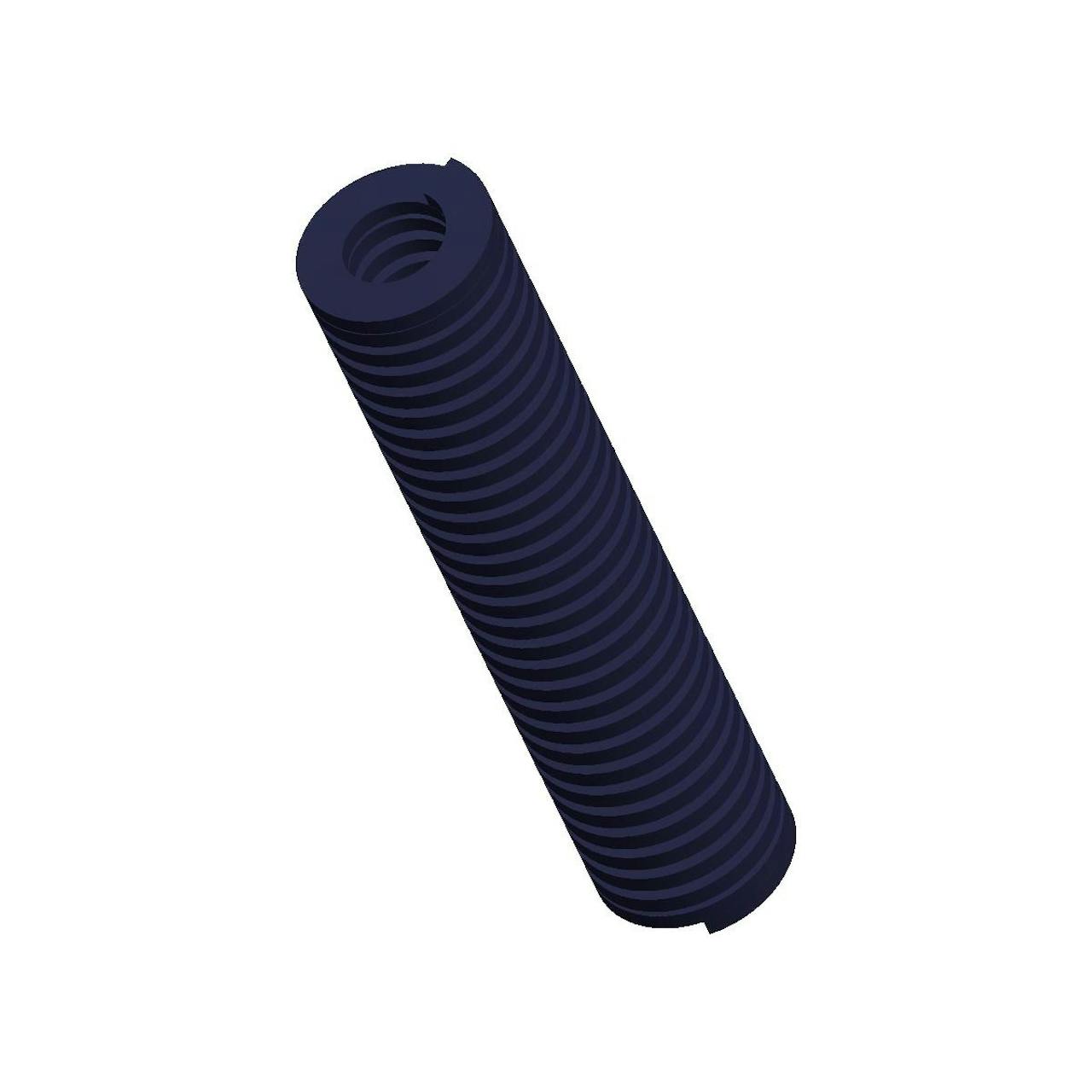

D-1156CS - 7 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

7 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 291 lb
Brand Century Spring
Deflection For Average Life 2.8 in
Deflection For Long Life 1.75 in
Display Name D-1156
Duty Load Light
Finish None
Finish Color Blue
Free Length 7 in
Hole Size 1.25 in
Long Life Deflection Force 182 lb
Material Chrome Alloy
Maximum Deflection 3.5 in
Maximum Deflection Force 364 lb
Measurement Units Standard
Rate 104 lbs/in
Rod Size 0.625 in
SKU D-1156CS
Wire Diameter 0.285 in x 0.115 in
Specs (in metric)
Label Value
Average Life Deflection Force 131.97 kg
Brand Century Spring
Deflection For Average Life 71.12 mm
Deflection For Long Life 44.45 mm
Display Name D-1156
Duty Load Light
Finish None
Finish Color Blue
Free Length 177.8 mm
Hole Size 31.75 mm
Long Life Deflection Force 82.54 kg
Material Chrome Alloy
Maximum Deflection 88.9 mm
Maximum Deflection Force 165.08 kg
Measurement Units Standard
Rate 18.21 N/mm
Rod Size 15.88 mm
SKU D-1156CS
Wire Diameter 7.24 mm x 2.92 mm
