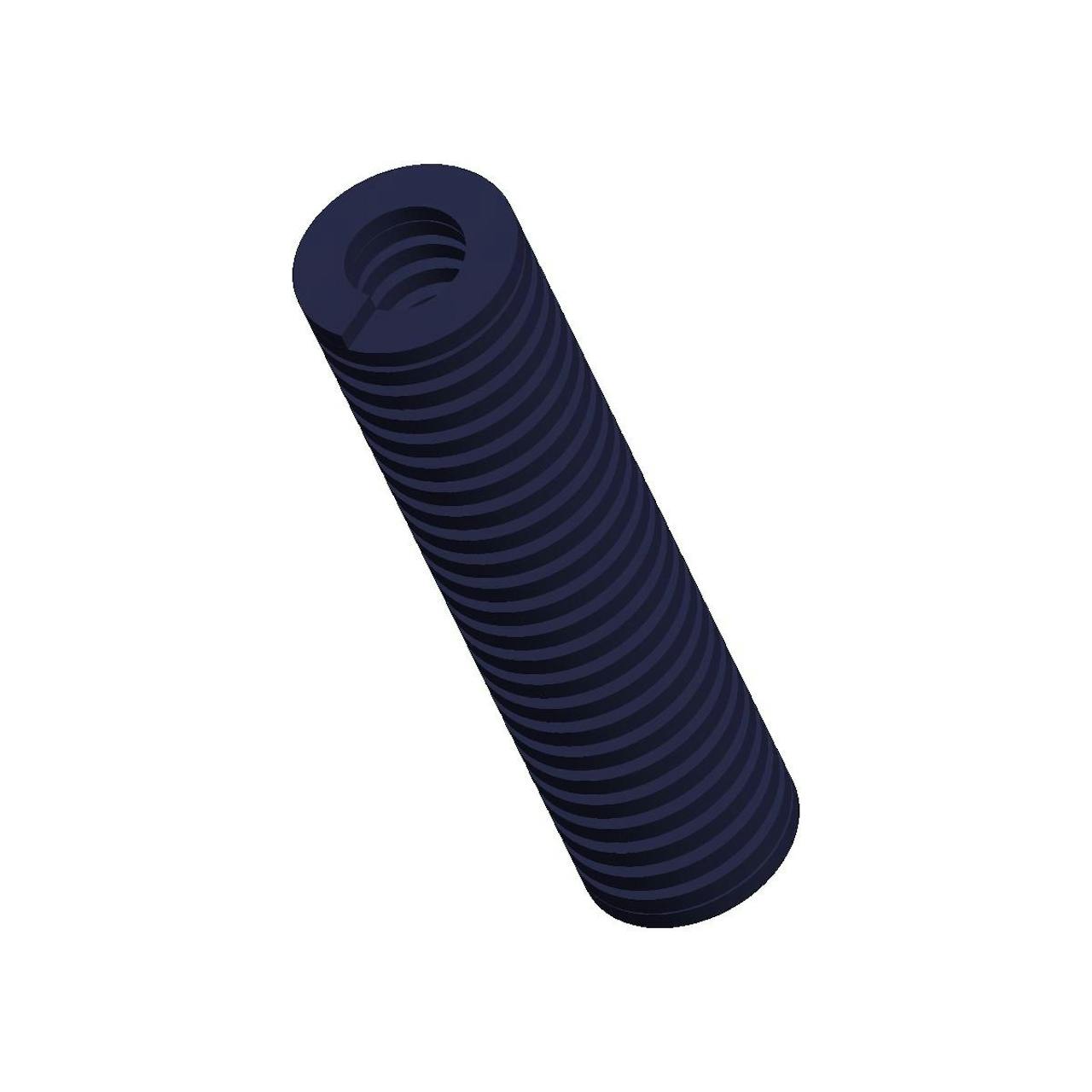

D-1155CS - 6 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

6 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 288 lb
Brand Century Spring
Deflection For Average Life 2.4 in
Deflection For Long Life 1.5 in
Display Name D-1155
Duty Load Light
Finish None
Finish Color Blue
Free Length 6 in
Hole Size 1.25 in
Long Life Deflection Force 180 lb
Material Chrome Alloy
Maximum Deflection 3 in
Maximum Deflection Force 360 lb
Measurement Units Standard
Rate 120 lbs/in
Rod Size 0.625 in
SKU D-1155CS
Wire Diameter 0.285 in x 0.115 in
Specs (in metric)
Label Value
Average Life Deflection Force 130.61 kg
Brand Century Spring
Deflection For Average Life 60.96 mm
Deflection For Long Life 38.1 mm
Display Name D-1155
Duty Load Light
Finish None
Finish Color Blue
Free Length 152.4 mm
Hole Size 31.75 mm
Long Life Deflection Force 81.63 kg
Material Chrome Alloy
Maximum Deflection 76.2 mm
Maximum Deflection Force 163.27 kg
Measurement Units Standard
Rate 21.01 N/mm
Rod Size 15.88 mm
SKU D-1155CS
Wire Diameter 7.24 mm x 2.92 mm
