Century Spring

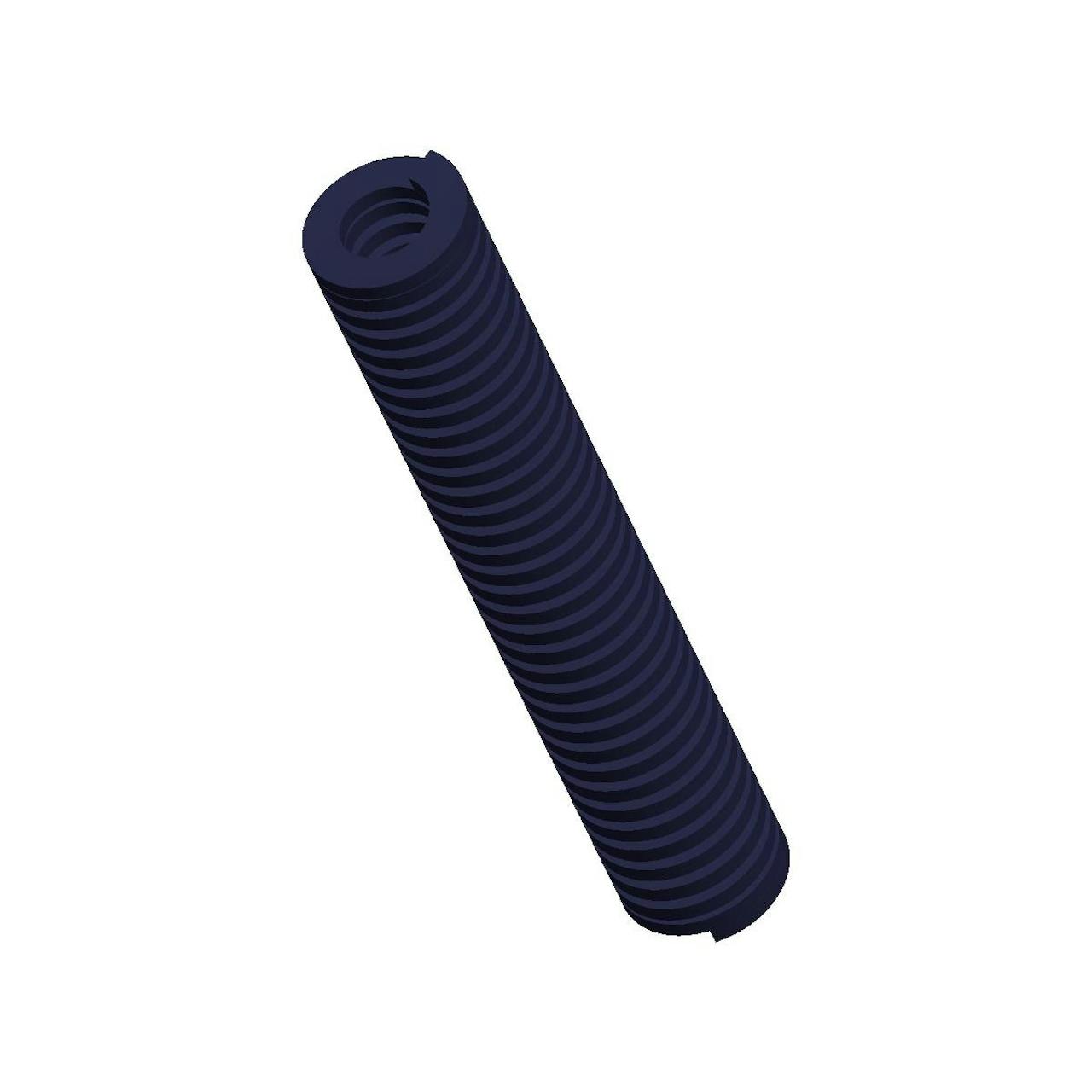

D-1144CS - 7 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

7 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 202 lb
Brand Century Spring
Deflection For Average Life 2.8 in
Deflection For Long Life 1.75 in
Display Name D-1144
Duty Load Light
Finish None
Finish Color Blue
Free Length 7 in
Hole Size 1 in
Long Life Deflection Force 126 lb
Material Chrome Alloy
Maximum Deflection 3.5 in
Maximum Deflection Force 252 lb
Measurement Units Standard
Rate 72 lbs/in
Rod Size 0.5 in
SKU D-1144CS
Wire Diameter 0.215 in x 0.1 in
Specs (in metric)
Label Value
Average Life Deflection Force 91.61 kg
Brand Century Spring
Deflection For Average Life 71.12 mm
Deflection For Long Life 44.45 mm
Display Name D-1144
Duty Load Light
Finish None
Finish Color Blue
Free Length 177.8 mm
Hole Size 25.4 mm
Long Life Deflection Force 57.14 kg
Material Chrome Alloy
Maximum Deflection 88.9 mm
Maximum Deflection Force 114.29 kg
Measurement Units Standard
Rate 12.61 N/mm
Rod Size 12.7 mm
SKU D-1144CS
Wire Diameter 5.46 mm x 2.54 mm
