Century Spring

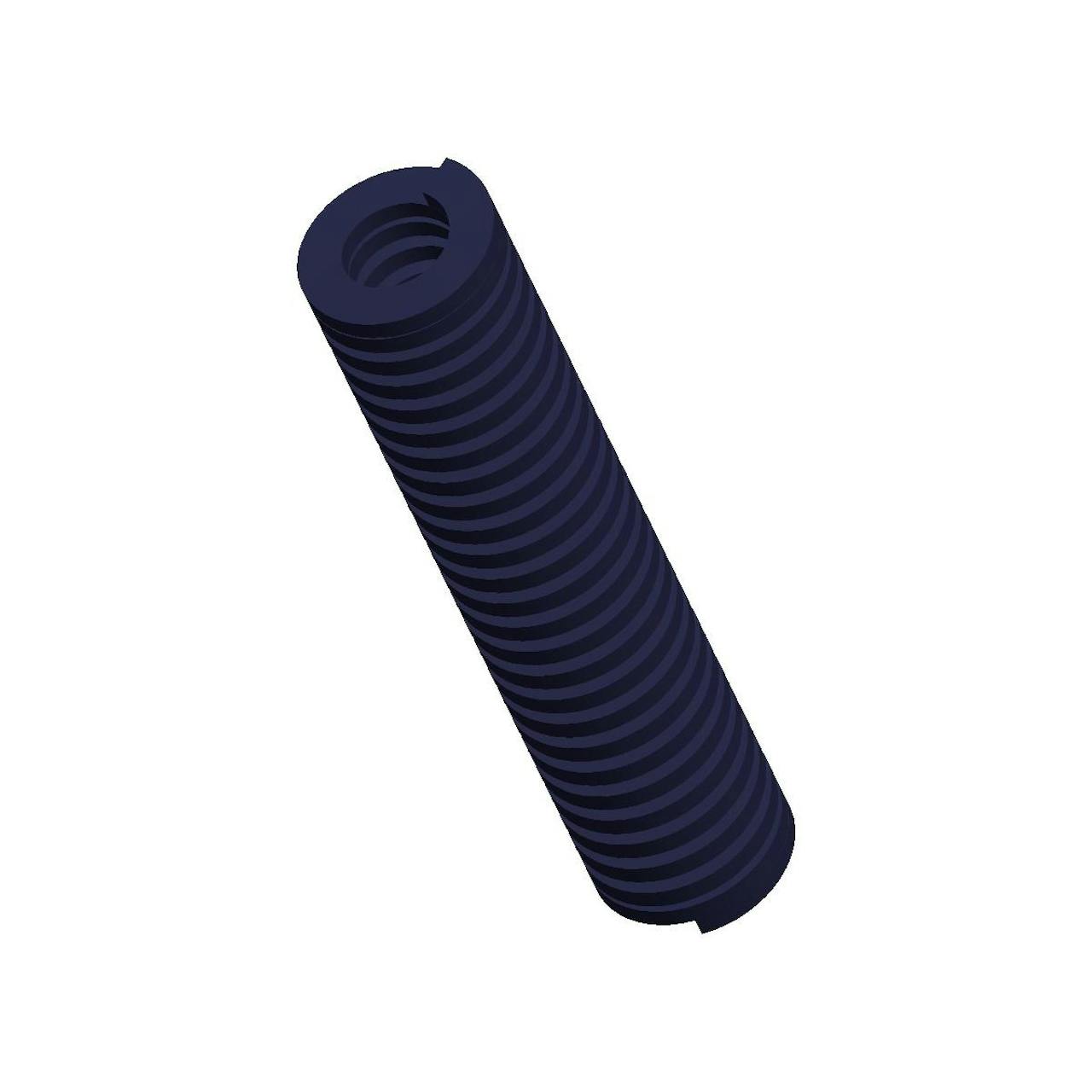

D-1142CS - 5.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

5.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 194 lb
Brand Century Spring
Deflection For Average Life 2.2 in
Deflection For Long Life 1.38 in
Display Name D-1142
Duty Load Light
Finish None
Finish Color Blue
Free Length 5.5 in
Hole Size 1 in
Long Life Deflection Force 121 lb
Material Chrome Alloy
Maximum Deflection 2.75 in
Maximum Deflection Force 242 lb
Measurement Units Standard
Rate 88 lbs/in
Rod Size 0.5 in
SKU D-1142CS
Wire Diameter 0.215 in x 0.1 in
Specs (in metric)
Label Value
Average Life Deflection Force 87.98 kg
Brand Century Spring
Deflection For Average Life 55.88 mm
Deflection For Long Life 35.05 mm
Display Name D-1142
Duty Load Light
Finish None
Finish Color Blue
Free Length 139.7 mm
Hole Size 25.4 mm
Long Life Deflection Force 54.88 kg
Material Chrome Alloy
Maximum Deflection 69.85 mm
Maximum Deflection Force 109.75 kg
Measurement Units Standard
Rate 15.41 N/mm
Rod Size 12.7 mm
SKU D-1142CS
Wire Diameter 5.46 mm x 2.54 mm
