Century Spring

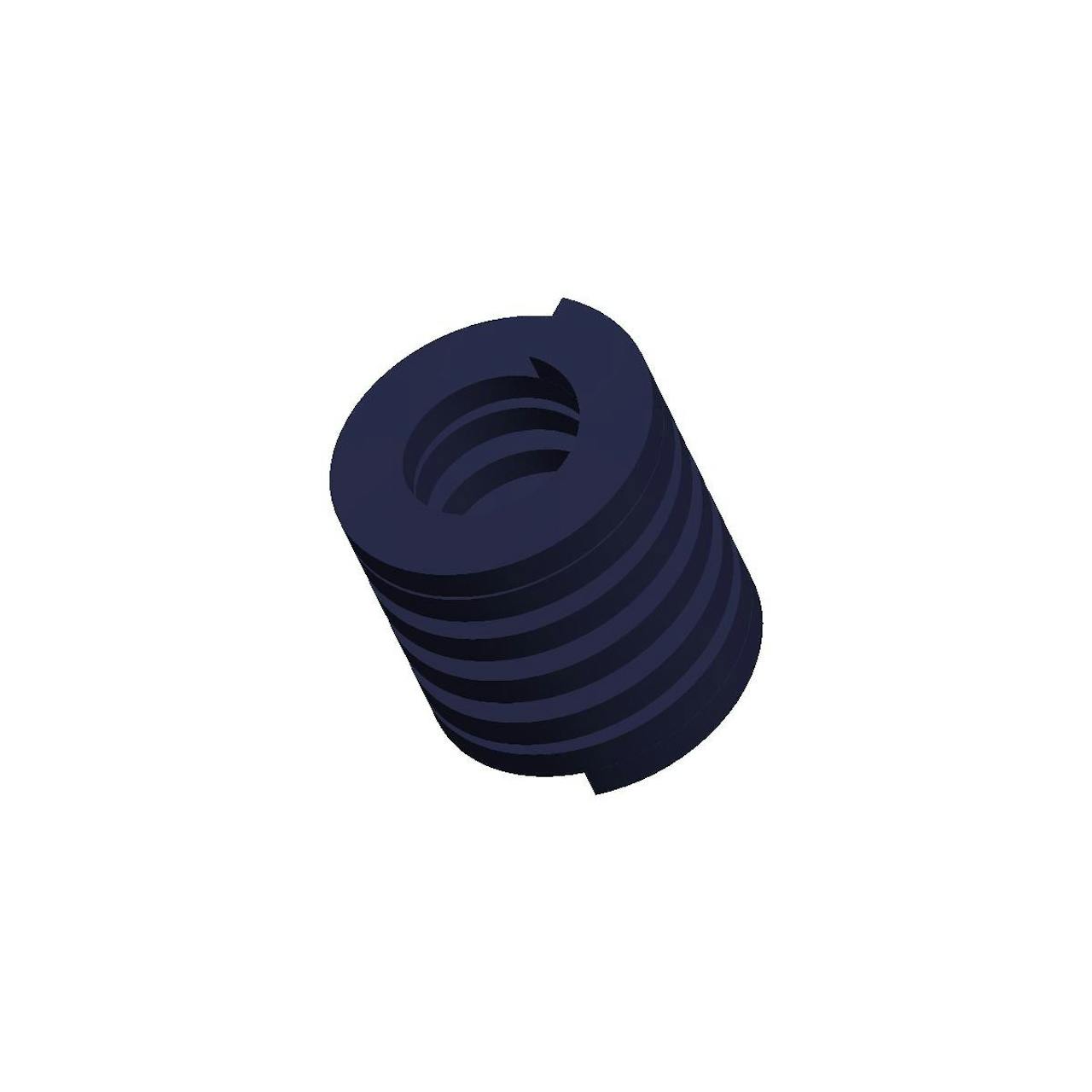

D-1133-ACS - 1.25 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.25 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 218 lb
Brand Century Spring
Deflection For Average Life 0.5 in
Deflection For Long Life 0.31 in
Display Name D-1133-A
Duty Load Light
Finish None
Finish Color Blue
Free Length 1.25 in
Hole Size 1 in
Long Life Deflection Force 136 lb
Material Chrome Alloy
Maximum Deflection 0.63 in
Maximum Deflection Force 273 lb
Measurement Units Standard
Rate 436 lbs/in
Rod Size 0.5 in
SKU D-1133-ACS
Wire Diameter 0.215 in x 0.1 in
Specs (in metric)
Label Value
Average Life Deflection Force 98.87 kg
Brand Century Spring
Deflection For Average Life 12.7 mm
Deflection For Long Life 7.87 mm
Display Name D-1133-A
Duty Load Light
Finish None
Finish Color Blue
Free Length 31.75 mm
Hole Size 25.4 mm
Long Life Deflection Force 61.68 kg
Material Chrome Alloy
Maximum Deflection 16 mm
Maximum Deflection Force 123.81 kg
Measurement Units Standard
Rate 76.34 N/mm
Rod Size 12.7 mm
SKU D-1133-ACS
Wire Diameter 5.46 mm x 2.54 mm
