Century Spring

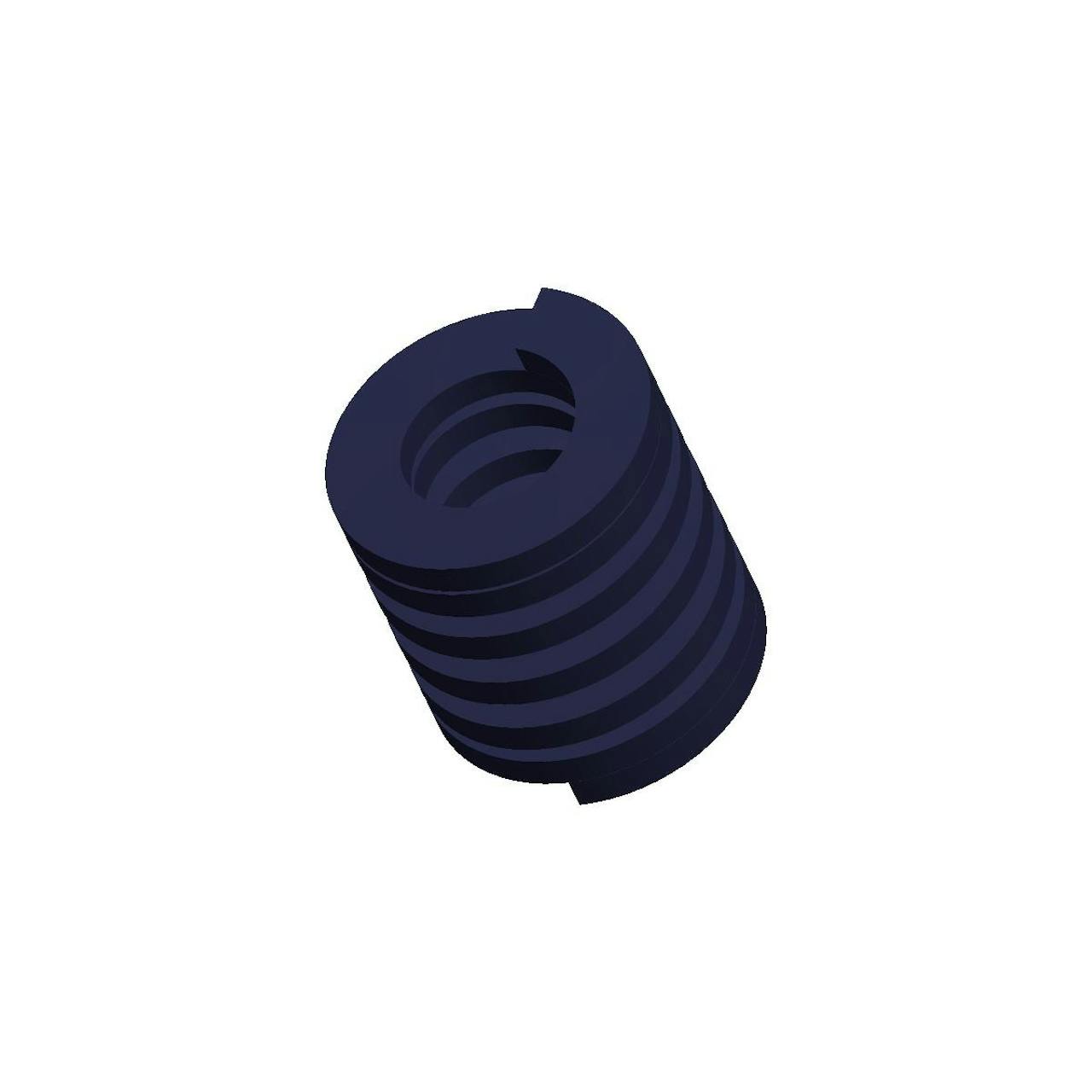

D-1122CS - 1 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 125 lb
Brand Century Spring
Deflection For Average Life 0.4 in
Deflection For Long Life 0.25 in
Display Name D-1122
Duty Load Light
Finish None
Finish Color Blue
Free Length 1 in
Hole Size 0.75 in
Long Life Deflection Force 78 lb
Material Chrome Alloy
Maximum Deflection 0.5 in
Maximum Deflection Force 156 lb
Measurement Units Standard
Rate 312 lbs/in
Rod Size 0.375 in
SKU D-1122CS
Wire Diameter 0.165 in x 0.075 in
Specs (in metric)
Label Value
Average Life Deflection Force 56.69 kg
Brand Century Spring
Deflection For Average Life 10.16 mm
Deflection For Long Life 6.35 mm
Display Name D-1122
Duty Load Light
Finish None
Finish Color Blue
Free Length 25.4 mm
Hole Size 19.05 mm
Long Life Deflection Force 35.37 kg
Material Chrome Alloy
Maximum Deflection 12.7 mm
Maximum Deflection Force 70.75 kg
Measurement Units Standard
Rate 54.63 N/mm
Rod Size 9.53 mm
SKU D-1122CS
Wire Diameter 4.19 mm x 1.91 mm
